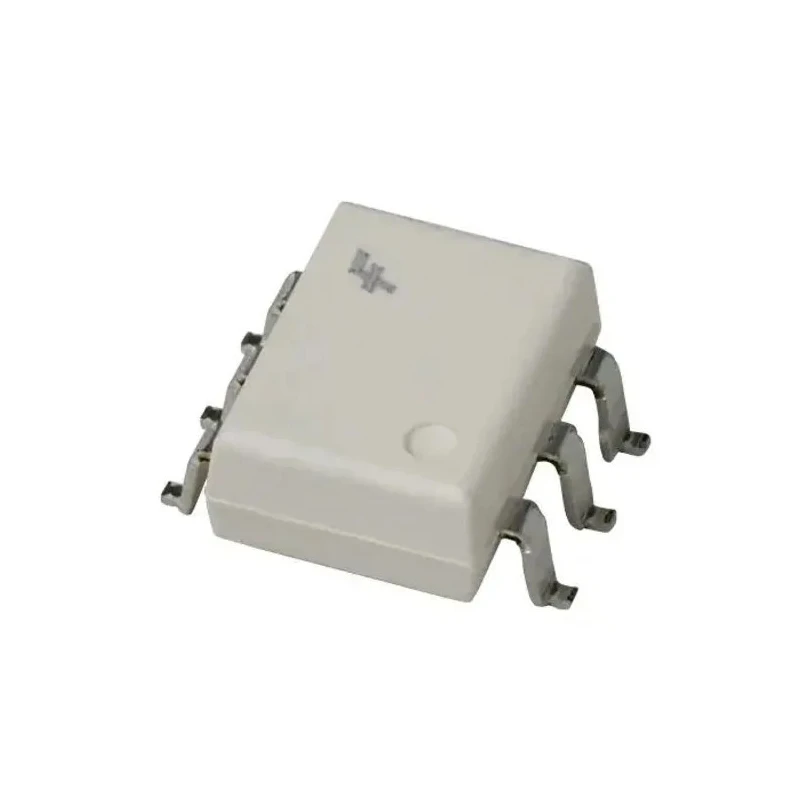

onsemi Optocoupler, Surface Mount, 6-Pin SMT Package, 1 Channel, 60mA Input Current CNY173SM
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Model | CNY173SM |
| Mount Type | Surface |
| Series | CNY |
| Maximum Operating Temperature | 100°C |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Standards/Approvals | UL, IEC, EN |
| Maximum Forward Voltage | 1.65V |
| Number of Pins | 6 |
| Typical Rise Time | 6μs |
| Maximum Current Transfer Ratio | 2% |
| Typical Fall Time | 24μs |
| Minimum Current Transfer Ratio | 100% |
| High BVCEO | 70 V Minimum (CNY17XM, CNY17FXM, MOC8106M) |
Key Features
- Designed for surface mounting technology (SMT) applications.
- Contains one optocoupler channel for signal isolation.
- Maximum input current rating of 60 mA for efficient operation.
- Typical rise time of 6 microseconds enhancing switching speed.
- Operating temperature range from -40°C to 100°C for industrial reliability.
- Maximum forward voltage of 1.65 volts ensures low voltage drop.
- Compliance with UL, IEC, and EN standards for safety and quality assurance.
- Package designed with 6 pins for easy PCB integration.
Product Description
onsemi CNY173SM Optocoupler is a surface mount device designed with a 6-pin SMT package and a single optocoupler channel. Operating with a maximum input current of 60 mA and a maximum forward voltage of 1.65 V, this component is optimized for efficient electrical signal isolation in electronic circuits.
This optocoupler features typical rise and fall times of 6 μs and 24 μs respectively, making it suitable for applications requiring moderate switching speeds. The device operates reliably within a temperature range of -40°C to 100°C, ensuring durability in diverse industrial environments.
Compliant with UL, IEC, and EN standards, the CNY173SM ensures high safety and manufacturing quality. The component includes a 6-pin surface mount design, facilitating straightforward PCB assembly in compact electronic designs.
The minimum current transfer ratio is rated at 100%, guaranteeing effective signal transfer, while the maximum current transfer ratio is 2%, maintaining stable performance. Although not specified for automotive use, this optocoupler is ideal for industrial, commercial, and laboratory electronic applications.
Key applications include electrical isolation in power supplies, signal transmission circuits, and noise reduction in sensitive electronics. The optocoupler's package and pin configuration make it a suitable choice for surface-mount technology production lines.
Designed for surface mounting technology (SMT) applications. Contains one optocoupler channel for signal isolation. Maximum input current rating of 60 mA for efficient operation. Typical rise time of 6 microseconds enhancing switching speed.
Operating temperature range from -40°C to 100°C for industrial reliability. Maximum forward voltage of 1.65 volts ensures low voltage drop. Compliance with UL, IEC, and EN standards for safety and quality assurance. Package designed with 6 pins for easy PCB integration.
Minimum current transfer ratio rated at 100% for consistent performance. Discover more electronic components and Optocouplers from top manufacturers in our Electronics & Electricals category at EnvMart for your industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the CNY173SM optocoupler is 60 mA.
The typical rise time of the CNY173SM optocoupler is 6 microseconds.
This optocoupler operates within a temperature range of -40°C to 100°C.
The CNY173SM features one optocoupler channel for signal isolation.
The CNY173SM complies with UL, IEC, and EN standards for safety and quality assurance.
The maximum forward voltage for this model is 1.65 volts, ensuring low voltage drop.
The typical fall time of the CNY173SM is 24 microseconds.
The CNY173SM comes in a surface mount (SMT) package with 6 pins.
The minimum current transfer ratio for the CNY173SM is rated at 100%.
This optocoupler is suitable for applications such as electrical isolation in power supplies and signal transmission circuits.
The high BVCEO rating for this model is a minimum of 70 V.
The 6-pin design of the CNY173SM facilitates straightforward PCB assembly in compact electronic designs.
