Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 120 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8C

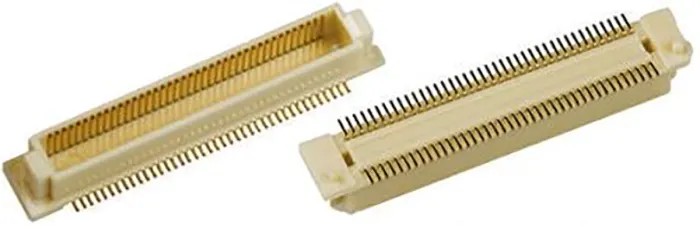

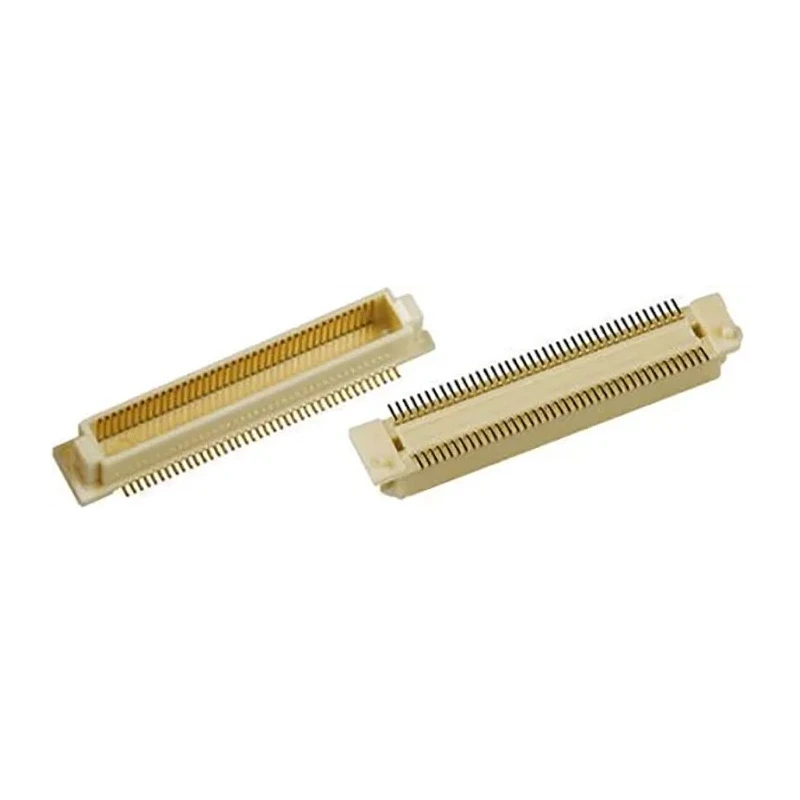

Hirose FX8C Series Straight Surface PCB Header model FX8C provides a high-performance board-to-board connector solution with 120 male contacts arranged in two rows at a 0.6 mm pitch. Designed for surface mount applications, this shrouded connector features a polyphenylene sulphide housing that ensures mechanical strength and thermal compatibility for various industrial environments.

This connector supports high-speed data transmission up to 3.125 Gbit/s, which is suitable for servers, broadcast equipment, industrial devices, medical instrumentation, and point-of-sale terminals. Its gold-plated phosphor bronze contacts maintain reliable electrical continuity under demanding operating conditions.

The built-in guide ribs provide a self-alignment tolerance of plus or minus 0.6 mm, facilitating accurate and easy mating. The connector's spring deflection contact design enhances mating reliability, while the two-row configuration supports compact and dense PCB layouts.

Operating temperature ranges from -55°C to 85°C, making it suitable for a wide range of environments. With a rated current capacity of 400 mA at 100 V, this Connector ensures robust electrical performance.

Package and mounting include surface mount technology (SMT) with precise coplanarity and alignment features, including guide posts with differing diameters to prevent misinsertion. The FX8C series connectors are not compatible with the FX8 series, maintaining specific application integrity.

High-speed transmission capability up to 3.125 Gbit/s. Polyphenylene sulphide housing material for durability and heat resistance. 120 gold-plated phosphor bronze contacts arranged in 2 rows. Surface mount type with 0.6 mm pitch and shrouded design.

Wide temperature range from -55°C to 85°C for industrial use. Self-alignment with built-in guide ribs allowing ±0.6 mm tolerance. Optimized spring deflection contact design for reliable mating. Rated for 100 V and 400 mA current capacity.

Suitable for servers, industrial, medical, and POS terminal applications. Includes alignment bosses and guide posts to aid PCB placement.

The Hirose FunctionMAX range of connectors is engineered for advancing industrial technology needs, focusing on superior signal integrity, ease of use, and reliability. Explore more connectors and components in the PCB Headers category at EnvMart to find the optimal parts for your electronics design and production requirements.
