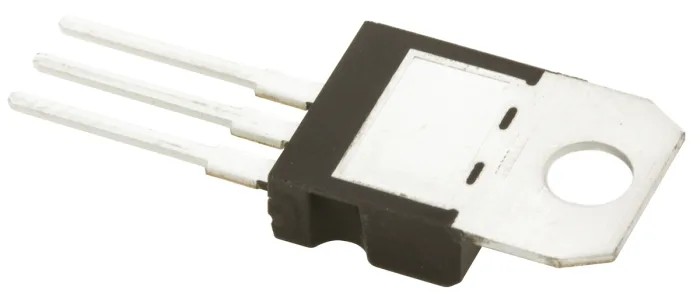

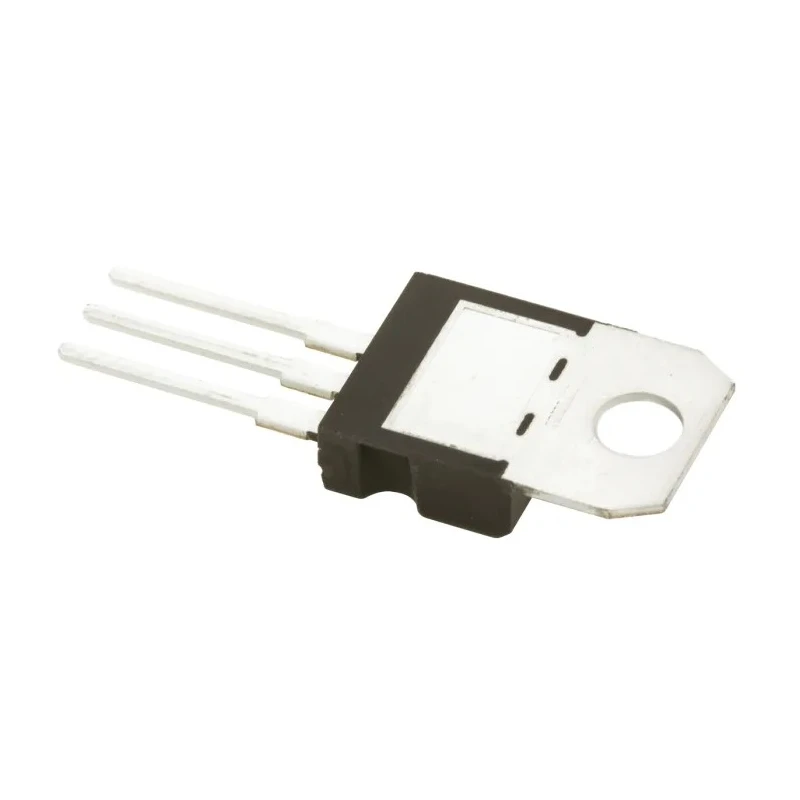

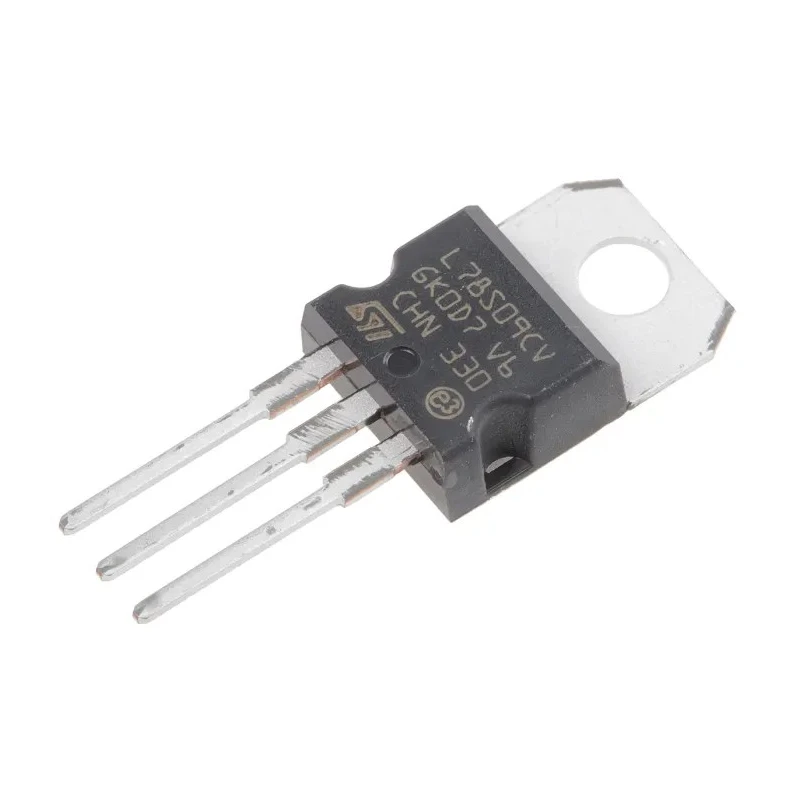

STMicroelectronics 1-Channel Linear Voltage Regulator 2A 9V TO-220 3-Pin L78S09CV
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | L78S09CV |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | L78Sxx |
| Output Current | 2A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Load Regulation | 170 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 35V |
| Output Voltage | 9V |
| Quiescent Current | 8mA |
| Line Regulation | 130 mV |
| Minimum Input Voltage | 12V |
| Pin Count | 3 |
Key Features
- Provides stable 9V fixed voltage output with high load and line regulation.
- Supports output current up to 2 amperes for moderate power applications.
- Designed with thermal shutdown and short circuit protection for robust operation.
- Operates within a temperature range of 0°C to 150°C for reliable performance.
- Features positive polarity and fixed output type for straightforward power management.
- Compact TO-220 package facilitates through-hole mounting on PCBs.
- Quiescent current is low at only 8mA to enhance efficiency.
- Input voltage range supported from 12V minimum up to 35V maximum.
Product Description
STMicroelectronics L78S09CV is a robust 1-Channel Linear Voltage Regulator providing a fixed 9V output voltage up to 2A current capacity. Encapsulated in a TO-220 3-pin package, this linear regulator is designed for use in power management IC applications across industrial, electronic, embedded, and manufacturing environments.
The device offers reliable fixed voltage regulation with excellent line (130 mV) and load regulation (170 mV), ensuring consistent output voltage under varying load currents and input supply fluctuations. Its built-in protection features include thermal shutdown and output transition Safe Operating Area (SOA) protection to safeguard against over-temperature and short circuit conditions.
Operating within a wide temperature range from 0°C to 150°C and input voltage up to 35V, the L78S09CV is suitable for diverse thermal and voltage conditions. The positive polarity and fixed output configuration enable straightforward integration in electronic power supply designs.
The regulator features a low quiescent current of 8mA, reducing wasted power and heat dissipation, with a compact footprint measuring 10.4mm in length, 9.15mm in height, and 4.6mm in width. The TO-220 package provides easy PCB through-hole mounting and effective heat dissipation.
This STMicroelectronics product is ideal for use in industrial automation equipment, embedded system power supplies, consumer electronics, manufacturing machinery, and laboratory instrumentation requiring local on-card voltage regulation to improve power distribution stability and device longevity.
Provides stable 9V fixed voltage output with high load and line regulation. Supports output current up to 2 amperes for moderate power applications. Designed with thermal shutdown and short circuit protection for robust operation.
Operates within a temperature range of 0°C to 150°C for reliable performance. Features positive polarity and fixed output type for straightforward power management. Compact TO-220 package facilitates through-hole mounting on PCBs.
Quiescent current is low at only 8mA to enhance efficiency. Input voltage range supported from 12V minimum up to 35V maximum. Ideal for on-card power regulation in industrial, electronic, and embedded systems. Includes internal current limiting and safe area protection for device longevity.
Discover more power management and voltage regulation components on EnvMart for professional industrial and electronics applications.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L78S09CV provides a fixed output voltage of 9V.
This model can support an output current of up to 2A.
It supports an input voltage range from 12V minimum to 35V maximum.
The dimensions of this unit are 10.4mm in length, 9.15mm in height, and 4.6mm in width.
It is encapsulated in a TO-220 3-pin package, suitable for through-hole mounting.
The quiescent current is low at only 8mA, enhancing efficiency.
The load regulation is 170 mV and the line regulation is 130 mV, ensuring stable output under varying conditions.
It operates within a temperature range of 0°C to 150°C.
It includes thermal shutdown and short circuit protection for robust operation.
The output polarity is positive, making it straightforward for integration in power supply designs.
This voltage regulator is suitable for applications in industrial automation, embedded systems, consumer electronics, and laboratory instrumentation.
This model features a single output.
