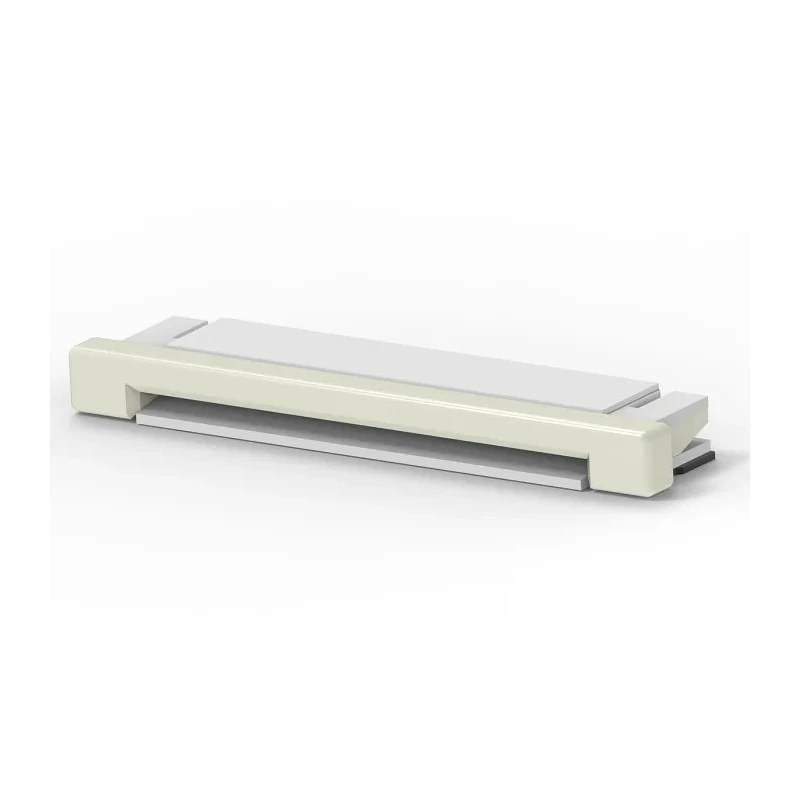

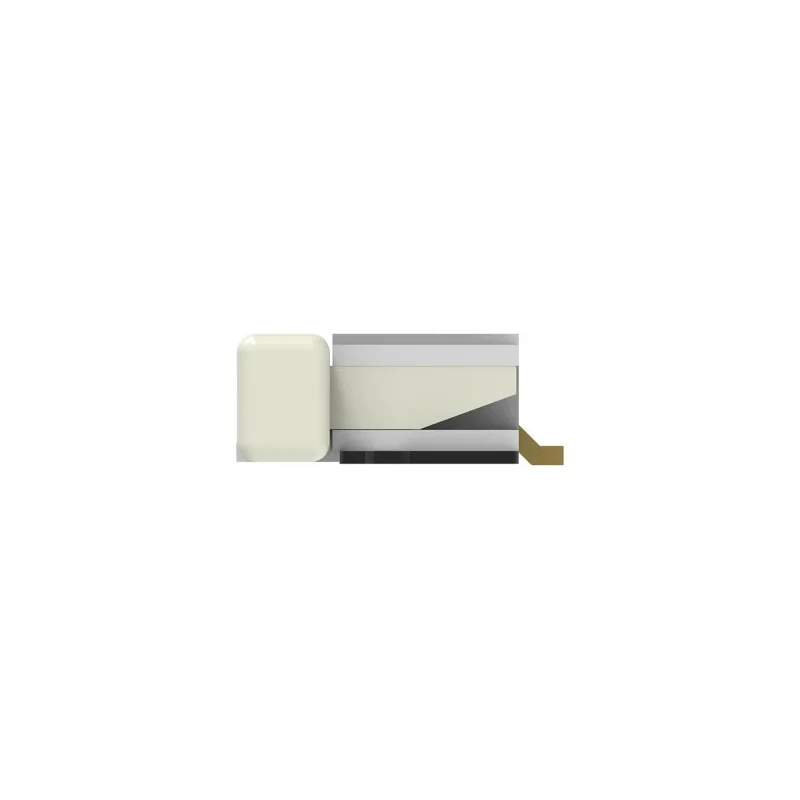

TE Connectivity 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder 3-1734592-0

TE Connectivity 3-1734592-0 0.5 mm Pitch 30 Way Right Angle Female FPC Connector is a high precision connector engineered for flexible printed circuit (FPC) applications requiring reliable signal transmission with minimal insertion force. This connector features a 0.5 mm pitch and 30 positions, allowing dense wiring configurations on compact PCBs.

The connector's contacts are made of phosphor bronze and plated with gold to achieve excellent electrical conductivity and corrosion resistance. It incorporates a zero insertion force (ZIF) design with a stuffer (plunger style) actuator style, which minimizes wear and helps prevent damage during mating and de-mating cycles. The female contacts are positioned at the bottom of the connector and mounted at a right angle to the PCB, optimizing board space usage for versatile electronic assemblies.

The housing is built from liquid crystal polymer, providing high mechanical strength and thermal stability, suitable for operating temperatures ranging from -40°C to 85°C. The connector supports a maximum voltage of 250 VAC and a current rating of 500mA, making it ideal for low-power signal circuit applications in industrial, consumer electronics, and embedded systems.

Additional features include a gold contact plating for durability, an integrated locking mechanism for secure retention, and compliance with the TE Connectivity 1734592 series standards. The connector dimensions (length 20.43 mm, height 2.05 mm, and width 5.1 mm) accommodate compact PCB designs without sacrificing reliability.

This connector is surface mount terminated by soldering and comes from the manufacturing facilities in China. It is supplied in a tape packaging method optimized for automated placement and assembly processes.

Ideal for use in electronic manufacturing, communication devices, instrumentation, and other applications demanding precise, durable, and compact PCB connections. TE Connectivity offers highly engineered solutions supporting efficient design and reliable performance in challenging industrial and commercial environments.

Features 30 contact positions with a 0.5 mm pitch for compact design. Utilizes phosphor bronze contact material plated with gold for reliability and conductivity. Zero insertion force (ZIF) actuation minimizes connector stress during insertion.

Right angle orientation with bottom contact position supports versatile PCB mounting. Operational voltage rating of 250V AC for signal circuit applications. Rated current capacity of 500mA to support low power applications.

Constructed from liquid crystal polymer housing material for dimensional stability and durability. Incorporates locking mechanism ensuring secure connections in dynamic environments. Suitable for operating temperatures from -40°C to 85°C for rugged industrial use.

Connector length 20.43 mm, height 2.05 mm, and width 5.1 mm for space-constrained PCB integration. Explore more products in the FPC Connector category at EnvMart for high-quality electronics components and connectors supporting your industrial and manufacturing needs.
