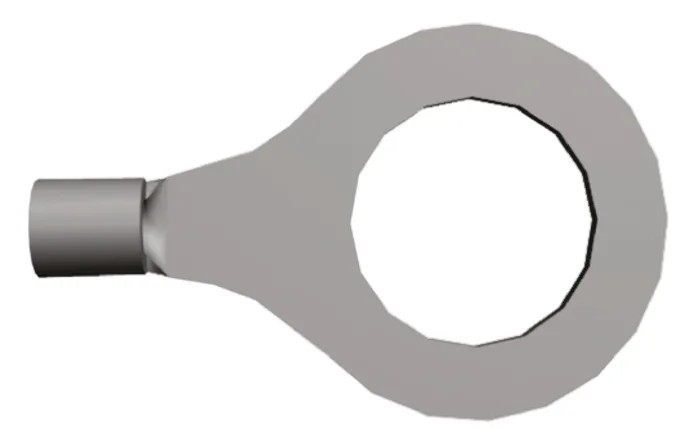

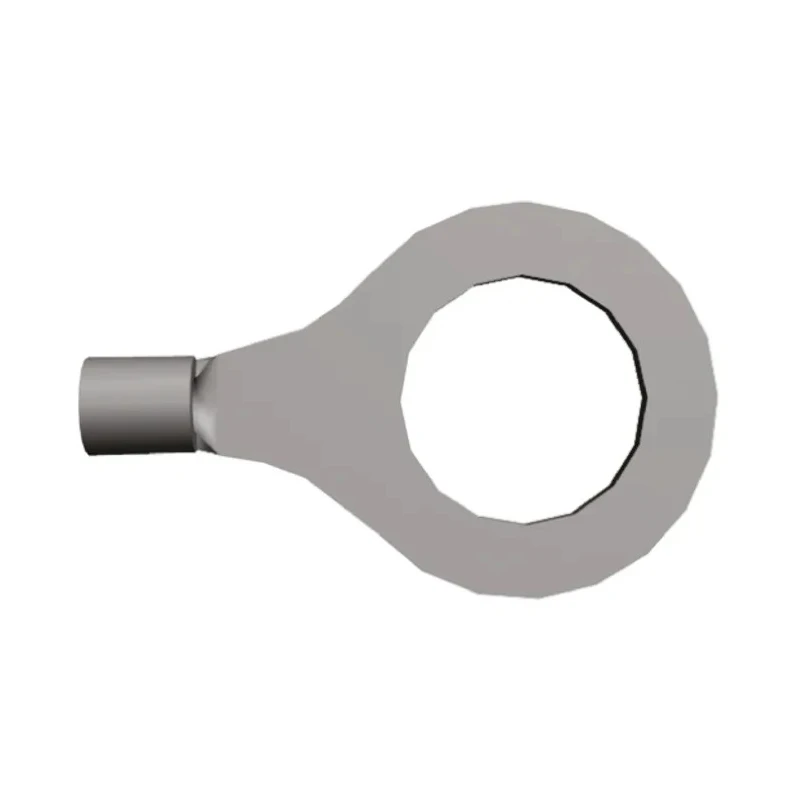

TE Connectivity Solistrand Insulated Ring Terminal M10 Stud Size 16 AWG 14 AWG Wire Size 160140
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 160140 |
| Insulation | Insulated |
| Overall Length | 26.5mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 16.7mm |
| Inner Ring Diameter | 10.5mm |
| Stud Size | M10 |
Key Features
- Constructed with high conductivity copper for optimal electrical performance.
- Electro tin plating ensures corrosion resistance and durability.
- Robust design ideal for use in harsh industrial environments.
- Brazed seams provide increased barrel strength for enhanced reliability.
- Dimpled and serrated barrel maximizes electrical contact and tensile strength.
- Bell shaped barrel mouth allows quick and easy wire insertion.
- Maximum operating temperature rating of 170°C for versatile application suitability.
- Suitable for terminating solid, stranded, and irregular shaped conductors.
Product Description
TE Connectivity 160140 Solistrand Insulated Ring Terminal is a highly reliable electrical component designed to terminate wires with M10 stud size, supporting wire sizes from 16 AWG to 14 AWG. This insulated ring terminal features a fine grade high conductivity copper contact material with electro tin plating to resist corrosion and optimize conductivity.
The robust design of the Solistrand ring terminals enables stable performance even in demanding industrial conditions. Brazed seams in the closed barrel enhance mechanical strength, while the dimpled and serrated barrel interior improves tensile strength and electrical contact area. The bell shaped barrel entrance simplifies wire insertion, reducing installation time.
Rated for continuous operation at up to 170°C, this component is ideal for applications including materials handling equipment, motors, heavy machinery, transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, instruments, and controls.
These terminals are optimized for use with SOLISTRAND crimping tools to ensure the best possible mechanical and electrical connections. Their design provides a cost-effective, short barrel with superior tensile strength and electrical performance.
Constructed of high conductivity copper for excellent electrical performance. Electro tin plating enhances corrosion resistance. Brazed seams offer increased barrel strength in harsh environments. Dimpled and serrated barrel increases contact and tensile strength.
Bell shaped mouth for easier and faster wire insertion. Supports wire sizes from 16 AWG to 14 AWG. Maximum operating temperature of 170°C. Suitable for industrial, telecommunications, and heavy equipment uses. Designed for use with SOLISTRAND crimping tools.
This Solistrand insulated Ring Terminal delivers durable, high-performance connections essential for demanding electrical and industrial applications. Browse the Electronics & Electricals category at EnvMart for more TE Connectivity components and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 170°C.
This model supports wire sizes from 16 AWG to 14 AWG.
The stud size for this insulated ring terminal is M10.
The contact material used in this terminal is high conductivity copper.
Yes, it has electro tin plating that enhances corrosion resistance.
The overall length of this ring terminal is 26.5 mm.
The outer ring diameter is 16.7 mm, and the inner ring diameter is 10.5 mm.
This terminal complies with RoHS standards.
The barrel features brazed seams for increased strength and a dimpled and serrated interior to maximize electrical contact and tensile strength.
This terminal is insulated, providing additional safety and performance in electrical applications.
It is suitable for applications including materials handling equipment, motors, heavy machinery, transformers, and telecommunications.
The thickness of this terminal is 0.79 mm.
