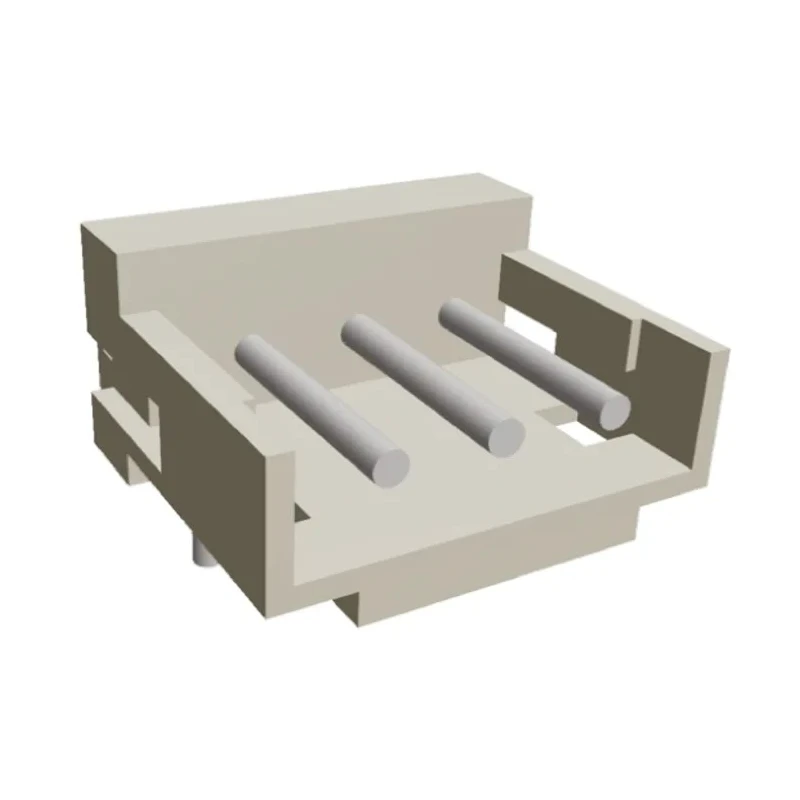

TE Connectivity AMP CT Series Right Angle Through Hole PCB Header, 3 Contact(s), 2 mm Pitch, 1 Row, Shrouded 292253-3
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 2A |
| Model | 292253-3 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP CT |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Miniature design for compact PCB layouts.
- Polarization and mating retention features ensure reliable connections.
- Kinked solder legs provide secure self-retention to the PCB.
- Constructed with brass contacts and tin plating for durability.
- Housing made from nylon material resistant to high temperatures.
- Rated for a current of 2A and voltage up to 125V.
- Suitable for wire-to-board connector systems using through-hole mount type.
- Operates reliably in temperatures ranging from -30°C to 105°C.
Product Description
TE Connectivity 292253-3 AMP CT Series right angle through hole PCB header is engineered for miniature, reliable wire-to-board interconnections. Featuring 3 contacts at a 2 mm pitch within a shrouded, single-row housing, it ensures precise polarization and mating retention to prevent misalignment during assembly.
The connector's brass contacts are plated with tin and incorporate kinked solder legs designed for secure self-retention to the PCB, enhancing manufacturing robustness. The nylon housing material offers excellent durability and thermal resistance, supporting continuous operation from -30°C to 105°C. Rated for 2 amperes current and 125 volts, this PCB header suits a wide range of electronic applications.
Its right angle orientation facilitates efficient PCB layout and cable routing, especially in compact spaces. It is widely used in business equipment, industrial machines, personal computers, printers, television audio, and air conditioning systems due to its proven reliability and secure connections.
The AMP CT 2 mm interconnection system supports both boxed and shrouded headers paired with crimp or mass terminated cable housings loaded with IDC contacts, making it a versatile choice for wire harness assemblies.
Miniature design for compact PCB layouts. Polarization and mating retention features for secure connections. Kinked solder legs ensure robust PCB mounting. Brass contacts with tin plating for corrosion resistance. Nylon housing material for durability and thermal stability.
Rated current of 2A and voltage of 125V. Right angle orientation optimizes PCB space usage. Wide operating temperature range from -30°C to 105°C. Suitable for various industrial and commercial electronic equipment. Manufactured in China.
Explore our extensive selection of PCB Headers at EnvMart to find the ideal connectors for your industrial and commercial electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of up to 125V.
It has a current rating of 2A.
The contacts are made from brass and are plated with tin, while the housing is constructed from nylon material.
The pitch size of this connector is 2 mm.
This model features a right angle orientation, which helps optimize PCB space usage.
It operates reliably within a temperature range of -30°C to 105°C.
This header has 3 contacts.
It uses a through hole mounting type.
This model is shrouded, providing additional protection against misalignment.
It supports a wire-to-board connector system.
It includes polarization and mating retention features to prevent misalignment during assembly.
It is widely used in business equipment, industrial machines, personal computers, printers, television audio, and air conditioning systems.
