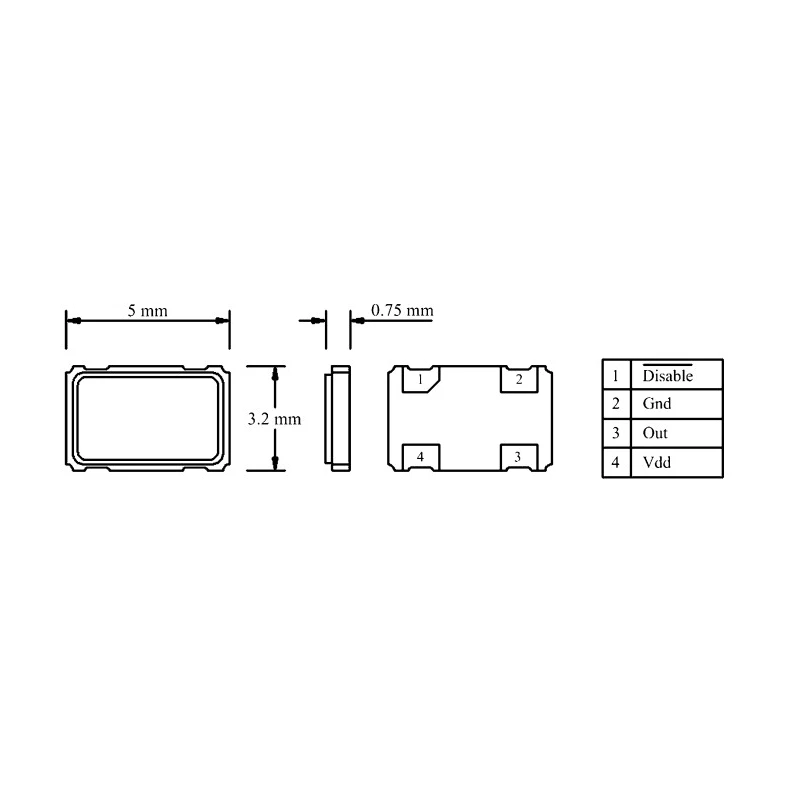

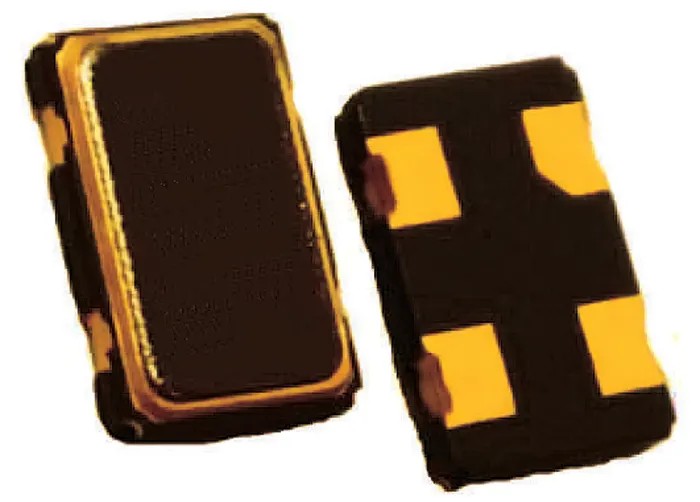

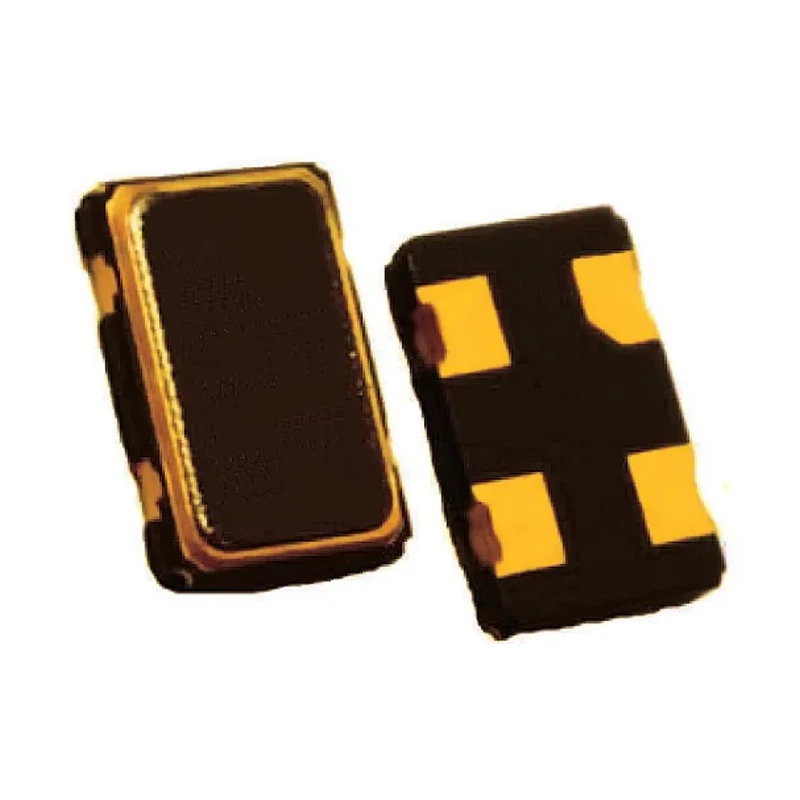

MERCURY 25MHz Clock Oscillator ±50 ppm HCMOS 4-Pin SMD Surface Mount 1.2 to 5 V 3H53ET-25.000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Dimensions | 5 x 3.2 x 1.2 mm |
| Height | 1.2mm |
| Length | 5mm |
| Model | 3H53ET-25.000 |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | H53 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 25MHz |
| Package Type | SMD |
| Minimum Operating Temperature | -40°C |
| Supply Voltage | 1.2 V to 5 V |
| Pin Count | 4 |
| Maximum Supply Voltage | 3.3V |
| Oscillator Type | Clock |
| Output Level | HCMOS |
Key Features
- Compact 5 x 3.2 x 1.2 mm ceramic surface mount package.
- Wide supply voltage range from 1.2 V to 5 V for versatile usage.
- Operating temperature range from -40°C to 85°C.
- Seam sealed ceramic base ensures durability and reliability.
- 4-pin configuration supports surface mounting on PCBs.
- Maximum supply voltage rating is 3.3 V.
- Designed for high-precision clocking applications in electronic devices.
- Package supplied in tape and reel format for automated assembly processes.
Product Description
MERCURY 3H53ET-25.000 is a 25MHz clock oscillator featuring high frequency stability of ±50 ppm utilizing HCMOS output technology. It is designed specifically for surface-mounted device (SMD) applications with a compact 5 x 3.2 x 1.2 mm ceramic package ensuring a low profile on printed circuit boards.
This oscillator operates reliably over a wide temperature range of -40°C to 85°C and supports a flexible supply voltage from 1.2 V up to 5 V with a maximum rating of 3.3 V. Its seamless ceramic base enhances the device's reliability, making it suitable for industrial and consumer electronics applications requiring precise timing signals.
The 3H53ET-25.000 model comes in a 4-pin surface mount configuration, supplied in tape and reel packaging optimized for high-volume automated PCB assembly. Its stable 25MHz output frequency and HCMOS level signal make it ideal for clock generation in microcontrollers, communications equipment, and digital circuits.
Compact ceramic package with dimensions 5 x 3.2 x 1.2 mm. Wide operating temperature range (-40°C to 85°C) for extended environmental tolerance. Supply voltage range of 1.2 to 5 V for flexible integration. ±50 ppm frequency stability ensuring accurate timing performance.
HCMOS output compatible with standard digital logic circuits. Tape and reel packaging suited for automated SMT production lines. Durable and reliable ceramic base construction. 4-pin SMD mount for space-saving circuit design.
This clock oscillator is widely used in electronic components, power and connectors assemblies, and is suitable for manufacturing of precision timing solutions in various electronics and industrial applications.
Explore more high-quality oscillators and timing components within EnvMart’s Electronics Components category for enhanced design and production efficiency.
Explore more products in our Crystal Oscillator category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of the MERCURY 3H53ET-25.000 clock oscillator is 25MHz.
This model operates with a supply voltage range from 1.2 V to 5 V, with a maximum supply voltage rating of 3.3 V.
The dimensions of the 3H53ET-25.000 are 5 x 3.2 x 1.2 mm.
The operating temperature range for this oscillator is from -40°C to 85°C.
This oscillator provides an HCMOS output level, which is compatible with standard digital logic circuits.
It is packaged in tape and reel format, which is optimized for automated assembly processes.
The 3H53ET-25.000 has a pin count of 4.
This model uses a surface mount configuration, suitable for printed circuit boards (PCBs).
The series name of this oscillator is H53.
The country of origin for this product is Taiwan.
This clock oscillator is suitable for high-precision clocking applications in electronic devices, including microcontrollers and communications equipment.
The frequency stability of the MERCURY 3H53ET-25.000 is ±50 ppm.
