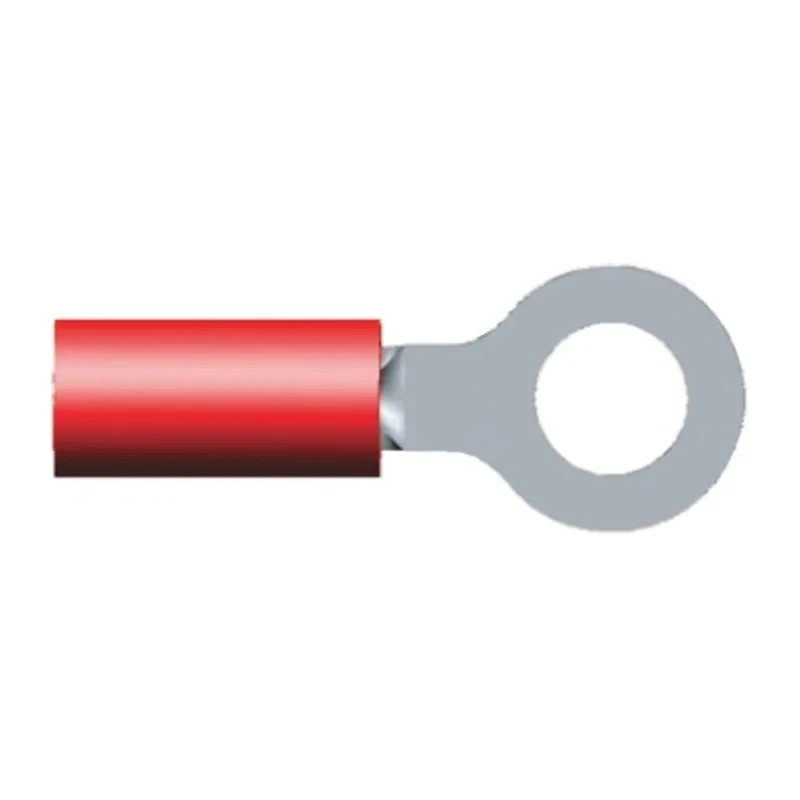

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size Red 32837
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.84mm |
| Model | 32837 |
| Insulation | Insulated |
| Overall Length | 22.25mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | UL, RoHS, CSA LR7189 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 8.74mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed from high conductivity copper for optimal performance.
- Features a nylon insulated, colour-coded sleeve for easy wire identification.
- Includes serrations inside the barrel to ensure maximum contact and tensile strength after crimping.
- Copper sleeve provides improved wire insulation support and prevents fraying.
- Funnelled wire entry facilitates fast and accurate wire insertion during production.
- Designed to meet UL, RoHS, and CSA standards for safety and compliance.
- Suitable for a wide range of electrical and industrial applications including instruments, control panels, and transportation.
- Maximum operating temperature of 105°C ensures reliable performance in demanding environments.
Product Description
TE Connectivity 32837 PIDG insulated ring terminal is engineered for dependable electrical connections with a robust design tailored for wire sizes from 22 AWG to 16 AWG. This product features an M5 stud size and a red nylon insulated sleeve for color-coded wire identification. The high conductivity copper body and barrel, combined with precision serrations inside the wire barrel, provide excellent tensile strength and maximum contact reliability after crimping.
The copper sleeve enhances insulation support and prevents wire fraying, while the funnelled entry allows quick and accurate wire insertion suitable for high-speed manufacturing processes. This ring terminal complies with UL, RoHS, and CSA LR7189 standards assuring safety and environmental regulations compliance. TE Connectivity’s PIDG ring terminals are versatile and ideal for industrial, electronic, HVAC, transportation, and aerospace wiring applications.
Typical use cases include applications in instruments and control systems, lighting, power supplies, motors, panel boxes, lifting equipment, and appliances. With a maximum operating temperature of 105°C, this ring terminal guarantees durability in demanding environments and is manufactured to meet MIL-T-7928, Type II, Class 1 and 2 standards.
Constructed from high conductivity copper for optimal performance. Features a nylon insulated, colour-coded sleeve for easy wire identification. Includes serrations inside the barrel to ensure maximum contact and tensile strength after crimping.
Copper sleeve provides improved wire insulation support and prevents fraying. Funnelled wire entry facilitates fast and accurate wire insertion during production. Designed to meet UL, RoHS, and CSA standards for safety and compliance.
Suitable for a wide range of electrical and industrial applications including instruments, control panels, and transportation. Maximum operating temperature of 105°C ensures reliable performance in demanding environments.
This TE Connectivity PIDG insulated Ring Terminal 32837 offers an industry-standard solution trusted in commercial, industrial, laboratory, and manufacturing setups. Explore more electronics components and connectors at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is designed for wire sizes ranging from 22 AWG to 16 AWG.
The maximum operating temperature for this terminal is 105°C, ensuring reliable performance in demanding environments.
The terminal is constructed from high conductivity copper with a nylon insulated sleeve for improved wire insulation support.
It is designed to meet UL, RoHS, and CSA LR7189 standards for safety and compliance.
The stud size for this ring terminal is M5.
The overall length of this terminal is 22.25 mm.
The inner ring diameter is 5 mm and the outer ring diameter is 8.74 mm.
Yes, it features a funnelled wire entry to facilitate fast and accurate wire insertion during production.
The thickness of this terminal is 0.84 mm.
The contact material for this ring terminal is copper, which provides optimal performance.
This ring terminal is suitable for a wide range of electrical and industrial applications, including instruments, control panels, and transportation.
The insulation material used in this terminal is nylon, which aids in wire identification and insulation support.
