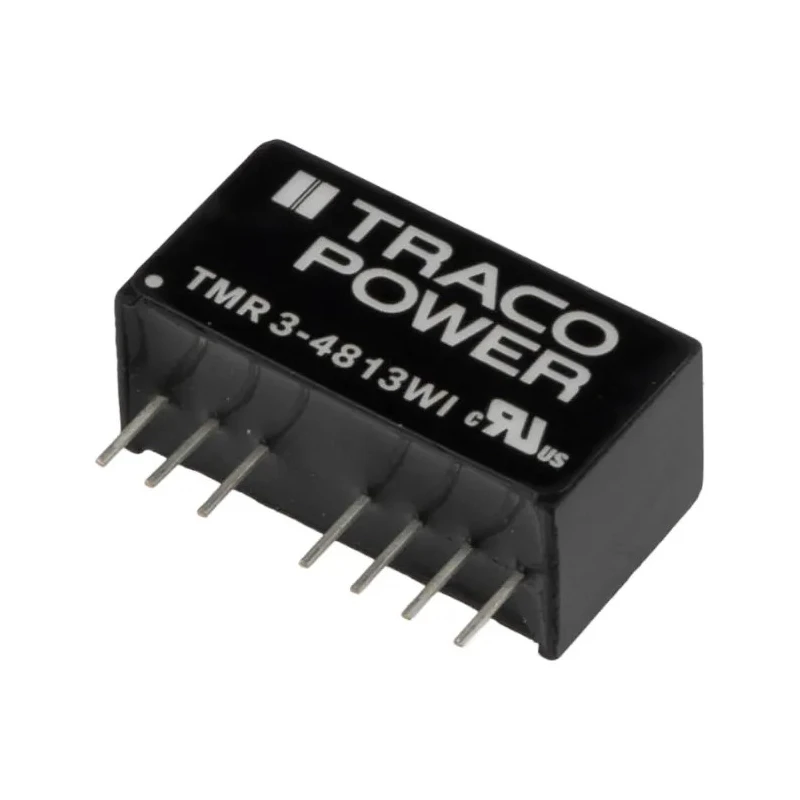

TRACOPOWER Regulated Isolated 3W DC/DC Converter 15V DC 200mA PCB Mount TMR 3-4813WI

TRACOPOWER TMR 3-4813WI is a high-performance regulated isolated DC/DC converter designed to deliver a stable 15V DC output at 200 mA current, providing a maximum output power of 3 Watts. It features a compact SIP plastic package for PCB mounting with a small footprint measuring just 21.8 mm in length, 9.2 mm in width, and 11.1 mm in depth, making it suitable for space-critical industrial and commercial applications.

This DC/DC converter supports a wide input voltage range from 18V to 75V DC with a 4:1 input ratio, making it versatile for various power supply environments. The unit offers high efficiency rated at approximately 79%, ensuring optimized energy usage and reduced heat generation during operation. It supports excellent load and line regulation, which are crucial for maintaining consistent output voltage under varying load and input conditions.

The TMR 3-4813WI series provides robust protection mechanisms including overload, overvoltage, and short-circuit protection with remote On/Off control for ease of integration and reliability in complex systems. Electrical isolation is rated at 1.5 kV DC, providing safety and noise immunity in sensitive electronic circuits.

Designed for harsh environments, it operates reliably within a temperature range from -40°C to +85°C. The high Mean Time Between Failures (MTBF) rating of 3,400,000 hours underscores the durability and long life expectancy of the device.

Its compact design and robust features make it ideal for battery-powered equipment, instrumentation, telecommunications, industrial controls, and other electronic applications where space and power efficiency are critical. The product is RoHS compliant and manufactured in Taiwan, Province Of China, ensuring adherence to environmental and quality standards.

Regulated isolated DC/DC converter with 3 Watt output power. Supports wide input voltage range of 18V to 75V DC. Compact SIP package with PCB mount and 7 pins. High efficiency of approximately 79% with excellent load and line regulation.

Operating temperature range from -40°C up to 85°C for rugged applications. Overload and overvoltage protection with remote On/Off control. High isolation voltage rating of 1.5kV DC ensuring electrical safety. Small footprint: 21.8 mm length, 9.2 mm width, 11.1 mm depth.

MTBF rating of 3,400,000 hours indicating robust reliability. Ideal for battery-powered equipment, instrumentation, industrial and commercial electronic applications. Explore more DC/DC Converters and power supply solutions at EnvMart for your industrial and electronic component needs.
