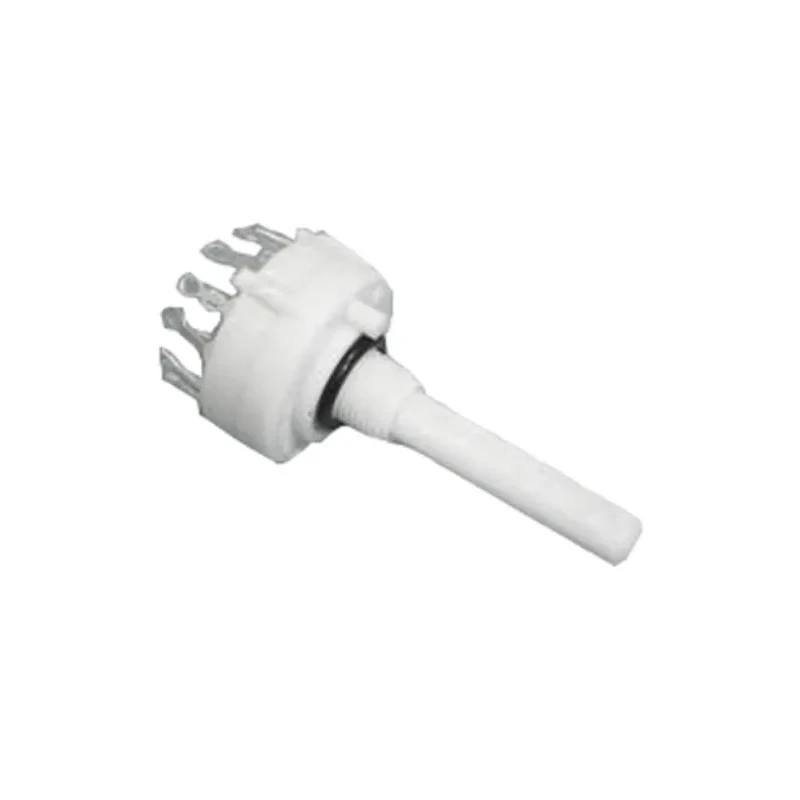

Lorlin 4 Position Rotary Switch 1A 24V AC/DC Polyamide Housing PCB Mount Solder Tag CKF1026
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Model | CKF1026 |
| Depth | 27.5mm |
| IP Rating | IP65 |
| Width | 26.2mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Number of Positions | 4 |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder Tag |
| Maximum dc Voltage | 24V dc |
| Number of Poles | 3 |
| Standards/Approvals | RoHS |
| Switch Operation | Rotary |
| Actuator Colour | Black |
| Switch Contact Current | 1A |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 24V ac |
| Angle of Throw | 90 ° |
Key Features
- The switch features a robust polyamide housing and a durable black actuator for reliable operation.
- It is designed with 4 positions and operates with a rotary switch mechanism.
- Equipped with solder tag terminals for easy PCB mounting.
- Offers an IP65 front panel seal for dust and water resistance.
- Rated for a mechanical life of 10,000 cycles ensuring extended service.
- Operates within a temperature range from -30°C to 85°C.
- Standard 90° angle of throw for precise switching.
- Manufactured in the United Kingdom adhering to RoHS standards.
Product Description
Lorlin CKF1026 is a durable 4 Position Rotary Switch designed for PCB mounting with solder tag terminals. It is engineered with a polyamide housing and a black actuator, providing reliable switching up to 1A contact current and voltage ratings of 24V AC/DC.
This rotary switch features an IP65 front panel seal rating, ensuring protection against dust and water ingress, suitable for industrial and commercial electrical applications requiring robust performance.
The switch has a standard 90° angle of throw and dampened indexing, delivering a smooth rotary operation with reduced shaft play. Its mechanical life is rated at 10,000 cycles, making it suitable for repeated use in automation, instrumentation, and control systems.
The operating temperature range from -30°C to 85°C suits diverse environmental conditions. With up to 4 poles and 4 positions, it accommodates complex switching configurations. The solder tag terminal type enables secure PCB mounting for compact and reliable electrical assemblies.
The switch is made from polyamide material, enhancing its robustness and electrical insulation. Designed with a diameter of 27.5 mm and width of 26.2 mm for standardized panel fitting. Complies with RoHS directives, ensuring environmentally friendly manufacturing.
Manufactured in the United Kingdom, guaranteeing quality and reliability. Ideal for applications in electronics, electrical automation, and signal routing.
Settle on Lorlin rotary switches for dependable signal switching and panel mounting in electronics and electrical control environments. Explore our extensive range of Rotary Switches and electrical components at EnvMart for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this rotary switch is 24V AC/DC.
The mechanical life of the CKF1026 model is rated at 10,000 cycles.
This switch has an IP65 front panel seal rating, providing protection against dust and water ingress.
The operating temperature range for this model is from -30°C to 85°C.
This rotary switch is designed for PCB mounting and features solder tag terminals for secure installation.
The dimensions of the CKF1026 rotary switch are a diameter of 27.5 mm and a width of 26.2 mm.
This switch has 4 positions, allowing for versatile switching configurations.
The angle of throw for this rotary switch is 90 degrees, facilitating precise switching.
The housing of this switch is made from polyamide, enhancing its robustness and electrical insulation.
The switch is rated for a contact current of 1A.
The CKF1026 rotary switch is manufactured in the United Kingdom.
This switch complies with RoHS standards, ensuring environmentally friendly manufacturing.
