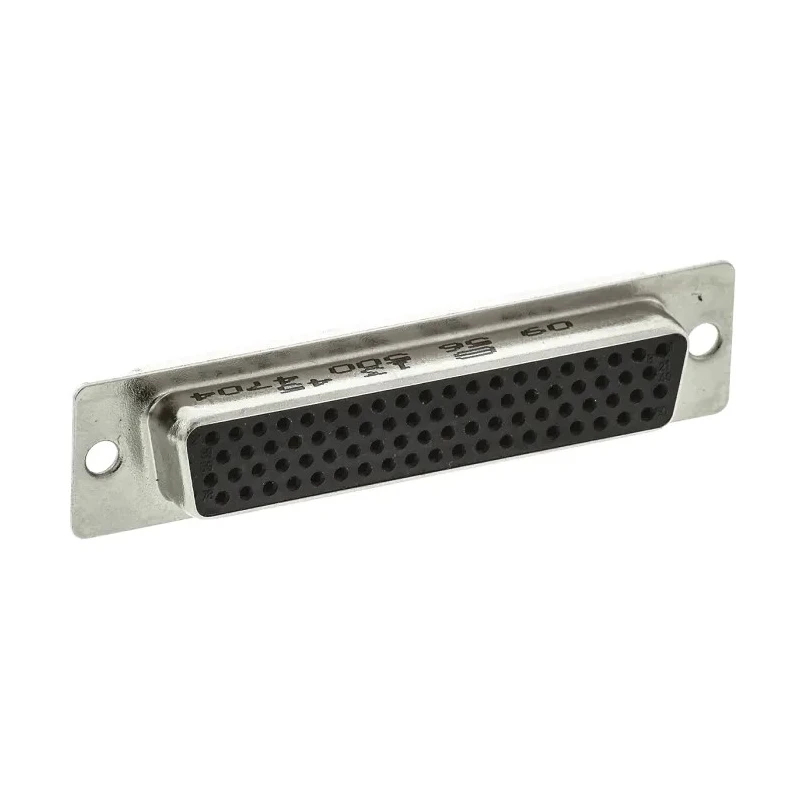

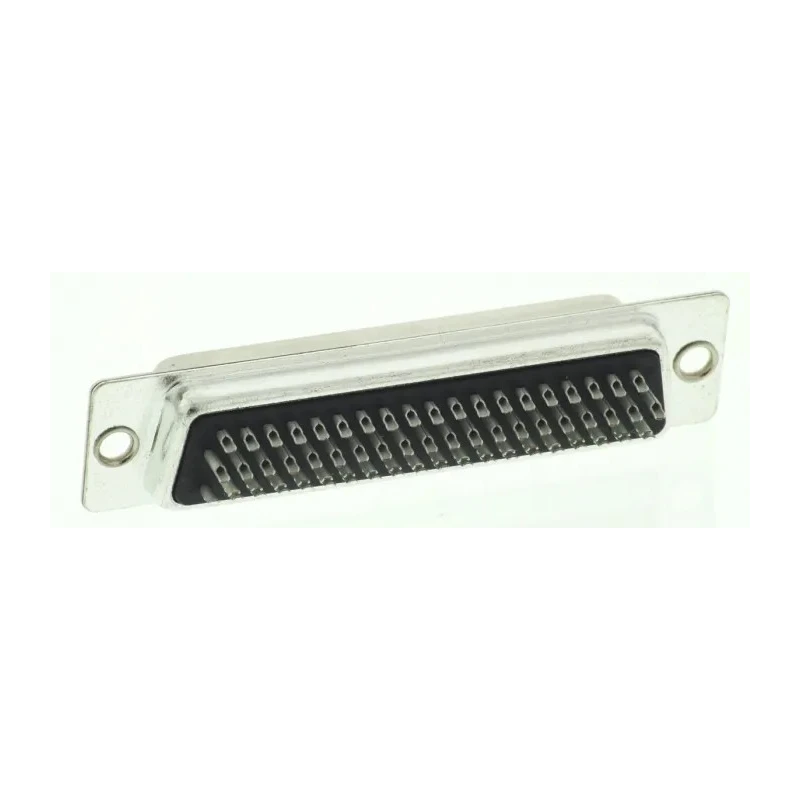

HARTING D-Sub 78 Way Straight 2.42 mm Pitch Cable D-Sub Connector 09565004704

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub 78 Way Straight 2.42 mm Pitch Cable D-Sub Connector 09565004704

Name: HARTING D-Sub 78 Way Straight 2.42 mm Pitch Cable D-Sub Connector 09565004704
Brand: HARTING
SKU: 100630
Price: 17.45 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	1000V
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Cable
Housing Material	Steel
Contact Material	Copper Alloy
Series	D-Sub
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.42mm
Contact Plating	Gold
Number of Contacts	78
Contact Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	D
HARTING D-Sub 78 Way Straight 2.42 mm Pitch Cable D-Sub ConnectorBrand	HARTING

Key Features

Features 78 contacts with a current rating of 2A.
Connector orientation is straight with cable mount type for secure installation.
Constructed with steel housing and copper alloy contacts plated in gold for durability.
Operates at voltages up to 1000V with a pitch spacing of 2.42 mm.
Designed to withstand temperatures from -55°C to 105°C for varied environments.
Termination type is solder with female contact gender.
Meets DIN 41 652 standard ensuring high performance and ≥50 mating cycles.
Manufactured in China with reliable build quality.

Product Description

HARTING 09565004704 D-Sub 78 Way Straight 2.42 mm Pitch Cable D-Sub Connector offers a robust and high-density connection ideal for demanding electronic applications. Featuring a 78-contact female connector, it supports a maximum current of 2A with a voltage rating of 1000V, ensuring effective signal integrity.

Constructed with a durable steel housing and copper alloy contacts plated in gold, this connector guarantees long-term reliability and excellent conductivity. The straight orientation and cable mount design simplify installation, while the solder termination secures the connection.

Engineered to operate in harsh conditions, it withstands temperatures ranging from -55°C to 105°C, making it suitable for industrial and commercial electronics environments. It complies with DIN 41 652 standards, supporting over 50 mating cycles to assure long operational life.

The 2.42 mm pitch allows for high-density arrangements exceeding the contact capacity of standard subminiature connectors by 70%, ideal for compact assemblies requiring multiple connections. Manufactured in China, this connector meets quality and performance expectations for professional electronics integration.

Features 78 contacts with a current rating of 2A. Straight cable mount type with solder termination for secure connections. Steel housing with copper alloy contacts plated in gold for durability and conductivity. Rated for voltage up to 1000V and temperature operation from -55°C to 105°C.

High-density design with 2.42 mm pitch exceeding standard contact capacity by 70%. Complies with DIN 41 652 for performance and lifespan assurance. Suitable for industrial, laboratory, manufacturing, and computing connector applications.

This HARTING D-Sub Connector is ideal for improving production efficiency and ensuring reliable connectivity in complex electronic assemblies. Browse the Electronics Components category on EnvMart for more advanced connectors and accessories.
