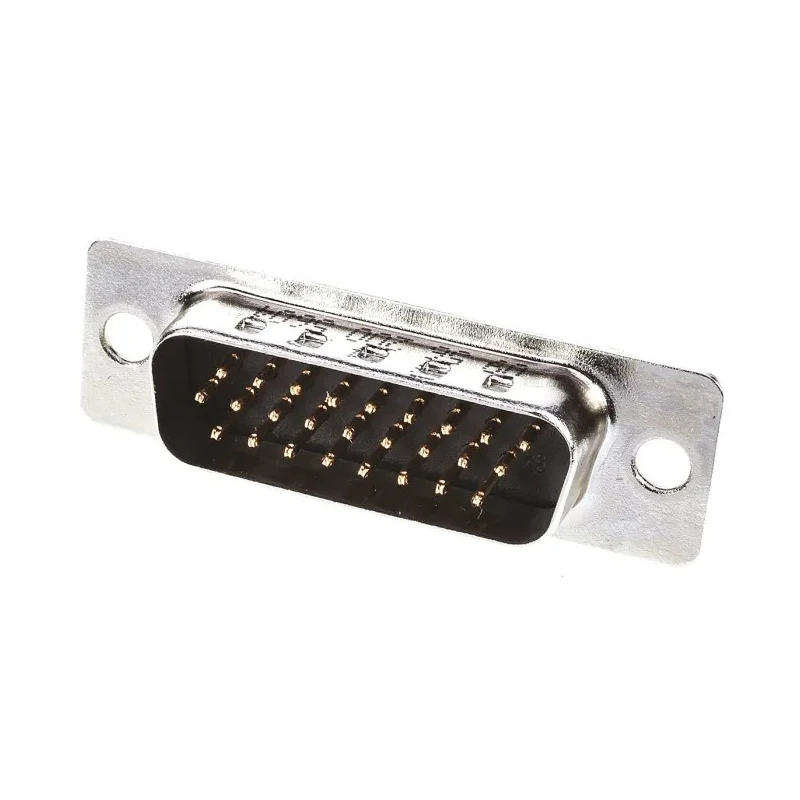

HARTING D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector 09562005604
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.29mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Connector Type D | D-Sub |
| D-Sub Shell Size | A |
| HARTING D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
| HARTING 26 Way Cable Mount D-sub Connector Plug, 2.29mm PitchBrand | HARTING |
Key Features
- Features 26 gold-plated copper alloy contacts ensuring robust connectivity.
- Steel housing enhances durability and mechanical protection.
- Supports voltage up to 1000V for versatile applications.
- Operates in temperature range from -55°C to 105°C suitable for harsh environments.
- Designed with straight orientation for cable mount connection ease.
- Conforms to DIN 41 652 part 2 with performance level 3 ensuring ≥ 50 mating cycles.
- High-density design increases contact capacity by 70% over standard D-sub connectors.
- Ideal for industrial, electronic, computing, and power connector applications.
Product Description
HARTING 09562005604 D-Sub 26 Way Straight 2.29 mm Pitch Cable D-Sub Connector features 26 male gold-plated copper alloy contacts housed in a robust steel shell. The connector supports a current rating of 2A and voltage resistance of up to 1000V, making it suitable for demanding electronic and industrial uses.
Its solder termination type and straight cable mount orientation provide secure and efficient connectivity. Designed to operate reliably in temperatures ranging from -55°C to 105°C, it is well-suited for use in harsh environmental conditions.
This connector adheres to DIN 41 652 part 2 standards with performance level 3, guaranteeing at least 50 mating cycles, ensuring durability and longevity in operation. The high-density design enhances contact capacity by approximately 70% compared to standard subminiature D-Sub connectors.
Common applications include electronic component assemblies, industrial machinery, power connectors, and computer interface connections. Its steel housing offers mechanical protection while the gold-plated contacts ensure high conductivity and corrosion resistance.
Features 26 gold-plated copper alloy contacts ensuring robust connectivity. Steel housing enhances durability and mechanical protection. Supports voltage up to 1000V for versatile applications. Operates in temperature range from -55°C to 105°C suitable for harsh environments.
Designed with straight orientation for cable mount connection ease. Conforms to DIN 41 652 part 2 with performance level 3 ensuring ≥ 50 mating cycles. High-density design increases contact capacity by 70% over standard D-sub connectors.
Ideal for industrial, electronic, computing, and power connector applications. Explore the HARTING D-Sub Connector range and other electronic components on EnvMart to enhance your industrial and electronic projects with quality connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a voltage rating of up to 1000V, making it suitable for various applications.
It has a current rating of 2A, allowing it to handle moderate electrical loads effectively.
This connector operates reliably in a temperature range from -55°C to 105°C, suitable for harsh environments.
It features 26 male gold-plated copper alloy contacts, ensuring robust connectivity.
The housing is made of steel, providing enhanced durability and mechanical protection.
It uses a solder termination type, which provides secure and efficient connectivity.
The pitch size is 2.29 mm, which is standard for this type of connector.
It is designed with a straight orientation for ease of cable mount connection.
It conforms to DIN 41 652 part 2 with performance level 3, ensuring at least 50 mating cycles.
The connector is manufactured in China.
It is ideal for applications in industrial machinery, electronic component assemblies, power connectors, and computer interfaces.
The contacts are gold-plated, which ensures high conductivity and corrosion resistance.
