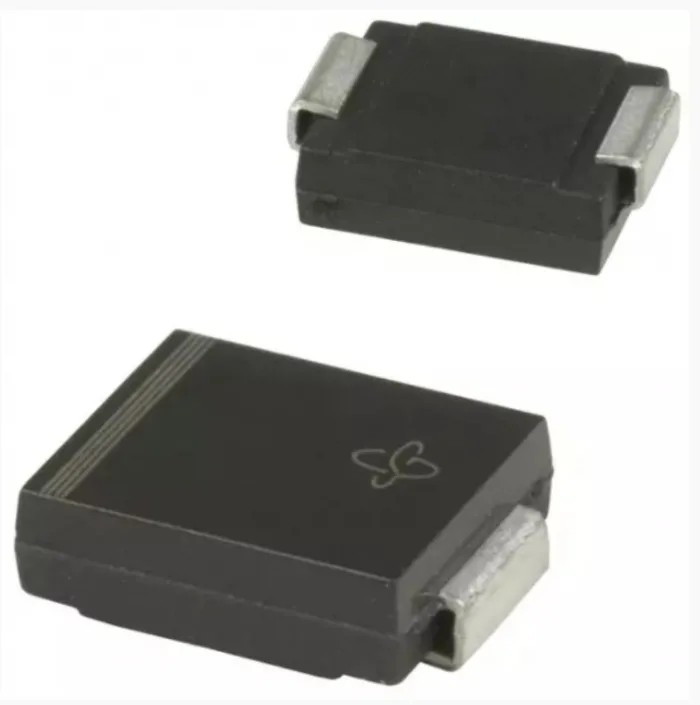

Vishay 1-Element Bi-Directional Transient Voltage Suppressor 600W 2-Pin DO-214AA SMBJ36CA-E3/52
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SMBJ36CA-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 58.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 40V |
| Maximum Reverse Stand-off Voltage Vwm | 36V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 10.3A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration designed for bi-directional voltage suppression.
- Minimum breakdown voltage of 40 volts ensures reliable transient suppression.
- Peak pulse power dissipation rating of 600 watts protects circuits effectively.
- Compact surface mount DO-214AA (SMB) package with dimensions 4.57mm x 3.94mm x 2.24mm.
- Clamping voltage is 58.1 volts for circuit protection during transient events.
- Wide operating temperature range from -55°C to 150°C suits harsh industrial environments.
- Maximum peak pulse current of 10.3 amperes supports high energy surges.
- Compliant with automotive standard AEC-Q101 ensuring high reliability.
Product Description
Vishay SMBJ36CA-E3/52 is a high-quality 1-element bi-directional transient voltage suppressor designed for robust protection in industrial, automotive, and electronic applications. Packaged in a compact DO-214AA surface mount form factor, this TVS diode provides superior transient voltage suppression with a 600 watt peak pulse power rating.
This device features a single diode configuration supporting bi-directional voltage suppression, ideal for protecting sensitive electronics from voltage spikes and surges. The minimum breakdown voltage of 40 volts and maximum reverse stand-off voltage of 36 volts allow it to clamp transient voltages rapidly and effectively.
With a clamping voltage of 58.1 volts and a maximum peak pulse current of 10.3 amperes, this transient voltage suppressor excels in safeguarding circuits in harsh electrical environments. It operates reliably within a wide temperature range of -55°C to 150°C and meets automotive AEC-Q101 standards for enhanced durability.

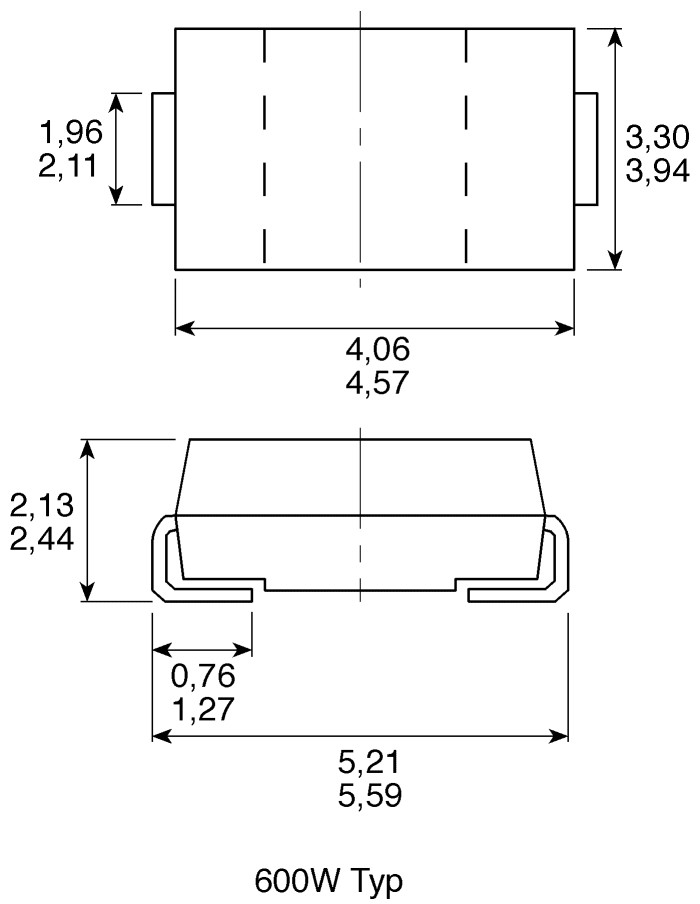

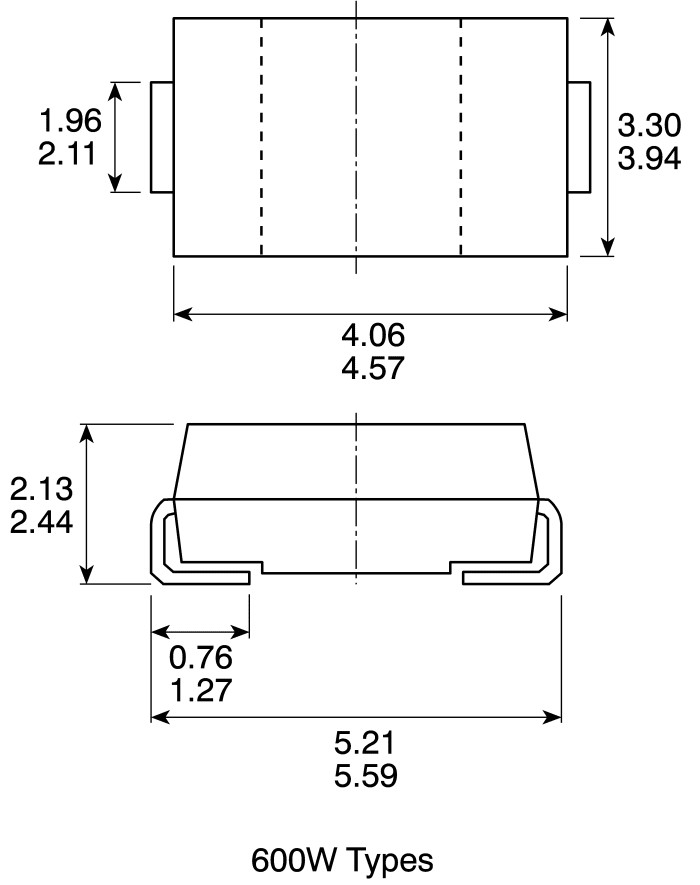

The SMBJ36CA-E3/52’s compact dimensions of 4.57mm in length, 3.94mm in width, and 2.24mm in height make it suited for space-constrained PCB designs. Its low leakage current of 1 microampere minimizes power loss during normal operation.
Single diode, bi-directional transient voltage suppression. 600 watt peak pulse power dissipation. Surface mount DO-214AA package for compact PCB footprint. Operates safely from -55°C to 150°C. Complies with automotive AEC-Q101 reliability standard.
Excellent clamping voltage at 58.1 volts. Low maximum reverse leakage current of 1μA. Ideal for industrial, automotive, and consumer electronics protection.
This product is essential for electronic system designers requiring reliable transient voltage suppression solutions in automotive, industrial machinery, telecommunications, and consumer electronics. Vishay’s TRANSZORB series provides rapid response and excellent robustness against voltage transients, improving system reliability and longevity.
Explore more semiconductor products and transient voltage suppressors in the Electronics & Electricals category at EnvMart to find optimal components for your design and protection needs.
Explore more products in our TVS Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of this model is 600 watts, which helps protect circuits effectively during transient events.
The clamping voltage for this transient voltage suppressor is 58.1 volts, providing circuit protection during transient events.
It operates reliably within a wide temperature range from -55°C to 150°C, making it suitable for harsh industrial environments.
The minimum breakdown voltage is 40 volts, ensuring reliable transient suppression.
The dimensions of the DO-214AA package are 4.57mm in length, 3.94mm in width, and 2.24mm in height.
The maximum peak pulse current is 10.3 amperes, supporting high energy surges effectively.
Yes, it complies with the automotive standard AEC-Q101, ensuring high reliability.
It features a single diode configuration designed for bi-directional voltage suppression.
The maximum reverse leakage current is 1 microampere, minimizing power loss during normal operation.
This device has a pin count of 2, suitable for surface mount applications.
It belongs to the TRANSZORB TVS series, which is known for its robust protection capabilities.
The mount type for this model is surface mount, specifically in the DO-214AA package format.
