Texas Instruments Operational Amplifier 8-Pin SOIC, 1.7 MHz Gain Bandwidth, 16V Max Voltage TLC272CDR

Free Delivery in India | Lowest Global Shipping Charges

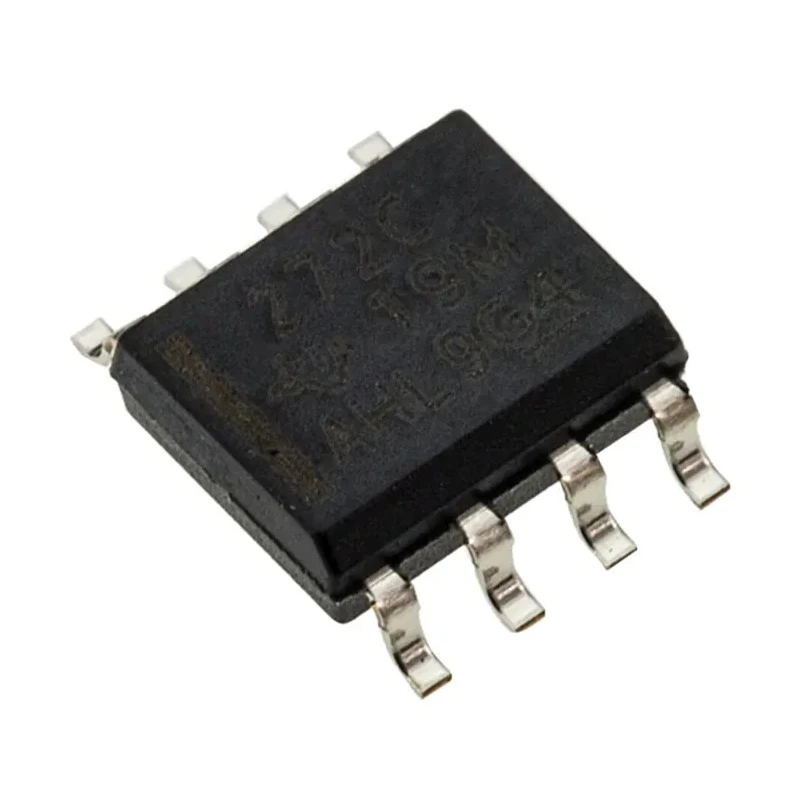

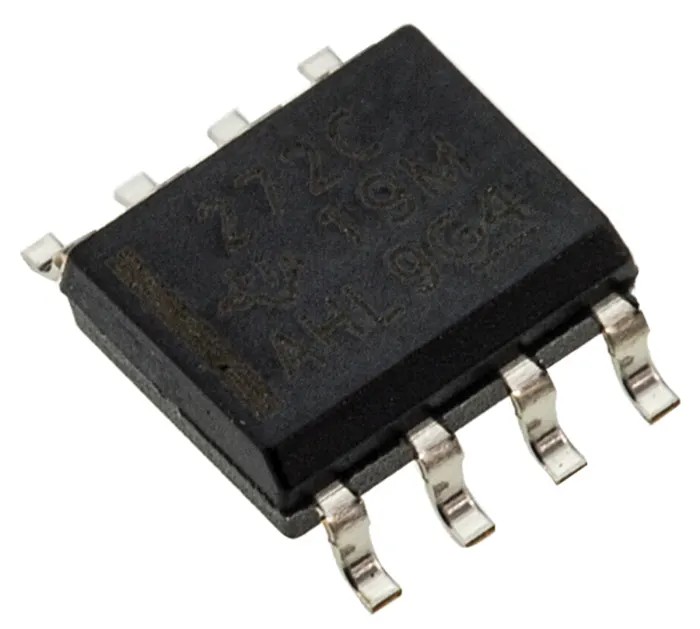

Texas Instruments Operational Amplifier 8-Pin SOIC, 1.7 MHz Gain Bandwidth, 16V Max Voltage TLC272CDR

Name: Texas Instruments Operational Amplifier 8-Pin SOIC, 1.7 MHz Gain Bandwidth, 16V Max Voltage TLC272CDR
Brand: Texas Instruments
SKU: 100066
Price: 1.26 USD
Availability: InStock



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.58mm
Length	4.9mm
Model	TLC272CDR
Width	3.91mm
Mount Type	Surface
Series	TLC272
Output Current	30mA
Maximum Operating Temperature	70°C
Package Type	SOIC
Minimum Operating Temperature	0°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	16V
Minimum Supply Voltage	5V
GBP - Gain Bandwidth Product	1.7MHz
Input Bias Current	600 pA
Vos - Input Offset Voltage	12 mV
Slew Rate	3.6V/μs
Input Offset Current	300 pA

Key Features

Precision LinCMOS dual operational amplifier with two channels.
Package type is surface mount SOIC with 8 pins.
Gain bandwidth product of 1.7 MHz suitable for medium frequency applications.
Operates from 5 V minimum up to 16 V maximum supply voltage.
Low input bias current of 600 picoamps ensures accuracy.
Slew rate of 3.6 V/μs provides fast response to input changes.
Input offset voltage of 12 mV and input offset current of 300 picoamps.
Output current capability of 30 mA for driving loads directly.

Product Description

Texas Instruments TLC272CDR is a precision LinCMOS dual operational amplifier packaged in an 8-Pin SOIC surface mount form factor. Designed with a gain bandwidth product of 1.7 MHz and operating voltage range up to 16 V, this op amp suits a variety of signal conditioning and amplification tasks in industrial and commercial electronics.

This dual channel amplifier delivers low input bias current of 600 pA and a minimal input offset voltage of 12 mV, facilitating accurate signal processing with minimal error. The device supports a slew rate of 3.6 V/μs allowing for rapid output transitions, making it suitable for medium-speed applications.

With an output current capability of 30 mA, it can drive a range of loads directly without additional buffering. The operating temperature span of 0 to 70°C ensures reliable performance in typical industrial environments. The compact SOIC package measures 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, enabling space-efficient PCB designs.

The TLC272CDR complies with RoHS standards, aligning with environmental and safety regulations.

Ideal for applications in instrumentation, signal conditioning, sensor interfacing, and general-purpose amplification in construction, manufacturing, laboratory, HVAC, and automotive electronic systems.

Precision LinCMOS dual operational amplifier with two channels. Package type is surface mount SOIC with 8 pins. Gain bandwidth product of 1.7 MHz suitable for medium frequency applications. Operates from 5 V minimum up to 16 V maximum supply voltage.

Low input bias current of 600 picoamps ensures accuracy. Slew rate of 3.6 V/μs provides fast response to input changes. Input offset voltage of 12 mV and input offset current of 300 picoamps. Output current capability of 30 mA for driving loads directly.

Operating temperature range from 0 to 70°C for industrial environments. Compact dimensions: length 4.9 mm, width 3.91 mm, height 1.58 mm. Explore the Texas Instruments range and other Operational Amplifiers on EnvMart for advanced electronic component solutions.
