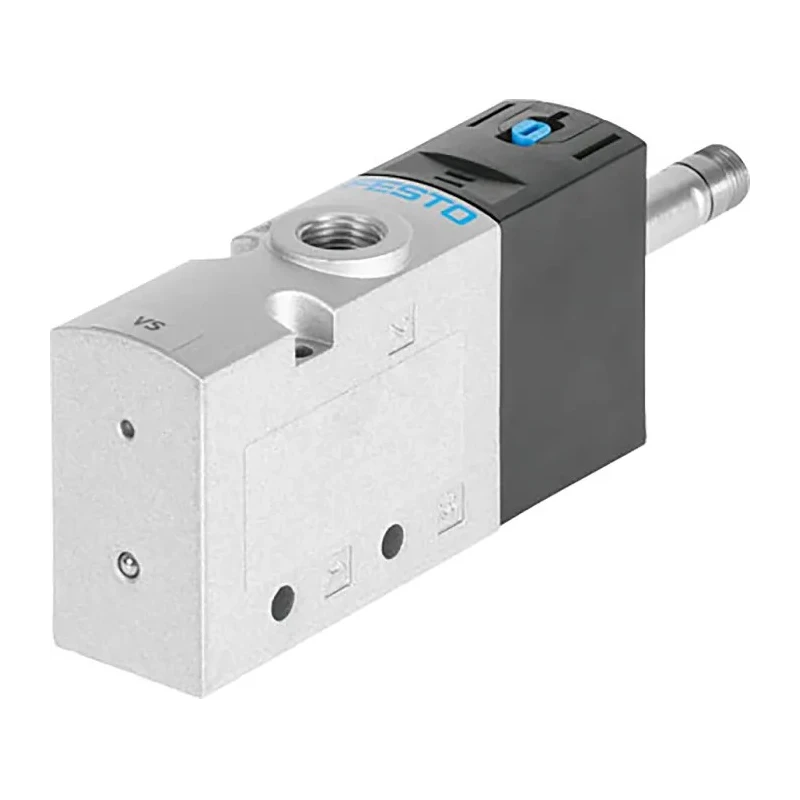

Festo Pneumatic Solenoid Valve 3/2 NC Solenoid G Inline 3-Port 10 bar 1600 L/min Die Cast Aluminium VUVS-LT30-M32C-MD-G38-F8
Specifications
| Country of Origin | China |
|---|---|
| Brand | Festo |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 10 bar |
| Model | VUVS-LT30-M32C-MD-G38-F8 |
| Width | 31mm |
| Mount Type | In-Line |
| Series | VUVS |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 60°C |
| Number of Positions | 2 |
| Port Size | 3/8 in |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 1600L/min |
| Standards/Approvals | CE, cULus, EN, ISO, RoHS |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 2.5bar |
| Valve Function | 3/2 NC |
| Solenoid Type | Single |
| Port Gender | Female |
Key Features
- Constructed from durable die cast aluminium for robust use.
- Features a nitrile rubber (NBR) seal ensuring reliability and tight sealing.
- Designed for pneumatic applications requiring fast and reliable switching.
- Operates within temperature range of -10°C to 60°C.
- Provides up to 10 bar operating pressure and 1600 L/min maximum flow rate.
- 3-port configuration with female G thread ports for flexible use.
- Inline mount type allowing easy installation and replacement.
- Compliant with CE, cULus, EN, ISO, and RoHS standards and approvals.
Product Description
Festo VUVS-LT30-M32C-MD-G38-F8 pneumatic solenoid valve offers a reliable and robust 3/2 NC valve function suitable for varied industrial pneumatic control systems. Designed with an inline mount and three female G threaded ports sized at 3/8 inch, this valve supports pneumatic automation requiring fast switching and durability.
The valve body is made of die cast aluminium providing strength and corrosion resistance. The sealing is made from nitrile rubber (NBR), ensuring air-tight operation with high service life. Operating temperature ranges from -10°C to 60°C, accommodating various working environments.
It operates at a maximum pressure of 10 bar and has a maximum flow rate of 1600 L/min, making it ideal for vacuum and low-pressure pneumatic applications including manufacturing lines, packaging, and machinery automation. The valve features a single solenoid actuation type with two positions enabling controlled air flow with quick response.
Festo's VUVS series solenoid valves are factory pre-assembled and ready for installation, designed for ease of maintenance and replacement. The device has ingress protection rated IP67, ensuring protection against dust ingress and temporary water immersion, enhancing suitability for demanding industrial environments.
This product conforms to international standards including CE, cULus, EN, ISO, and RoHS, certifying quality and environmental compliance. It is manufactured in China and supports efficient energy use with safe, automatic valve switching for pneumatic control systems.
Constructed from durable die cast aluminium for robust use. Features a nitrile rubber (NBR) seal ensuring reliability and tight sealing. Designed for pneumatic applications requiring fast and reliable switching. Operates within temperature range of -10°C to 60°C.
Provides up to 10 bar operating pressure and 1600 L/min maximum flow rate. 3-port configuration with female G thread ports for flexible use. Inline mount type allowing easy installation and replacement. Compliant with CE, cULus, EN, ISO, and RoHS standards and approvals.
Ingress protection IP67 offers dust tightness and water immersion resistance. 2-position valve function with single solenoid actuation. Made in China, suitable for industrial pneumatic automation systems. Explore other high-quality Pneumatic Solenoid Valves and pneumatic components on EnvMart for diverse industrial automation and fluid power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It has a maximum flow rate of 1600 L/min.
This unit operates within a temperature range of -10°C to 60°C.
The body is made of die cast aluminium, and it features a nitrile rubber (NBR) seal.
It has three ports, and the port size is 3/8 inch with female G threads.
This model uses single solenoid actuation with a 3/2 NC valve function.
The valve has an ingress protection rating of IP67, providing dust tightness and resistance to temporary water immersion.
It is compliant with CE, cULus, EN, ISO, and RoHS standards and approvals.
This solenoid valve is designed for inline mounting, allowing for easy installation and replacement.
The minimum pilot pressure required for this valve to operate is 2.5 bar.
This model belongs to the VUVS series of solenoid valves.
This product is manufactured in China.
