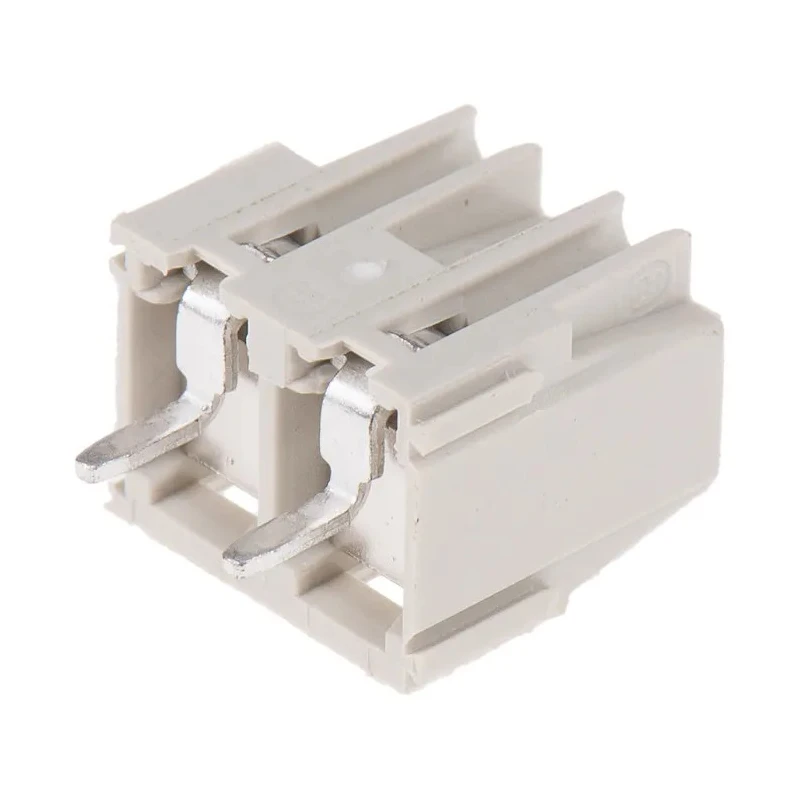

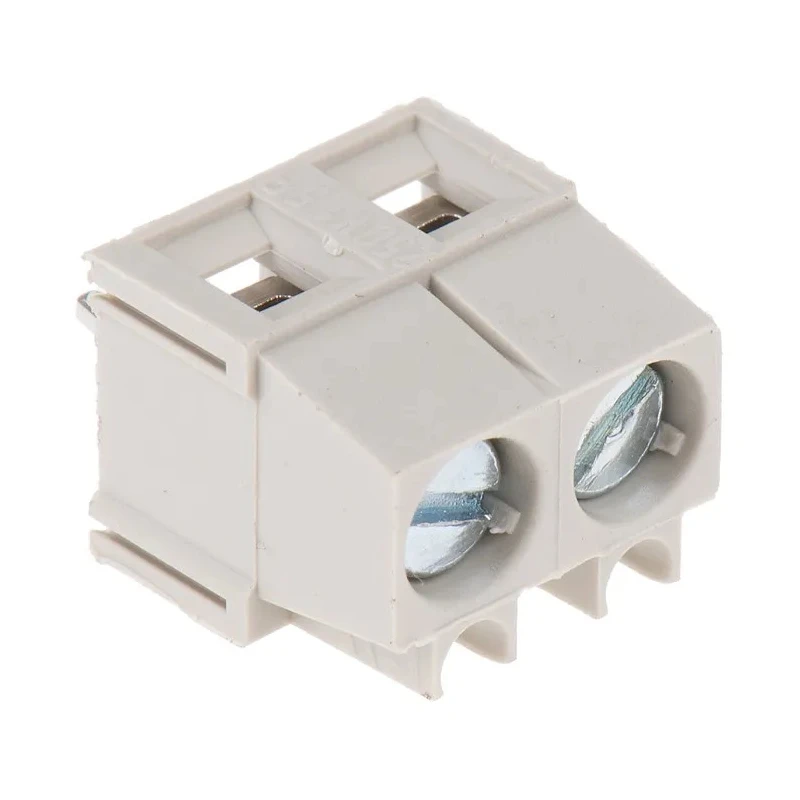

Wieland 8292 Series 2-Contact PCB Terminal Block, 5.08 mm Pitch, Wave Soldering Mount, 300V, 10A 25.193.0253.0
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | Wieland |
| Colour | Grey |
| Orientation | Straight |
| Current | 10A |
| Length | 10.71mm |
| Depth | 8.2mm |
| Width | 10mm |
| Mount Type | Wave Soldering Mount |
| Series | 8292 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | CSA, VDE |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 14AWG |
| Two cross-sections are available | 1.5mm2 or 2.5mm2 |
Key Features
- Features 2 contacts with a 5.08 mm pitch for PCB mounting applications.
- Supports a current rating of 10A and voltage of 300V ensuring stable performance.
- Constructed with a straight orientation and grey color housing for easy identification.
- Suitable for wave soldering mount types and offers a single row configuration.
- Compatible with wire sizes from 0.14 mm² to 2.5 mm² and AWG 30 to AWG 14.
- Built according to CSA and VDE standards for safety and quality compliance.
- Compact dimensions measuring 10.71mm length, 10mm width, and 8.2mm depth.
- Includes clamping arrangement with M2.5 steel screws to protect wires efficiently.
Product Description
Wieland 25.193.0253.0 PCB Terminal Block is a precision-engineered electronic component designed for reliable PCB connections in industrial and commercial circuits. The 2-contact block features a 5.08 mm pitch and is configured for wave soldering mounts with a single row for efficient assembly.
Constructed with a straight orientation and a durable grey housing, it supports up to 10 amperes of current at 300 volts, suitable for various electronic and electrical applications. The terminal block accommodates a range of wire sizes, from 0.14 mm² to 2.5 mm², and is compatible with AWG 30 to AWG 14, offering flexibility for different wiring standards.
Meeting CSA and VDE standards, the component ensures compliance with international safety and quality regulations. Its compact form factor of 10.71 mm length, 10 mm width, and 8.2 mm depth makes it ideal for space-constrained PCB layouts. The integrated clamping mechanism with M2.5 steel screws securely holds wires, protecting them from mechanical stress and ensuring stable electrical contact.
This terminal block is commonly used in electronic manufacturing, industrial control systems, automation, and electrical distribution equipment. Its reliable construction and standardized design facilitate seamless integration into various PCB assemblies, enhancing device durability and performance.
Features 2 contacts with a 5.08 mm pitch for PCB mounting applications. Supports a current rating of 10A and voltage of 300V ensuring stable performance. Constructed with a straight orientation and grey color housing for easy identification.
Suitable for wave soldering mount types and offers a single row configuration. Compatible with wire sizes from 0.14 mm² to 2.5 mm² and AWG 30 to AWG 14. Built according to CSA and VDE standards for safety and quality compliance.
Compact dimensions measuring 10.71mm length, 10mm width, and 8.2mm depth. Includes clamping arrangement with M2.5 steel screws to protect wires efficiently.
Explore related PCB Terminal Blocks and connectors in the Electronics & Electricals category to find compatible components for your specific industrial, automation, or assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 10A and a voltage rating of 300V.
The pitch size is 5.08 mm, designed for PCB mounting applications.
It is compatible with wire sizes ranging from 0.14 mm² to 2.5 mm² and AWG 30 to AWG 14.
This model is suitable for wave soldering mount types and features a single row configuration.
The dimensions are 10.71 mm in length, 10 mm in width, and 8.2 mm in depth.
It is built according to CSA and VDE standards for safety and quality compliance.
This terminal block features 2 contacts.
It has a straight orientation, making it easy to identify and install.
It includes a clamping arrangement with M2.5 steel screws to efficiently protect wires.
The terminal block is manufactured in Germany.
This terminal block belongs to the 8292 Series.
Yes, two cross-sections are available: 1.5 mm² or 2.5 mm².
