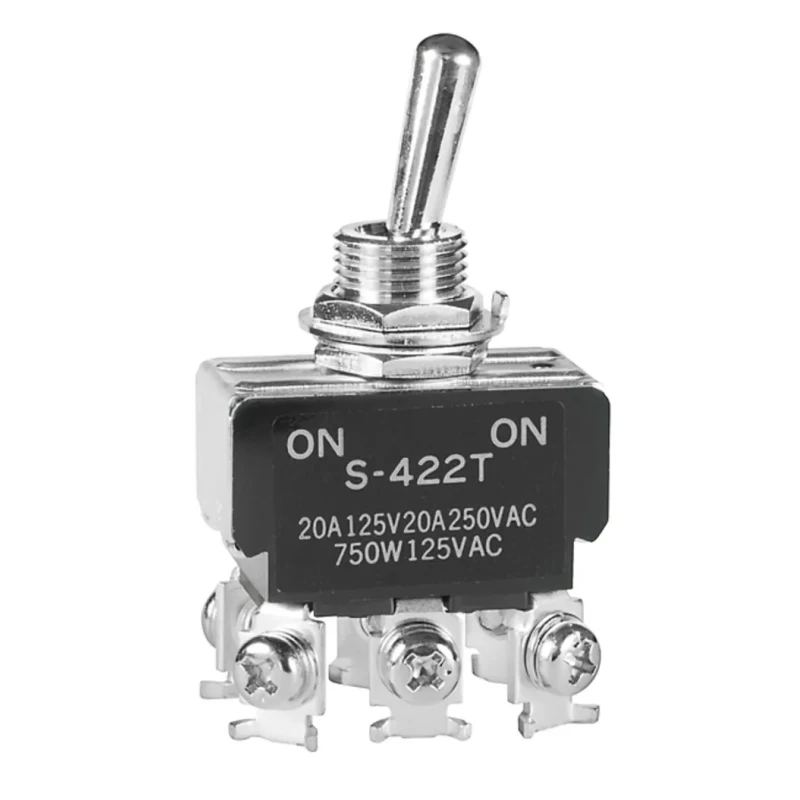

NKK Switches Toggle Switch Panel Mount On-On DPDT Screw Terminal 30V dc 250V ac S422T

NKK Switches S422T Toggle Switch Panel Mount On-On DPDT is a high-quality switch designed for industrial and commercial applications requiring reliable switching with a robust configuration. It features a Double Pole Double Throw (DPDT) contact setup and On-On switch operation providing control over two circuits with two switch positions.

Constructed with chrome plated brass actuators, this switch offers durability and corrosion resistance suitable for harsh conditions. It is panel mountable with a panel cutout size of 12.5 mm, and the screw terminal connections provide secure and reliable wiring.

With an IP67 rating, it provides excellent protection against dust ingress and water jets, making it suitable for outdoor and marine environments. Rated for 20A contact current, it handles medium to high power loads efficiently, scoring high in applications such as construction equipment, transportation controls, and medical devices.

The switch supports a contact voltage of 30V DC and 250V AC, accommodating a wide range of electrical systems. Its operating temperature range from -10°C to 70°C ensures consistent performance under diverse environmental conditions.

Mechanically, the switch is rated for up to 50,000 operations, promising extended service life in industrial settings. Its compact dimensions (60.6mm height and 33.2mm length) allow versatile integration into panel assemblies.

It complies with multiple international standards including UL, cULus, and CSA, ensuring safety and quality for critical industrial applications. The S series from NKK Switches combines subminiature size with durability and high capacity.

The switch operates with On-On functionality and a DPDT contact configuration. It supports a switch contact current of up to 20A, suitable for medium to high-capacity applications. Includes screw-type terminals for secure and reliable electrical connections.

Constructed with chrome plated brass for corrosion resistance and robustness. Features IP67 protection rating for dust and water resistance. Rated voltage is 30V DC and 250V AC for diverse use cases. Designed to operate between -10°C and 70°C ambient temperature.

Mechanical life is rated up to 50,000 operations for long-term durability. Compatible with industrial, construction equipment, marine, and medical applications. Panel cutout size is 12.5 mm for simple installation.

This toggle switch is ideal for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial applications. Its reliable operation and high capacity make it a versatile component for electrical control systems.
