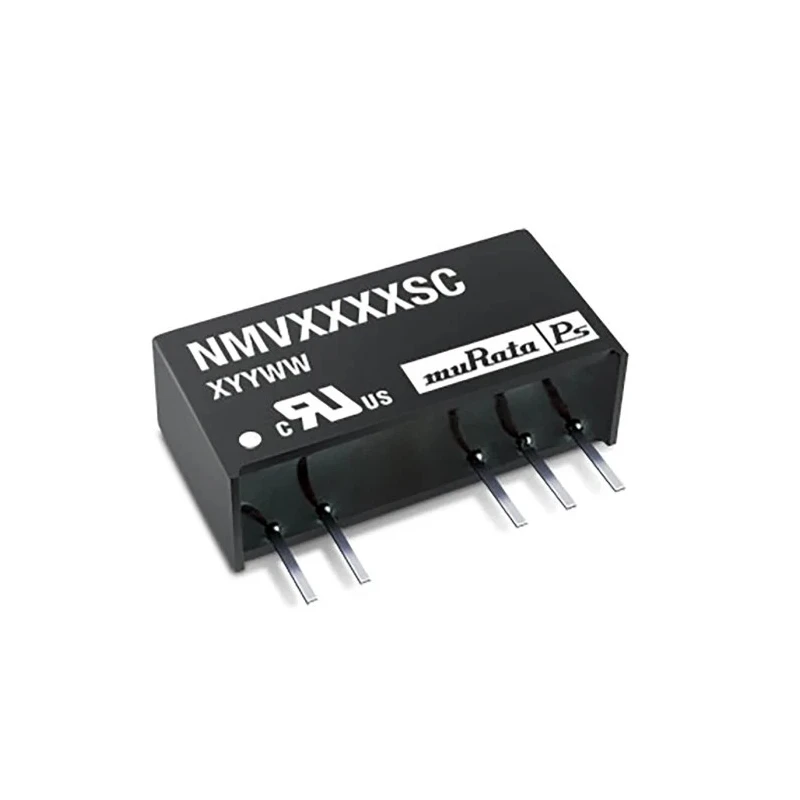

Murata Power Solutions High-Efficiency 1W SIP Dual Output DC/DC Converter 15 V dc, -15 V dc Output, 4.5-5.5 V dc NMV0515SC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMV DC/DC Converter, 15V dc |
| Brand | Murata Power Solutions |
| Efficiency | 79% |
| Length | 19.5mm |
| Model | NMV0515SC |
| Depth | 10mm |
| Gross Weight | 2.1g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMV |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 8.2mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | UL 60950, RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15, -15V dc |
| Output Current 1 | 33mA |
| Isolation Voltage | 3kV dc |
Key Features
- High efficiency converter with up to 79% efficiency ensuring minimal power loss.
- Dual unregulated isolated outputs suitable for various electronic applications.
- 7-pin DIP SIP7 plastic package with UL 94V-0 UL 60950 certified construction.
- 3 kV dc isolation voltage providing safe operation between input and output.
- Wide operating temperature range from -40°C to 85°C for reliability in harsh environments.
- No external components required simplifying system design and reducing assembly time.
- Ripple and noise maintained at 8.2 mV Pk-Pk for stable signal quality.
Product Description
Murata Power Solutions NMV0515SC is a high-performance 1W SIP single/dual output unregulated isolated DC/DC converter suitable for industrial, laboratory, HVAC, and electronic applications requiring compact reliable power conversion.
This converter delivers dual output voltages of 15 V dc and -15 V dc from a low input voltage range of 4.5 to 5.5 V dc. It comes in a through hole SIP7 DIP package designed for easy mounting with a robust plastic case constructed per UL 94V-0 flame standards.
With an isolation voltage rating of 3 kV dc and efficiency up to 79%, this component facilitates secure and efficient power supply designs without external components, saving PCB space and component count. It produces low ripple and noise at 8.2 mV peak to peak, providing clean power output for sensitive electronics.

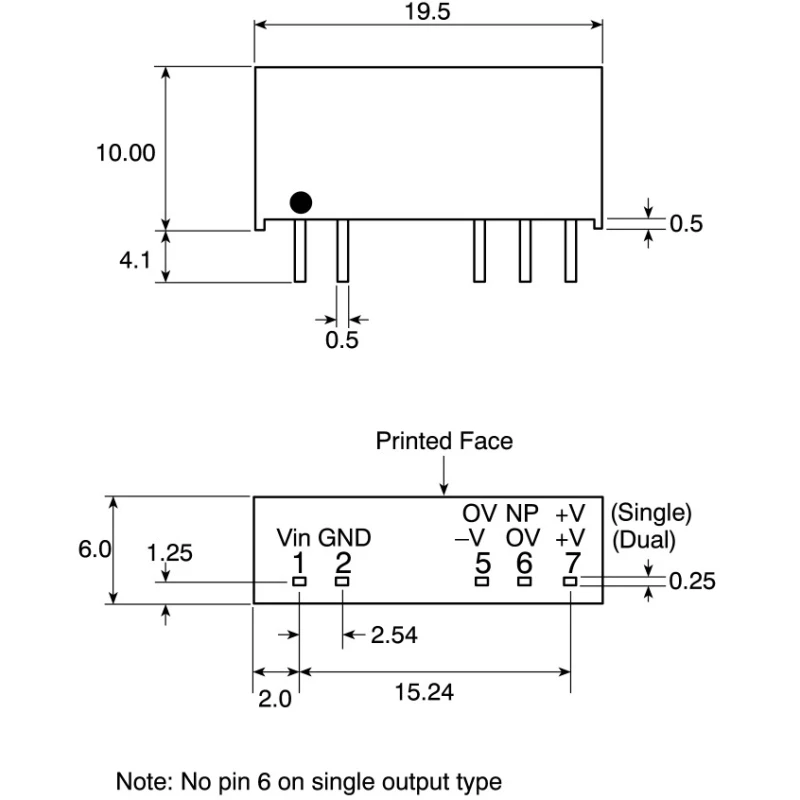

The compact size with dimensions of 19.5 x 19.5 x 10 mm makes it ideal for applications where board space is limited. Its operating temperature range from -40°C to 85°C supports operation in varied industrial environments.
High efficiency converter with up to 79% efficiency ensuring minimal power loss. Dual unregulated isolated outputs suitable for various electronic applications. 7-pin DIP SIP7 plastic package with UL 94V-0 UL 60950 certified construction.
3 kV dc isolation voltage providing safe operation between input and output. Compact dimensions: 19.5 mm length, 19.5 mm width, and 10 mm depth for space-constrained PCB layouts. Wide operating temperature range from -40°C to 85°C for reliability in harsh environments.
No external components required simplifying system design and reducing assembly time. Ripple and noise maintained at 8.2 mV Pk-Pk for stable signal quality.
This DC/DC Converter is commonly employed in industrial controls, telecommunications, embedded systems, and other electronic instrumentation requiring isolated power with high reliability and safety compliance.
Explore more Murata Power Solutions converters and other electronic components available at EnvMart for efficient power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 15 V dc and -15 V dc.
It has an efficiency rating of up to 79%, ensuring minimal power loss during operation.
The input voltage range for this unit is between 4.5 V dc and 5.5 V dc.
The dimensions are 19.5 mm in length, 19.5 mm in width, and 10 mm in depth.
It features an isolation voltage of 3 kV dc, providing safe operation between input and output.
The maximum operating temperature is 85°C, making it suitable for various industrial environments.
This unit uses a through hole mounting type, designed for easy installation.
The ripple and noise are maintained at 8.2 mV peak to peak, ensuring stable signal quality.
This converter has two outputs, providing both positive and negative voltage.
It is compliant with UL 60950 and RoHS standards, ensuring safety and environmental compliance.
This model is suitable for industrial controls, telecommunications, embedded systems, and other electronic instrumentation requiring isolated power.
The gross weight of this unit is 2.1 grams, making it lightweight for compact applications.
