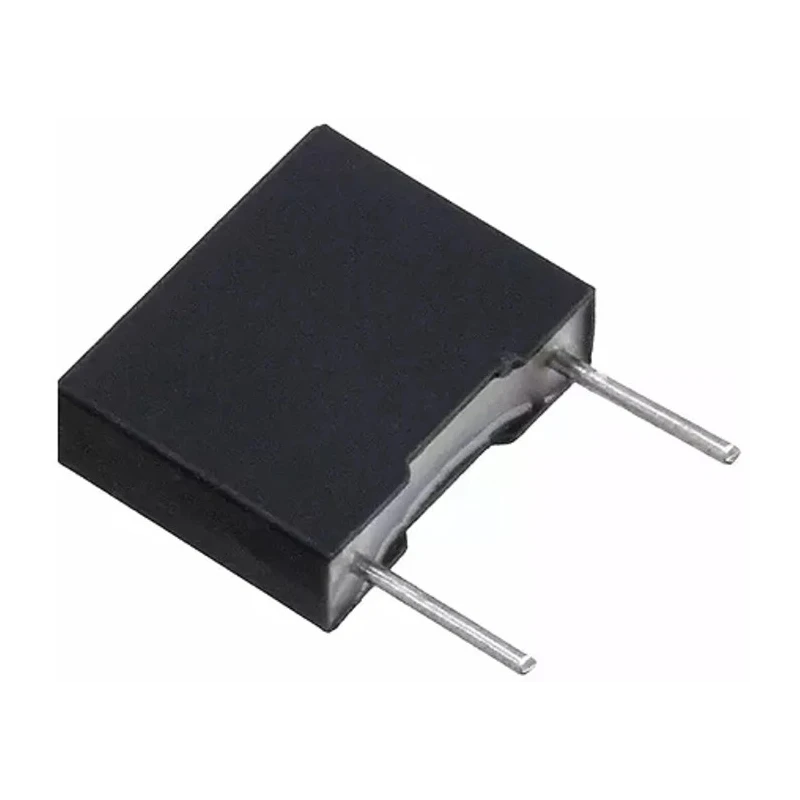

KEMET R76 Polypropylene Capacitor, ±5 % Tolerance, 220 nF Capacitance, 1 kV DC 600V AC Rated Voltage R76QR32204030J
Specifications
| Country of Origin | India |
|---|---|
| Capacitance Range | 100 pF - 15 μF |
| Voltage Range | 250 - 2000 V dc |
| Brand | KEMET |
| Height | 22mm |
| Length | 32mm |
| Model | R76QR32204030J |
| Packaging | Tray |
| Width | 13mm |
| Series | R76 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 220nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Lead Length | 30mm |
| Standards/Approvals | IEC 60286-2, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 600V ac |
| Rated DC Voltage | 1kV dc |
| Lead Pitch | 27.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±5%, ±10%, ±20% |
| Lead Spacing | 7.5 mm - 37.5 mm |
| Equivalent Series Resistance ESR | 14mΩ |
Key Features
- This capacitor features a radial terminal type and a lead pitch of 27.5 mm.
- It is encapsulated in a self-extinguishing plastic case compliant with UL 94V-0 standards.
- Rated for high frequency and high voltage use with a maximum operating temperature of 105°C.
- Suitable for automotive applications with AEC-Q200 certification.
- Offers a low dissipation factor of 0.0003% for high efficiency.
- Designed with double metallized polypropylene film electrodes for reliability.
- Ideal for suppression in switched mode power supplies and snubber circuits.
- Lead length is 30 mm with a pin diameter of 0.8 mm, ensuring compatibility with PCB mounting.
Product Description
The KEMET R76QR32204030J Polypropylene Capacitor is a high-quality film capacitor designed for demanding electronic applications requiring stable performance and durability.
This capacitor has a capacitance of 220 nF with a tolerance of ±5 %, ensuring precision in filtering and timing circuits. It is rated for 1 kV DC voltage and 600V AC voltage, suitable for high voltage industrial and automotive electronics.
Featuring radial terminals, a lead pitch of 27.5 mm, and a lead length of 30 mm, this capacitor is easily integrated into PCB assemblies. The encapsulated plastic case is self-extinguishing and meets UL 94V-0 flammability standards, providing safety in high temperature environments up to 105°C.
Constructed using double metallized polypropylene film electrodes, the R76 series capacitors excel in high frequency applications and exhibit excellent self-healing properties. Their low dissipation factor of 0.0003% supports efficient energy storage with minimal losses.
The capacitor complies with IEC 60286-2 and RoHS standards, with additional automotive grade certification AEC-Q200, making it well-suited for automotive circuits and systems. Radial terminal type with 2 pins for secure electrical connection.
Lead diameter of 0.8 mm allows for reliable soldering. Lead spacing ranges from 7.5 mm to 37.5 mm across series variants, with this model at 27.5 mm. Operating temperature range from -55°C to 105°C ensures broad environmental compatibility.
Applications include switched mode power supplies, deflection circuits for televisions, snubber circuits, and SCR commutation. This product is supplied in tray packaging, facilitating easier handling and assembly in manufacturing processes.
Ensure your designs utilize the KEMET R76 series capacitors for robust, high voltage film capacitor solutions in industrial, automotive, and consumer electronics. Browse the Film Capacitors category on EnvMart for further options and technical details.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 220 nF with a tolerance of ±5%.
It is rated for 1 kV DC and 600V AC, making it suitable for high voltage applications.
The capacitor measures 32 mm in length, 13 mm in width, and 22 mm in height.
The maximum operating temperature is 105°C, allowing it to function in high-temperature environments.
It features a radial terminal type with a lead pitch of 27.5 mm and a lead length of 30 mm.
The dissipation factor is 0.0003%, which supports efficient energy storage with minimal losses.
It complies with IEC 60286-2 and RoHS standards, along with automotive certification AEC-Q200.
The lead diameter is 0.8 mm, ensuring reliable soldering during installation.
The minimum operating temperature is -55°C, providing broad environmental compatibility.
It is suitable for applications such as switched mode power supplies, deflection circuits, and snubber circuits.
The equivalent series resistance (ESR) is 14 mΩ, which is beneficial for high frequency applications.
This product is supplied in tray packaging, facilitating easier handling and assembly in manufacturing processes.
