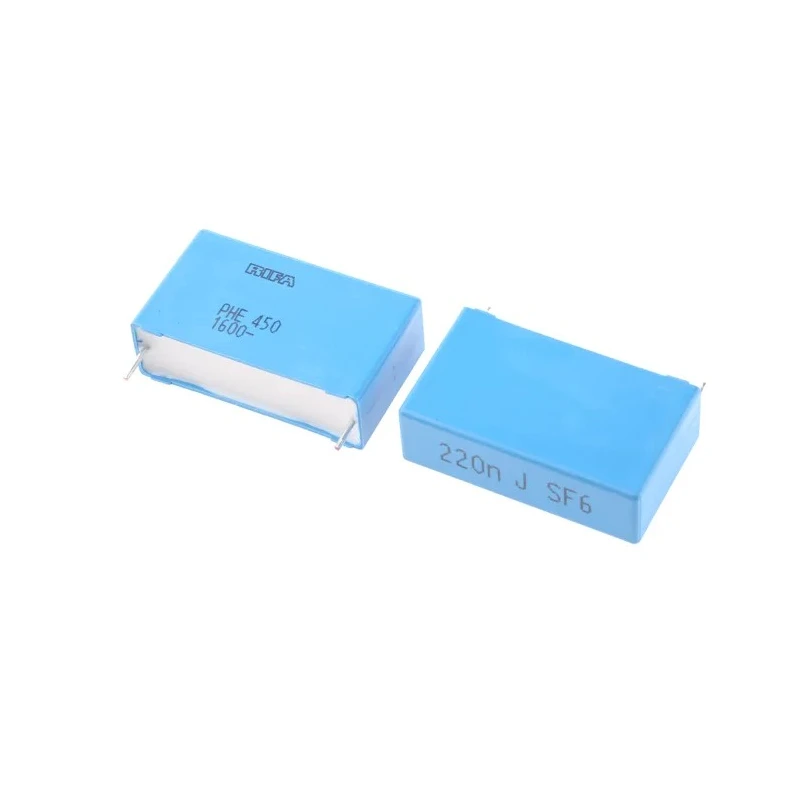

KEMET PHE450 Film Capacitor, ±5 %, 220 nF 1.6 kV DC 180 V AC Radial Lead Through Hole PHE450

KEMET PHE450 Film Capacitor, model PHE450, is a high-quality metallized polypropylene film capacitor designed for industrial and electronic applications requiring stability and durability. It has a capacitance of 220 nF with a tolerance of ±5%, and is rated for a DC voltage of 1.6 kV and an AC voltage of 180 V. This capacitor features a radial through-hole mount with a 37.5 mm lead pitch and 6 mm lead length, allowing straightforward installation on printed circuit boards.

Encapsulated in a flame-retardant resin material meeting UL 94 V-0 specifications, this film capacitor is self-extinguishing, enhancing safety under high current stresses. It is specifically suited for pulse and snubber circuits, commonly used in switch mode power supplies and television deflection circuits.

Operating within a wide temperature range of -55°C to 105°C, the PHE450 capacitor maintains reliable performance under harsh environmental conditions. It has a low dissipation factor of 0.0003%, minimizing energy losses during operation.

The dimensions of this component are 41 mm in length, 24 mm in height, and 13 mm in width, with a lead diameter of 1 mm for robust mechanical connections. This product complies with RoHS directives, reflecting its environmentally friendly design and manufacture.

Double metallized polypropylene film pulse capacitor construction. Capacitance tolerance of ±5% ensures accuracy. Radial lead design with 37.5 mm lead pitch and 6 mm lead length. Encapsulated in UL 94 V-0 compliant self-extinguishing resin.

Operating temperature range from -55°C to 105°C enables versatile use. Low dissipation factor of 0.0003% for efficient performance. RoHS compliant and manufactured in Finland.

This film capacitor is ideal for industrial electronics, power supplies, telecommunications, and consumer electronics, offering reliable performance in pulse and timing circuits. Explore more Film Capacitors and related components in the electronics section at EnvMart for your engineering and production requirements.
