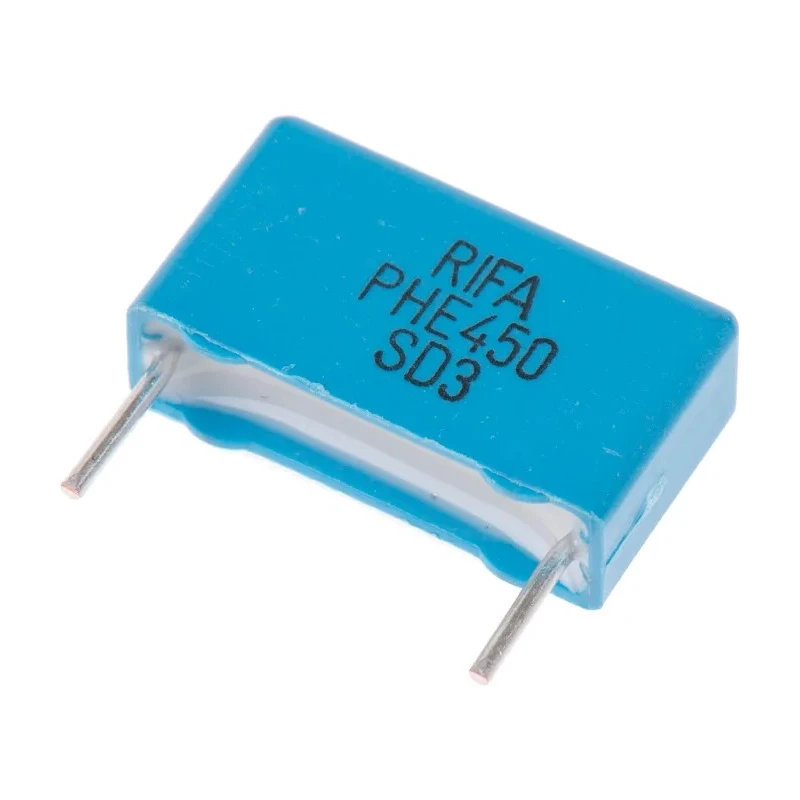

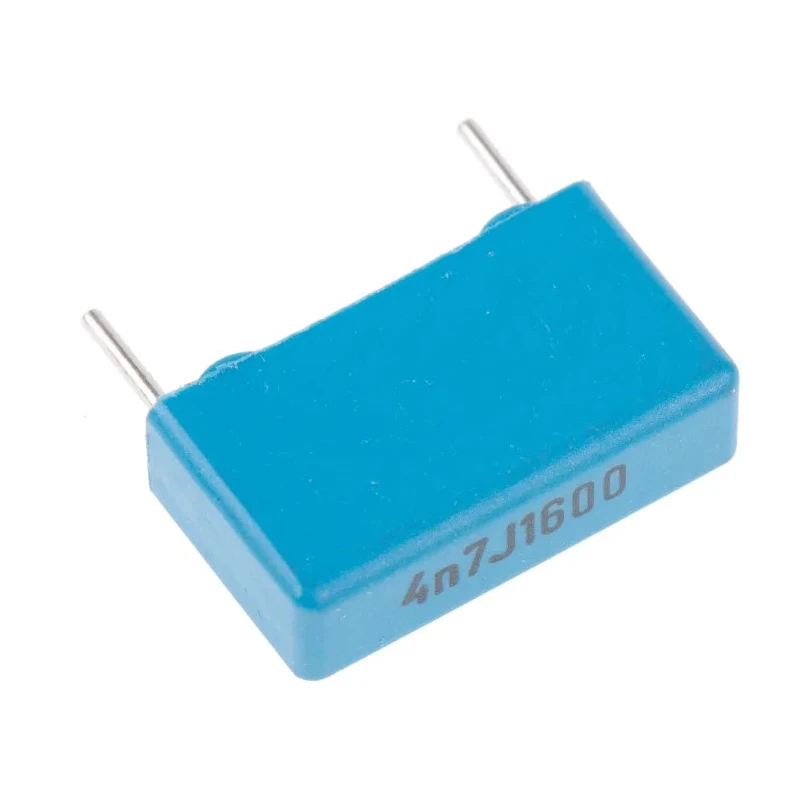

KEMET PHE450 Film Capacitor ±5 % 4.7 nF 1.6 kV DC 180V AC Radial Through Hole PHE450

KEMET PHE450 Film Capacitor PHE450 is a metallized polypropylene film capacitor designed for demanding industrial applications. It features a capacitance of 4.7 nF with a tight tolerance of ±5%. Its rated DC voltage of 1.6 kV and AC voltage of 180 V allow it to operate reliably under high voltage conditions.

The radial through-hole format with 15 mm lead pitch and 6 mm lead length allows secure mechanical and electrical connection in printed circuit boards. The capacitor body dimensions are 18 mm in length, 10.5 mm in height, and 5.5 mm in width, optimized for compact circuit design.

This capacitor is encapsulated in a self-extinguishing resin material compliant with UL 94 V-0 requirements, ensuring enhanced fire safety and insulation durability. Operating temperature ranges from -55°C to 105°C, enabling usage in harsh environments.

The PHE450 series capacitors are commonly used in pulse and snubber circuits and protection circuits of switch-mode power supplies as well as deflection circuits in televisions, where high current stress resistance is critical.

Double metallized polypropylene film pulse capacitor. Radial lead type with 15 mm lead pitch and 0.8 mm lead diameter. Rated for 1.6 kV DC and 180 V AC voltage conditions. Operates reliably from -55°C to 105°C ambient temperature.

Encapsulated to meet UL 94 V-0 flammability standard. Available in tape and reel packaging suitable for automated insertion. Compact dimensions allow versatile PCB layout integration. Application in power electronics, industrial, and consumer electronic equipment.

This KEMET PHE450 Film Capacitor combines electrical performance and safety features suitable for demanding industrial, electronic manufacturing, and instrumentation applications. Browse more Film Capacitors in the Electronics Components category at EnvMart for complementary solutions.
