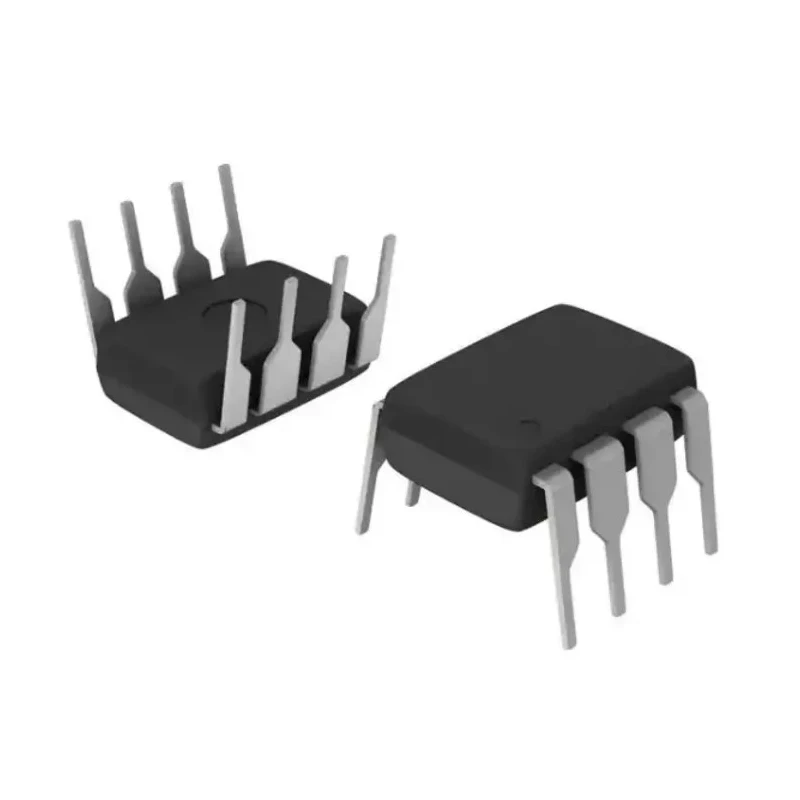

Vishay DC Input 4-Channel Optocoupler Through Hole 8-Pin DIP K825P
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Vishay |
| Model | K825P |
| Packaging | Tube |
| Mount Type | Through Hole |
| Series | K |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 4 |
| Standards/Approvals | DIN, UL, EN |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 300μs |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 250μs |
| Minimum Current Transfer Ratio | 800% |
| Isolation Voltage | 5300V |
Key Features
- The device features 4 input channels for efficient signal control.
- It has a maximum input forward voltage of 1.4V and input current of up to 60mA.
- Isolation voltage is rated at 5300V ensuring high safety standards.
- Typical rise and fall times are 300μs and 250μs respectively for precise signal timing.
- Operating temperature range spans from -40°C to 100°C for diverse environmental applications.
- It has a high current transfer ratio ranging between 600% minimum and 800% maximum.
- The package type is an 8-pin Dual Inline Package (DIP) for through hole mounting.
- The product complies with DIN, UL, and EN standards for quality assurance.
Product Description
Vishay K825P DC Input 4-Channel Optocoupler is a reliable component designed with photodarlington optically coupled to a gallium arsenide infrared emitting diode, mounted in an 8-pin plastic Dual Inline Package (DIP) for through hole mounting. It provides high safety and performance through a fixed lead frame design ensuring optimum distance between input and output.
This device supports a forward current rating of 60mA with a maximum forward voltage of 1.4V. Its isolation voltage is robust at 5300 volts, suitable for isolating circuits with high voltage differences. The typical rise time is 300 microseconds and fall time is 250 microseconds, enabling fast response in signal processing.
The operating temperature ranges from -40°C to 100°C, making it fit for use in environments with wide temperature variations. It achieves a current transfer ratio between 600% and 800%, enhancing signal amplification in digital and communication circuits.
Vishay's K825P optocoupler is commonly employed in modems, answering machines, programmable logic controllers, and other industrial applications requiring electrical isolation combined with signal integrity. This optocoupler is verified to meet DIN, UL, and EN standards, ensuring dependable quality and safety.
The device is housed in a standard 8-pin DIP package for easy integration on through hole PCBs. A part of the Vishay series 'K', it does not comply with automotive standards. Country of origin is Malaysia.
This product is essential for applications requiring electrical isolation between input and output signals in industrial, commercial, and communication equipment. Explore the full range of Vishay Optocouplers and enhance your circuits with trusted reliability at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for the Vishay K825P optocoupler is 60mA.
The isolation voltage of the K825P is rated at 5300V, providing high safety standards for electrical isolation.
This model operates within a temperature range of -40°C to 100°C, making it suitable for diverse environmental applications.
The typical rise time is 300μs and the fall time is 250μs, enabling precise signal timing in applications.
The K825P features 4 input channels for efficient signal control.
The maximum forward voltage for the Vishay K825P is 1.4V.
The current transfer ratio for this optocoupler ranges between 600% minimum and 800% maximum.
This optocoupler is housed in an 8-pin Dual Inline Package (DIP) for through hole mounting.
The K825P complies with DIN, UL, and EN standards for quality assurance.
The country of origin for the K825P is Malaysia.
The mounting type for the K825P is through hole, suitable for integration on PCBs.
This optocoupler is commonly employed in modems, answering machines, programmable logic controllers, and other industrial applications requiring electrical isolation.
