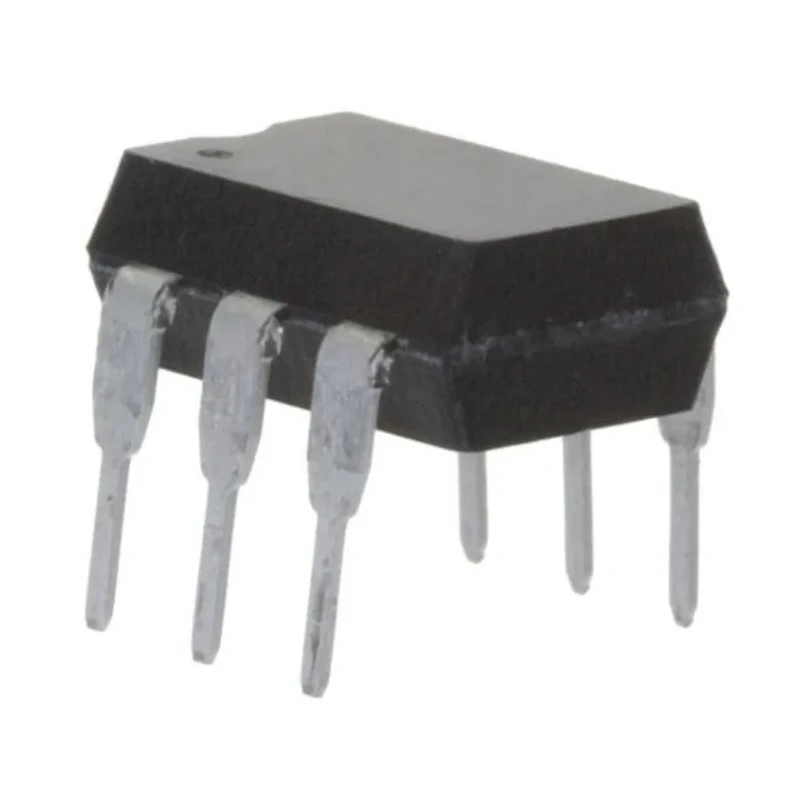

Vishay Optocoupler Through Hole 6-Pin DIP CNY75A

Vishay CNY75A optocoupler is a high isolation component designed for signal transfer applications requiring electrical isolation. It consists of a gallium arsenide infrared-emitting diode optically coupled to a phototransistor enclosed in a 6-pin plastic dual inline package (DIP), suitable for through hole mounting on printed circuit boards.

This device provides an isolation voltage of up to 5000Vrms, allowing safe interfacing between high and low voltage circuits. It supports a maximum forward voltage of 1.6V and can handle input currents up to 130mA. The optocoupler operates effectively over a wide temperature range, from -55°C to 110°C, making it suitable for various industrial and commercial applications.

Switching characteristics include a typical rise time of 2.5 microseconds and a fall time of 2.7 microseconds, enabling responsive operation in digital and analog circuits. The current transfer ratio (CTR) ranges from a minimum of 63% to a maximum of 320%, offering flexible signal amplification capabilities.

The CNY75 series is tested to meet multiple international standards including UL1577 for optical isolators, BS EN 60950 safety requirements, and DIN EN 60747-5-5, ensuring reliability and safety compliance in demanding environments.

This optocoupler is widely used in industrial control systems, power supply circuits, signal isolation, and microprocessor input/output isolation. Its through hole mount and common DIP format facilitate easy integration into legacy and new electronic designs.

The device features a phototransistor optically coupled with a gallium arsenide infrared LED. It supports a maximum forward voltage of 1.6V and maximum input current of 130mA. Isolation voltage rating is 5000Vrms ensuring high isolation.

Temperature range is from -55°C minimum operating temperature up to 110°C maximum operating temperature. Typical rise and fall times are 2.5μs and 2.7μs respectively for good switching performance. Current transfer ratio ranges from 63% minimum to 320% maximum ensuring efficient signal transfer.

Complies with multiple standards including UL1577, BS EN 60950, and DIN EN 60747-5-5. Comes in a plastic dual inline package (DIP) ideal for through hole PCB mounting.

For customers requiring reliable Optocouplers for signal isolation in electronics, Vishay's CNY75A provides a proven solution with robust electrical and environmental performance. Browse more Vishay branded optoelectronic components and related products at EnvMart for industrial, laboratory, and commercial electronics applications.
