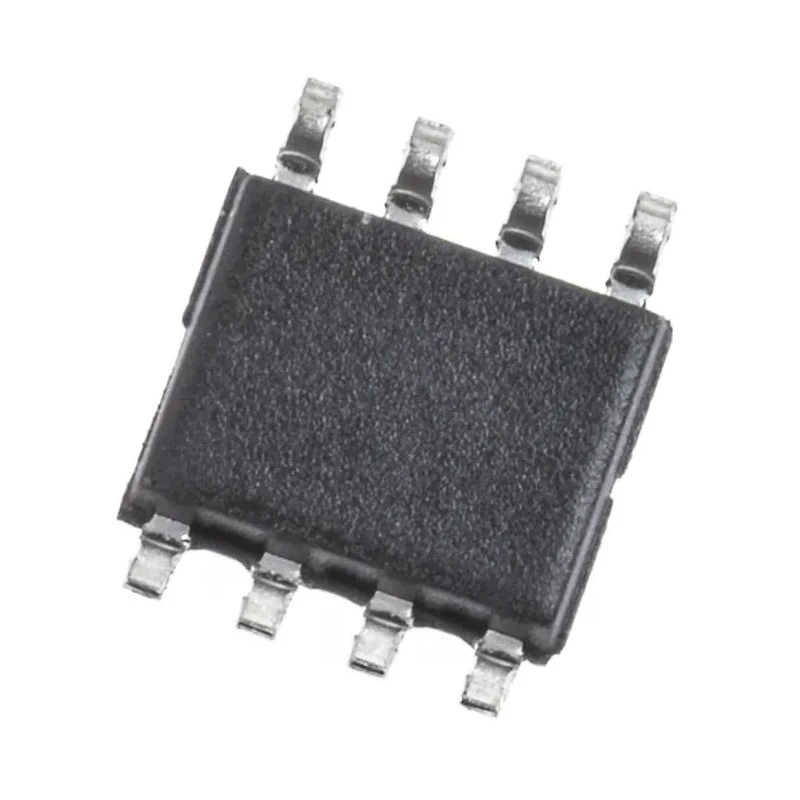

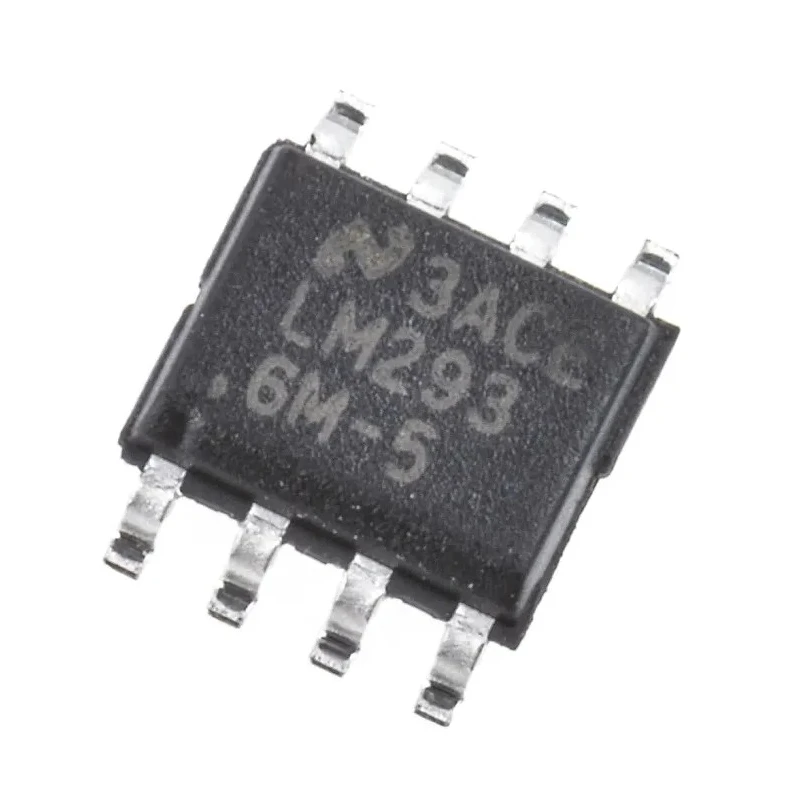

Texas Instruments Low Dropout (LDO) Linear Voltage Regulator 40V 100mA Surface Mount SOIC-8 LM2936M-5.0/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 40V SOIC 8-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM2936M-5.0/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | LM2936 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 15μA |
| Minimum Input Voltage | 4V |
| Pin Count | 8 |
Key Features
- LDO linear voltage regulator delivering up to 100mA output current.
- Input voltage range from 4V to 40V supports varied power sources.
- Extremely low quiescent current of 15μA ensures energy efficiency.
- Compact SOIC-8 surface mount package with small footprint.
- Can operate at ambient temperatures up to 125°C for robustness.
- Positive polarity for stable and reliable voltage output.
- Low dropout voltage improves efficiency over conventional regulators.
- Excellent line voltage regulation and power supply ripple rejection.
Product Description
Texas Instruments LM2936M-5.0/NOPB is a high-performance low dropout (LDO) linear voltage regulator specifically engineered for delivering a stable 5V regulated output from input voltages ranging between 4V and 40V. Housed in a compact SOIC-8 surface mount package with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height, this device supports a maximum operating temperature of 125°C, making it ideal for industrial, commercial, and consumer electronic applications.
This LDO regulator features a very low quiescent current of only 15μA, enabling efficient power usage and minimizing heat dissipation. Its positive polarity design ensures consistent voltage regulation, while its low dropout voltage performance allows it to maintain output regulation even when the input voltage approaches the output voltage, a feature that conventional linear regulators cannot provide as effectively.
Key benefits of the LM2936M-5.0/NOPB include excellent line voltage regulation and power supply ripple rejection (PSRR), significantly reducing output voltage noise and enhancing device performance in sensitive circuits.
This voltage regulator is widely used in power management applications in industrial machinery, automotive electronics, communication devices, and instrumentation equipment that require reliable low-noise fixed voltage supply.
LDO Linear Voltage Regulator offering up to 100mA output current. Operates with input voltage range from 4V to 40V. Low quiescent current at 15μA. Compact SOIC-8 surface mount form factor. Maximum operating temperature of 125°C.
Positive polarity linear regulator. High line regulation and PSRR performance. Explore additional Texas Instruments Voltage Regulators and power management ICs in the EnvMart catalog for specialized industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers up to 100mA of output current.
It operates with an input voltage range from 4V to 40V.
The quiescent current is extremely low at 15μA, which enhances energy efficiency.
The dimensions of the SOIC-8 package are 4.9mm in length, 3.9mm in width, and 1.45mm in height.
It can operate at a maximum ambient temperature of 125°C.
This model has a positive polarity design for stable voltage output.
The low dropout voltage improves efficiency, allowing it to maintain output regulation even when the input voltage is close to the output voltage, which conventional regulators cannot do as effectively.
It is widely used in power management applications in industrial machinery, automotive electronics, communication devices, and instrumentation equipment.
It features excellent line voltage regulation and power supply ripple rejection, significantly reducing output voltage noise.
This voltage regulator has a pin count of 8.
It uses surface mount technology, specifically in a SOIC package.
The country of origin for this product is India.
