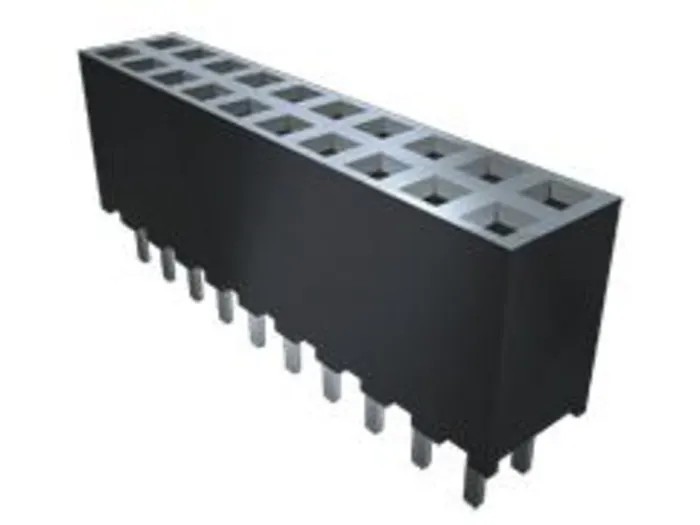

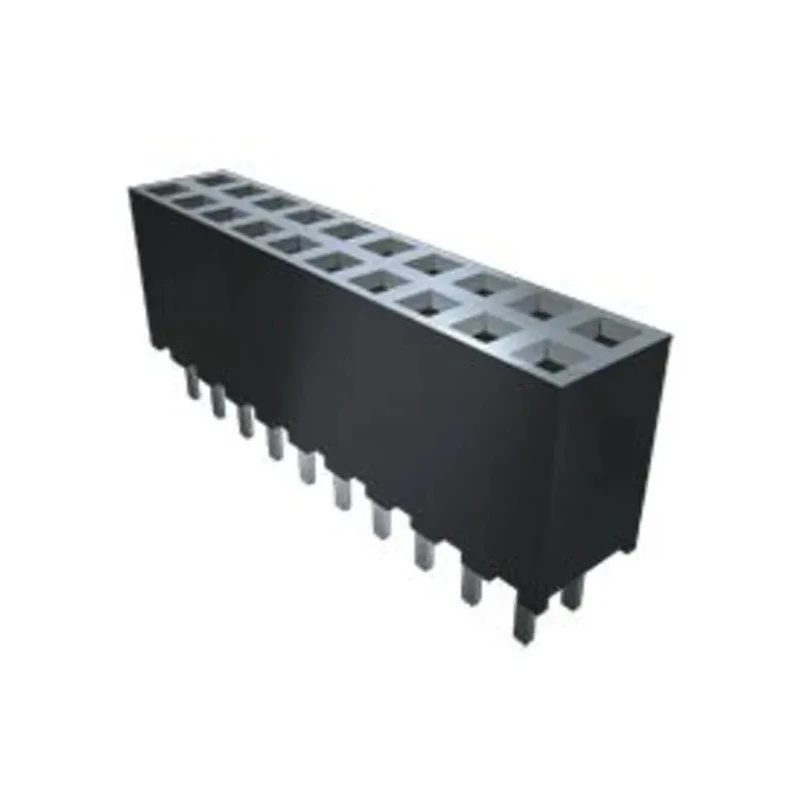

Samtec SQW Series Straight Through Hole PCB Socket 20-Contact 2 Row 2 mm Pitch Solder SQW-110-01-F-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 281V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.8A |
| Model | SQW-110-01-F-D |
| Mount Type | Through Hole |
| Special Features | FleXYZ™ design allows design flexibility in all three axes |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SQW |
| Termination | Through-hole, surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
Key Features
- Constructed with Liquid Crystal Polymer housing for high durability.
- Supports a current rating of 3.8A and voltage up to 281V.
- Features a board-to-board connector system with female bronze contacts plated in gold.
- Operates reliably between -55°C to 125°C temperature range.
- Offers a FleXYZ™ design allowing flexibility in all three axes during installation.
- Designed with straight orientation for vertical mounting.
- Termination is via through-hole soldering ensuring strong electrical connections.
- Compatible with one to six rows with up to 50 pins per row for high I/O count applications.
Product Description
Samtec SQW-110-01-F-D is a high-quality straight through hole PCB socket from the SQW series designed for reliable interconnection in electronic assemblies. This PCB socket features 20 contacts arranged in 2 rows with a precise 2 mm pitch, ideal for board-to-board connection systems.
The housing is made of Liquid Crystal Polymer, providing excellent mechanical stability and resistance to wear. Contacts are made of bronze and plated with gold to ensure superior conductivity and corrosion resistance.
Operable in a wide temperature range from -55°C to 125°C, this socket supports currents up to 3.8A and voltages up to 281V, suitable for demanding industrial and electronic applications.
The connector uses a Tiger Buy™ contact system that enhances signal integrity and connection reliability. Its FleXYZ™ design grants design flexibility in all three axes, simplifying installation and accommodating PCB layout variances.
Termination is through through-hole soldering which provides a secure mechanical and electrical connection to printed circuit boards. This socket is designed for vertical orientation with a straight form factor.
Applications include use in electronic equipment assembly, industrial manufacturing, and high-density PCB interconnection tasks, facilitating robust and maintainable board connections.
Constructed with Liquid Crystal Polymer housing for high durability. Supports a current rating of 3.8A and voltage up to 281V. Features a board-to-board connector system with female bronze contacts plated in gold. Operates reliably between -55°C to 125°C temperature range.
Offers a FleXYZ™ design allowing flexibility in all three axes during installation. Designed with straight orientation for vertical mounting. Termination is via through-hole soldering ensuring strong electrical connections.
Compatible with one to six rows with up to 50 pins per row for high I/O count applications. Contact system Tiger Buy™ enhances connection reliability and durability. Suitable for industrial and electronic component manufacturing requiring reliable PCB interconnection.
Explore more high-quality PCB Sockets and connectors from Samtec on EnvMart to support your industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 281V.
This PCB socket supports a current rating of 3.8A.
It operates reliably within a temperature range of -55°C to 125°C.
Termination for this socket is via through-hole soldering.
The contacts in this socket are arranged with a pitch of 2 mm.
This model features 20 contacts arranged in 2 rows.
The housing is made of Liquid Crystal Polymer, and the contacts are made of bronze plated with gold.
The orientation of this socket is straight, designed for vertical mounting.
It includes a FleXYZ™ design that allows flexibility in all three axes during installation.
This socket utilizes a board-to-board connector system with female contacts.
The country of origin for this model is India.
This socket is suitable for electronic equipment assembly, industrial manufacturing, and high-density PCB interconnection tasks.
