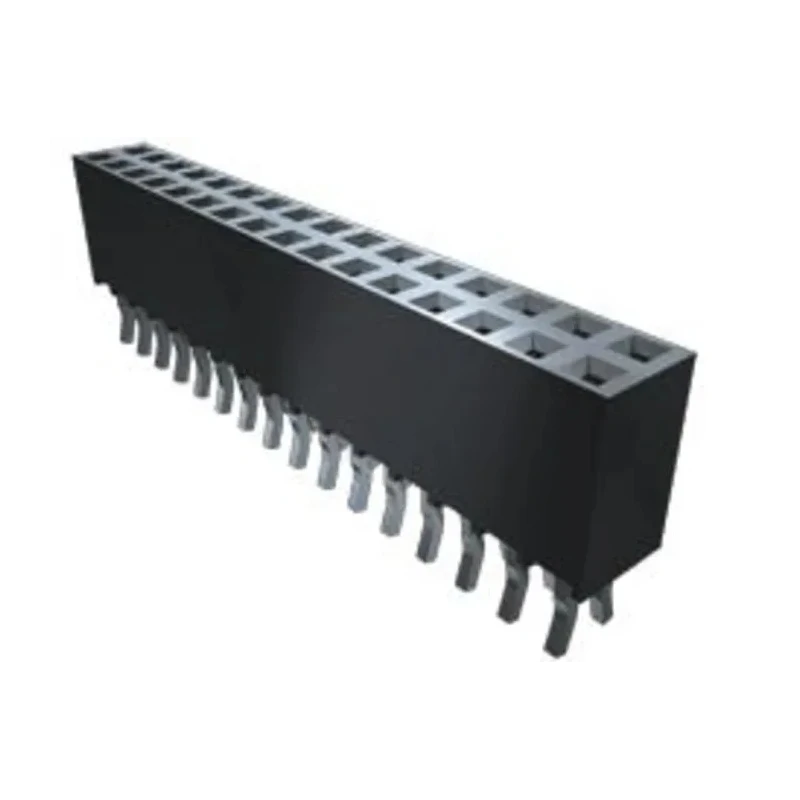

Samtec PCB Socket 46-Contact 2 Row 2.54 mm Pitch Through Hole Solder SSQ-123-03-T-D

Name: Samtec PCB Socket 46-Contact 2 Row 2.54 mm Pitch Through Hole Solder SSQ-123-03-T-D
Brand: Samtec
SKU: 99074
Price: 6.66 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	655V
Brand	Samtec
Orientation	Straight
Current	6.3A
Model	SSQ-123-03-T-D
Mount Type	Through Hole
Special Features	Standard and low insertion force contacts with .025" (0.635 mm) square tails for self-nesting applications
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	SSQ
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	46
Contact Gender	Female
Connector System	Board-to-Board
Contact System	Tiger Buy™
Row Pitch	2.5mm

Key Features

Supports a current rating of 6.3A for reliable electrical performance.
Constructed with a liquid crystal polymer housing for durability and stability.
Features bronze contact material plated with tin for enhanced conductivity and corrosion resistance.
Offers vertical, straight orientation supporting board-to-board connector systems.
Designed for operating temperatures ranging from -55°C to 105°C, suitable for demanding environments.
Utilizes standard and low insertion force contacts with .025" square tails for self-nesting applications.
Compatible with single, double, and triple row configurations up to 150 pins.
Termination type is through-hole solder for secure PCB attachment.

Product Description

Samtec SSQ-123-03-T-D is a high-quality PCB socket designed for electronic component assembly requiring a 46-contact, 2-row configuration with a pitch of 2.54 mm. Manufactured using durable liquid crystal polymer housing, it ensures mechanical stability and reliable electrical insulation. The socket is constructed with bronze contacts plated in tin, delivering excellent electrical conductivity and resistance to corrosion.

This PCB socket supports a current rating of 6.3A and a voltage rating of 655V, making it suitable for various industrial and commercial electronic applications. It is designed for through-hole solder termination, offering a secure mechanical and electrical connection to printed circuit boards.

The SSQ series features standard and low insertion force contacts with .025" (0.635 mm) square tails, which facilitate self-nesting applications and ease of assembly. The orientation is straight and vertical, ideal for board-to-board connector systems. It is suitable for use in manufacturing, electronics assembly, telecommunications, and industrial control systems.

Operating temperature ranges from -55°C to 105°C, providing reliable performance in harsh environments. This socket supports use in single, double, or triple row configurations up to 150 pins, offering flexibility for different electronic designs.

Through-hole solder termination for robust PCB mounting. High current and voltage ratings ensure reliable operation. Material selection supports durability and thermal stability. Designed for vertical orientation in board-to-board systems.

Standard and low insertion contacts improve assembly and function.

The Samtec SSQ-123-03-T-D PCB socket is an essential component in precision electronics, enabling secure and efficient connections. Available with technical documentation and 3D models to aid in design and manufacturing integration. For users requiring quality and performance in PCB Socketry, this component from Samtec represents a reliable choice within the electronics components category at EnvMart.
