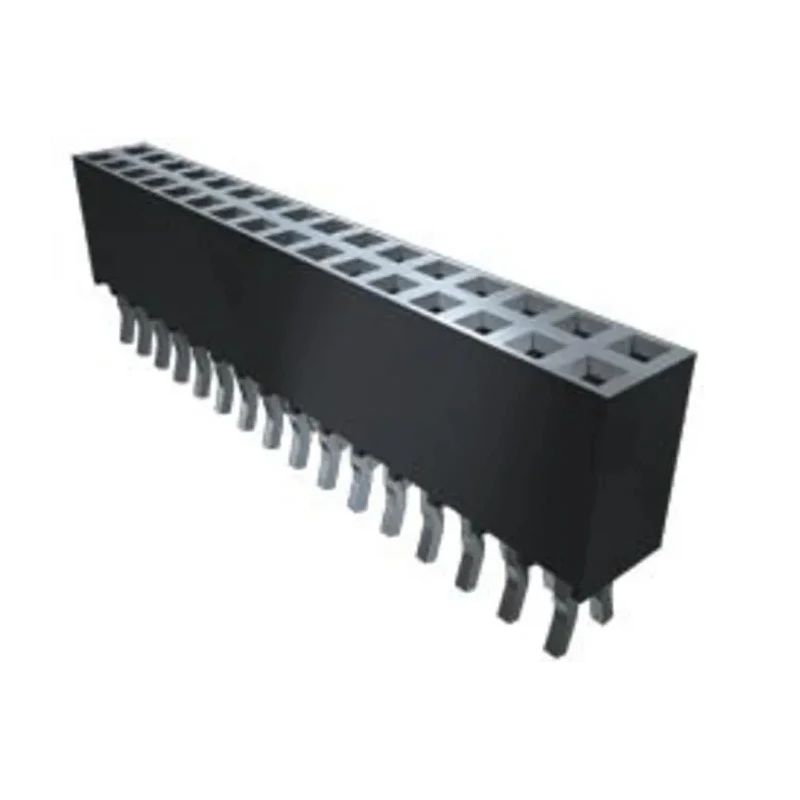

Samtec PCB Socket 26-Contact 2 Row 2.54 mm Pitch Through Hole Solder SSQ-113-03-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 655V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.3A |
| Model | SSQ-113-03-G-D |
| Mount Type | Through Hole |
| Special Features | Standard and low insertion force contacts with .025" (0.635 mm) square tails for self-nesting applications |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SSQ |
| Termination | Through-hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Buy™ |
| Row Pitch | 2.5mm |
Key Features
- The socket supports a current rating of 6.3 A and voltage of 655 V.
- Features a liquid crystal polymer housing for durability and high temperature resistance.
- Contact material is bronze with gold plating ensuring reliable conductivity.
- Suitable for board-to-board connector systems with a contact system Tiger Buy™.
- Operates reliably within a temperature range from -55°C to 125°C.
- Includes standard and low insertion force contacts with 0.635 mm square tails for self-nesting applications.
- Termination type is through-hole soldering for secure mounting.
Product Description
Samtec SSQ-113-03-G-D PCB Socket is a 26-contact, 2-row through-hole socket designed for board-to-board connection with a 2.54 mm pitch and solder termination. It features a durable liquid crystal polymer housing and bronze female contacts plated with gold to ensure excellent electrical performance and corrosion resistance. Ideal for electronic component assemblies requiring robust and reliable connections.
This socket operates effectively over a wide temperature range from -55°C to 125°C, suitable for demanding industrial and electronic environments. It supports a current of 6.3 A and a voltage rating of 655 V.
The design incorporates Tiger Buy™ contact system with options for standard and low insertion force contacts, featuring 0.025" (0.635 mm) square tails optimized for self-nesting applications. This allows ease of assembly and maintenance in complex printed circuit board layouts.
Its through-hole mounting type and straight orientation ensure secure and stable connections on PCBs. The socket series SSQ is well-suited for electronic manufacturing, industrial automation, and telecommunications equipment.
The socket supports a current rating of 6.3 A and voltage of 655 V. Housing made of liquid crystal polymer for enhanced durability. Bronze female contacts with gold plating offer excellent conductivity. Operating temperature range from -55°C to 125°C.
Standard and low insertion force contacts with 0.635 mm square tails improve assembly. Through-hole solder termination guarantees secure PCB mounting. Ideal for board-to-board electronic connector applications. Explore additional Samtec connector products and related electronic components in the EnvMart industrial catalog to find compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current rating of 6.3 A and a voltage rating of 655 V.
It operates effectively within a temperature range from -55°C to 125°C.
The housing is made of liquid crystal polymer, while the contacts are bronze with gold plating for reliable conductivity.
This model features through-hole solder termination for secure mounting on PCBs.
The socket has a total of 26 contacts arranged in 2 rows.
The pitch size for this socket is 2.54 mm.
It utilizes a board-to-board connector system with a Tiger Buy™ contact system.
Yes, it includes standard and low insertion force contacts with 0.635 mm square tails for self-nesting applications.
This socket has a straight orientation for mounting.
The country of origin for this socket is India.
It is ideal for electronic manufacturing, industrial automation, and telecommunications equipment requiring robust connections.
The contact gender for this model is female.
