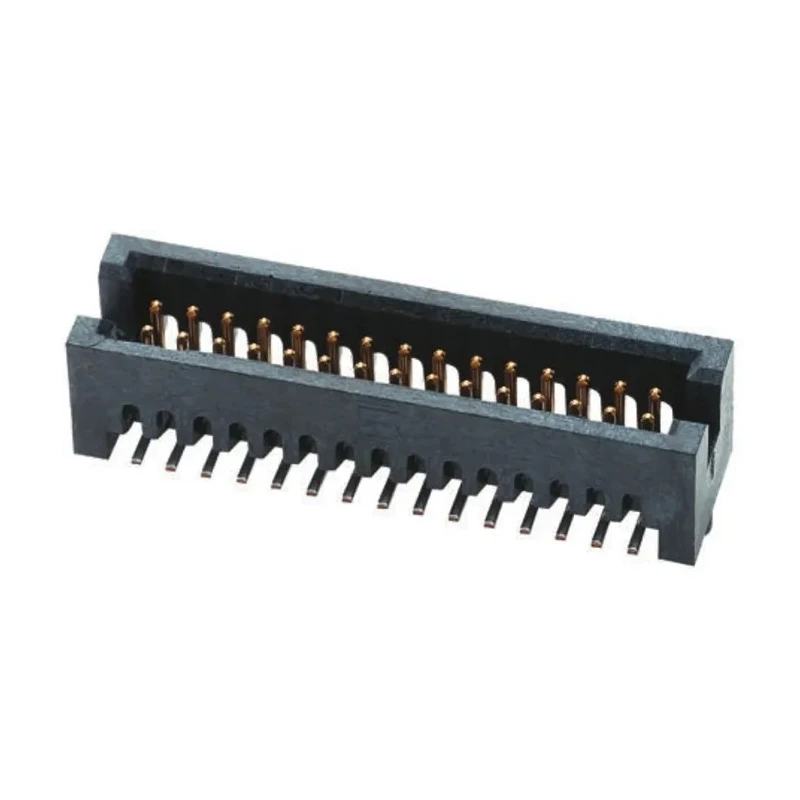

Samtec TFM Series Straight Surface PCB Header 40 Contacts 1.27 mm Pitch 2 Row Shrouded TFM-120-02-S-D-A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2A |
| Model | TFM-120-02-S-D-A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- This shrouded header features a 1.27 mm pitch and 2-row configuration for compact circuit design.
- Manufactured with liquid crystal polymer housing for enhanced durability in harsh environments.
- The contact material is phosphor bronze plated with gold, ensuring excellent conductivity and corrosion resistance.
- Rated for 2A current and can operate within a temperature range from -55°C to 125°C.
- The header is designed for surface mount technology (SMT), providing easy solder termination.
- It supports a voltage rating of 350V, suitable for a wide range of electronic applications.
- Male contact gender ensures compatibility with corresponding connectors and sockets.
- Ideal for industrial, electronic manufacturing, and PCB assembly use cases.
Product Description
Samtec TFM-120-02-S-D-A is a straight surface mount PCB header designed for high-reliability board-to-board and wire-to-board connections. This shrouded connector features 40 male contacts arranged in 2 rows with a 1.27 mm pitch, catering to compact and precise electronic assemblies.
The housing material consists of liquid crystal polymer, offering exceptional mechanical strength and resistance to thermal stress. The contacts are made of phosphor bronze with gold plating to ensure superior electrical performance and longevity in industrial and commercial electronic systems.
Rated for 2 amps of current and a maximum voltage of 350 volts, this PCB header supports a broad range of signal and power requirements. It is engineered to operate reliably between -55°C and 125°C, making it suitable for demanding environments in electronics manufacturing, telecommunications, and control systems.
Surface mounting and solder termination simplify integration into printed circuit boards, supporting automated assembly processes. The shrouded design provides enhanced mating guidance and protection against mechanical damage.
This Samtec TFM series header finds applications in a variety of sectors including industrial electronics, telecommunications, automation, and instrumentation, offering a balance of performance, reliability, and ease of use.
This shrouded, surface mount PCB header enables secure board-to-board and wire-to-board connections. Featuring 40 gold-plated phosphor bronze contacts organized in 2 rows with 1.27 mm pitch. Constructed from liquid crystal polymer housing for durability in harsh operating conditions.
Rated for 2A current with voltage endurance up to 350V and temperature range of -55°C to 125°C. Designed for solder termination and straight orientation to optimize PCB layout.
For designers seeking reliable connector solutions, the Samtec TFM-120-02-S-D-A PCB header combines robust material selection with precise mechanical and electrical specifications. This makes it an excellent choice for high-density PCB assemblies requiring enduring connections in industrial, laboratory, manufacturing, and commercial applications.
Explore more Samtec PCB Headers and related connectors in EnvMart for tailored electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 2A.
The voltage rating is 350V.
The pitch size of the contacts is 1.27 mm.
The housing is made from liquid crystal polymer, which provides enhanced durability.
This model features 40 contacts arranged in 2 rows.
It can operate within a temperature range from -55°C to 125°C.
It uses solder termination for easy integration into printed circuit boards.
Yes, it is designed for surface mount technology (SMT).
It supports both board-to-board and wire-to-board connections.
The contacts are made of phosphor bronze and are gold plated for excellent conductivity.
The orientation of this model is straight.
It is manufactured in India.
