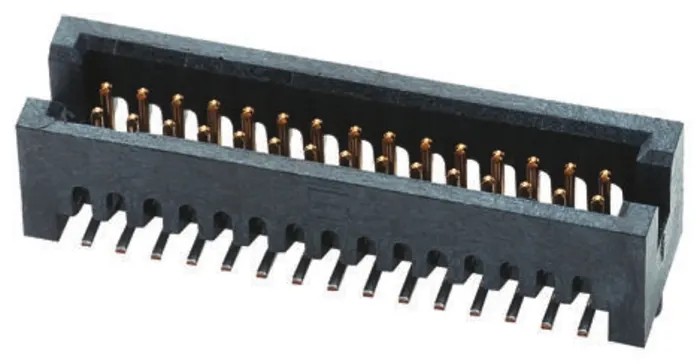

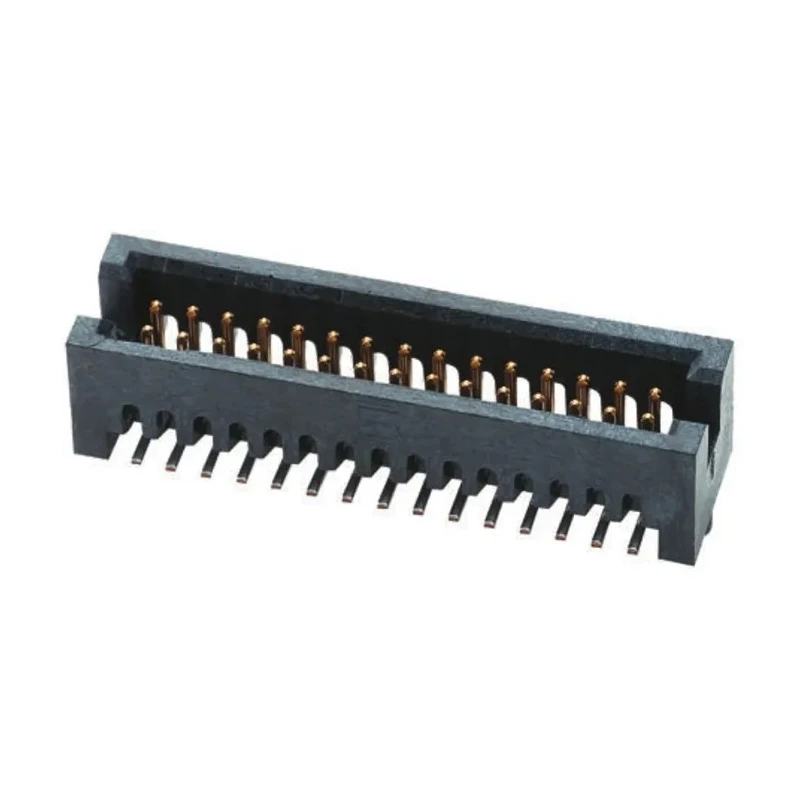

Samtec TFM Series Straight Surface PCB Header, 60 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-130-02-S-D-A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2A |
| Model | TFM-130-02-S-D-A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TFM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Constructed using liquid crystal polymer housing for high durability.
- Features gold-plated phosphor bronze contacts for excellent conductivity.
- Rated current capacity of 2A and voltage rating of 350V for versatile applications.
- Shrouded design provides enhanced protection and alignment.
- Supports operating temperatures from -55°C to 125°C for industrial use.
- Surface mount termination with solder type for secure connections.
- Male contact gender with straight orientation suitable for PCBs.
Product Description
Samtec TFM-130-02-S-D-A is a high-quality surface mount PCB header from the TFM series, featuring 60 contacts arranged in 2 rows with a 1.27 mm pitch. The product is designed for board-to-board and wire-to-board connector systems, ideal for electronic components assembly in industrial and commercial electronics.
The header utilizes a robust liquid crystal polymer housing ensuring mechanical stability and longevity under varying environmental conditions. Its phosphor bronze contacts feature gold plating to guarantee low resistance and excellent corrosion resistance. This connector supports a maximum current of 2 amperes and voltage up to 350 volts, making it suitable for a wide range of electronic applications, including power and signal transmission.
The shrouded male contacts and straight orientation facilitate precise mating and strong retention on PCB surfaces. It is suited for surface mount solder termination techniques, optimizing assembly efficiency for manufacturing environments.
Operating temperature ranges from -55°C to 125°C, supporting usage in diverse industrial, laboratory, and manufacturing settings. The TFM-130-02-S-D-A header does not carry specific standards or approvals but is designed to meet demanding operational conditions commonly found in electronics and electrical equipment industries.
Durable liquid crystal polymer housing ensures reliability. Gold plated phosphor bronze contacts for superior conductivity. Supports 2A current and 350V voltage for versatile operation. Shrouded and male contacts with straight PCB mount orientation.
Compatible with board-to-board and wire-to-board connector systems. Wide operating temperature from -55°C to 125°C. Surface mount termination soldered for secure fitting.
Explore the Samtec TFM series PCB Headers to enhance your electronic component solutions with reliable connectivity. Ideal for engineering, manufacturing, and industrial electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Samtec TFM-130-02-S-D-A PCB header has a rated current capacity of 2A and a voltage rating of 350V, making it suitable for various electronic applications.
This model features a 1.27 mm pitch and contains 60 contacts arranged in 2 rows.
The housing is made from liquid crystal polymer, while the contacts are made of phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
It utilizes a surface mount termination with solder type for secure connections to the PCB.
The operating temperature range for the TFM-130-02-S-D-A is from -55°C to 125°C, suitable for industrial environments.
The contacts are arranged in a straight orientation, which facilitates precise mating and strong retention on PCB surfaces.
Yes, it is compatible with both board-to-board and wire-to-board connector systems, making it versatile for various electronic assemblies.
This model belongs to the TFM series of PCB headers.
The Samtec TFM-130-02-S-D-A has 2 rows of contacts.
The shrouded design provides enhanced protection and alignment for the contacts, ensuring reliable connections during use.
The country of origin for this PCB header is India.
It is designed for use in industrial and commercial electronics, particularly in power and signal transmission applications.
