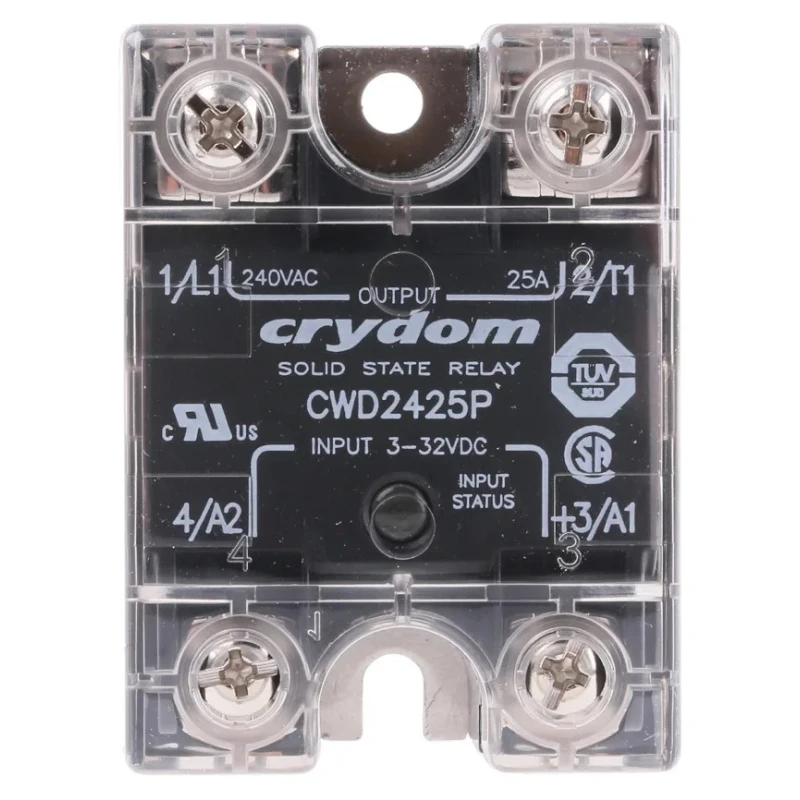

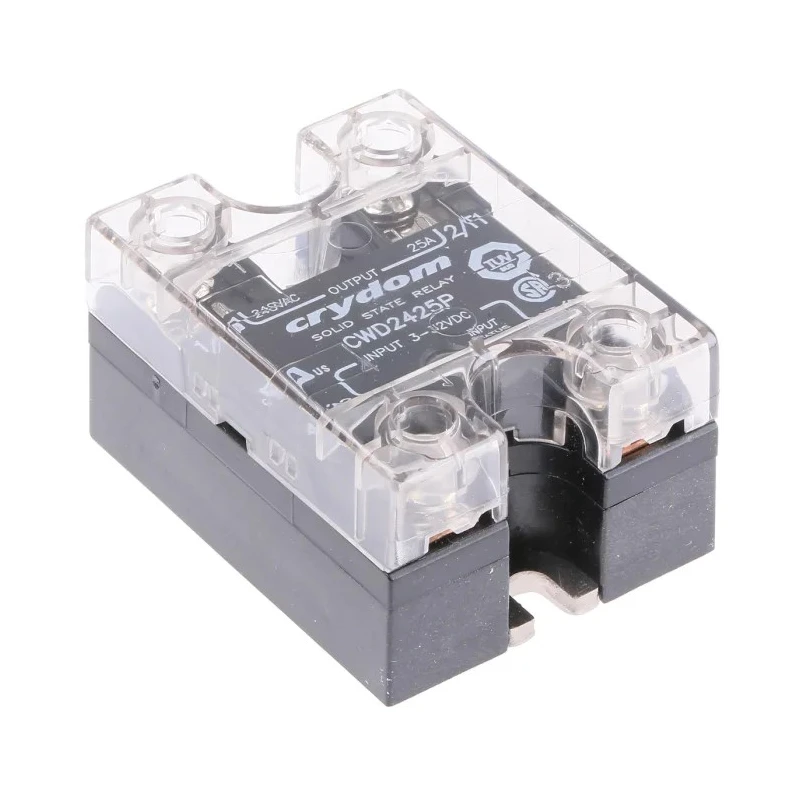

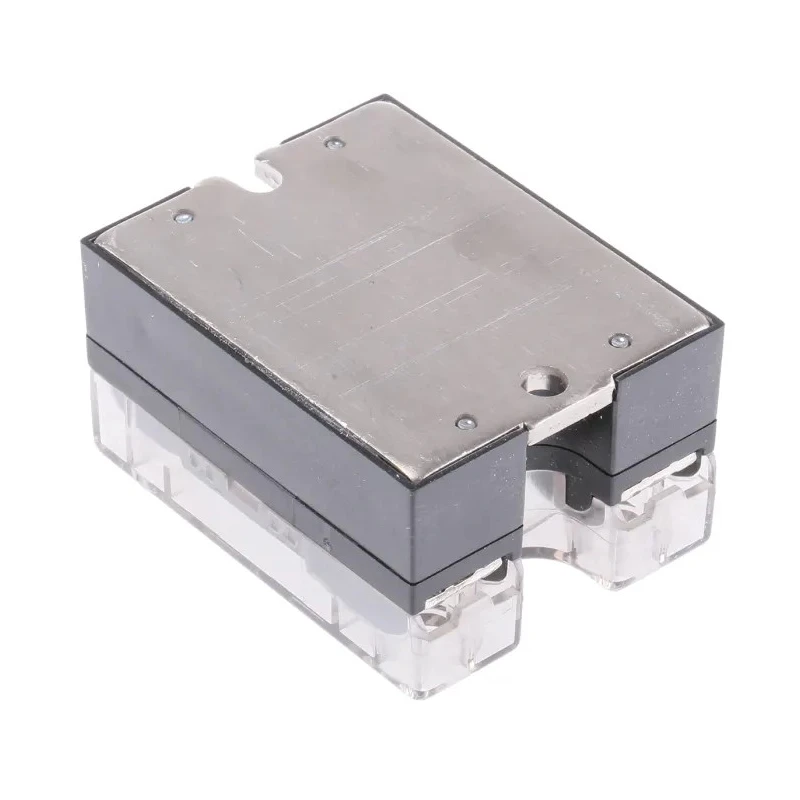

Crydom CW24 Series Solid State Relay, 25 A Load Current, Panel Mount, 280 Vrms Load Voltage, 32 V Control Voltage CW24
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Crydom |
| Height | 33mm |
| Length | 45.7mm |
| Model | CW24 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW24 |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CE, RoHS |
| Minimum Control Voltage | 3V ac/dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mArms |
Key Features
- Rated for a maximum load current of 25 A for heavy-duty switching.
- Broad load voltage range between 24 V and 280 Vrms ensures versatile use.
- Panel mount style with compact dimensions for dense installations.
- Zero voltage switching function reduces electrical noise and prolongs device life.
- Operates in an extended temperature range from -40°C to +80°C.
- Screw terminal type for secure electrical connections.
- SPST contact configuration designed for single-pole switching.
- IP20 rating provides finger-safe electrical protection.
Product Description
The Crydom CW24 Series Solid State Relay (Model: CW24) is a high-performance relay engineered for electrical and industrial automation applications requiring reliable and silent switching capabilities. This panel-mount SSR supports a maximum load current of 25 amps and a wide load voltage range from 24 V to 280 Vrms, making it suitable for controlling motors, heaters, and other electrical loads in factory automation, process control, and data acquisition systems.
Designed with a zero voltage switching function, the SSR minimizes electrical noise during activation, ensuring nuisance-free operation and prolonging connected equipment lifespan. Its screw terminal type and SPST (Single Pole Single Throw) contact configuration allow secure, straightforward wiring. The IP20 protection rating makes it finger-safe, enhancing user and equipment safety in industrial panel environments.
The device operates reliably within a broad temperature range of -40°C to +80°C, supporting demanding environmental conditions. Compact in size, measuring 45.7 mm (L) × 33 mm (H) × 22 mm (W), it fits easily on densely packed control panels. An integrated LED status indicator provides instant visual feedback on the relay's operational status.
The relay conforms to CE and RoHS standards, reflecting quality and environmental compliance, and is produced in Mexico. Its SCR output type and low off-state leakage current of 1 mArms ensure efficient and stable switching performance. The device includes built-in overvoltage protection for safeguarding connected equipment.
This Crydom Solid State Relay is ideal for industrial automation, manufacturing, HVAC control systems, and electrical control panels where precise, rapid switching is necessary without mechanical wear.
Rated for 25 A maximum load current and 280 Vrms maximum load voltage. Supports control voltages from 3V AC/DC up to 32 V. Zero crossing switching function for noise reduction. Compact panel mount form factor with IP20 finger-safe rating.
Extended operating temperatures from -40°C to 80°C. Durable screw terminal connections with LED status indicator. Certified CE and RoHS compliant for safe industrial use.
Discover high-quality relays and solid state components designed for industrial efficiency and reliability. Browse EnvMart’s extensive collection for automation and electrical control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 A.
It supports a load voltage range from 24 V to 280 Vrms.
The control voltage requirements for this model range from 3 V AC/DC to 32 V.
This relay features a Single Pole Single Throw (SPST) contact configuration.
It operates reliably within a temperature range of -40°C to +80°C.
This model is designed for panel mounting.
The dimensions are 45.7 mm in length, 33 mm in height, and 22 mm in width.
Yes, it includes built-in overvoltage protection for safeguarding connected equipment.
It uses screw terminal connections for secure wiring.
The IP rating of this relay is IP20, which provides finger-safe electrical protection.
It conforms to CE and RoHS standards, reflecting quality and environmental compliance.
This model utilizes a zero voltage switching function to minimize electrical noise during activation.
