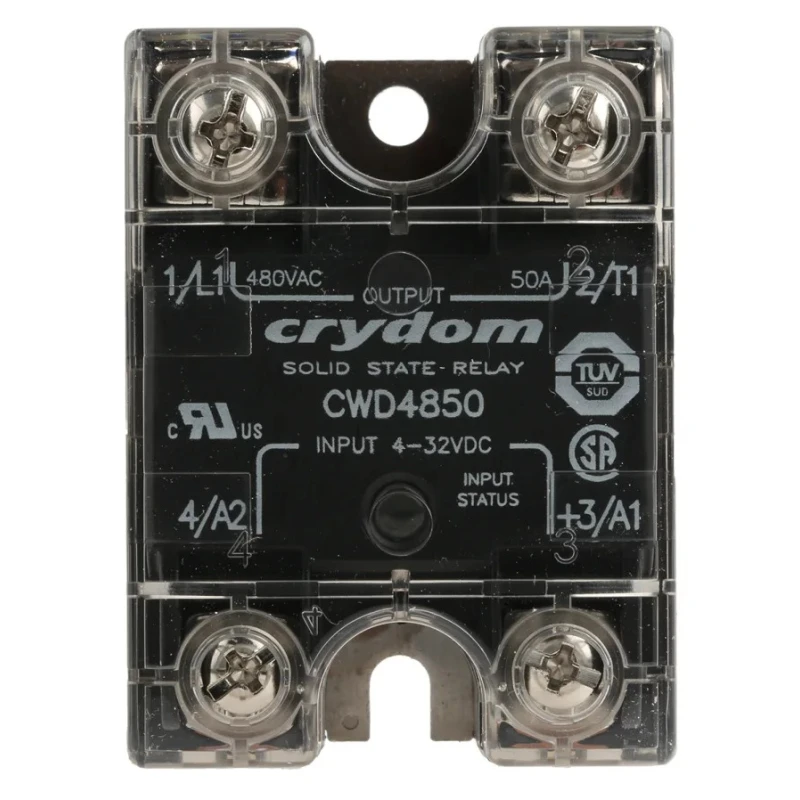

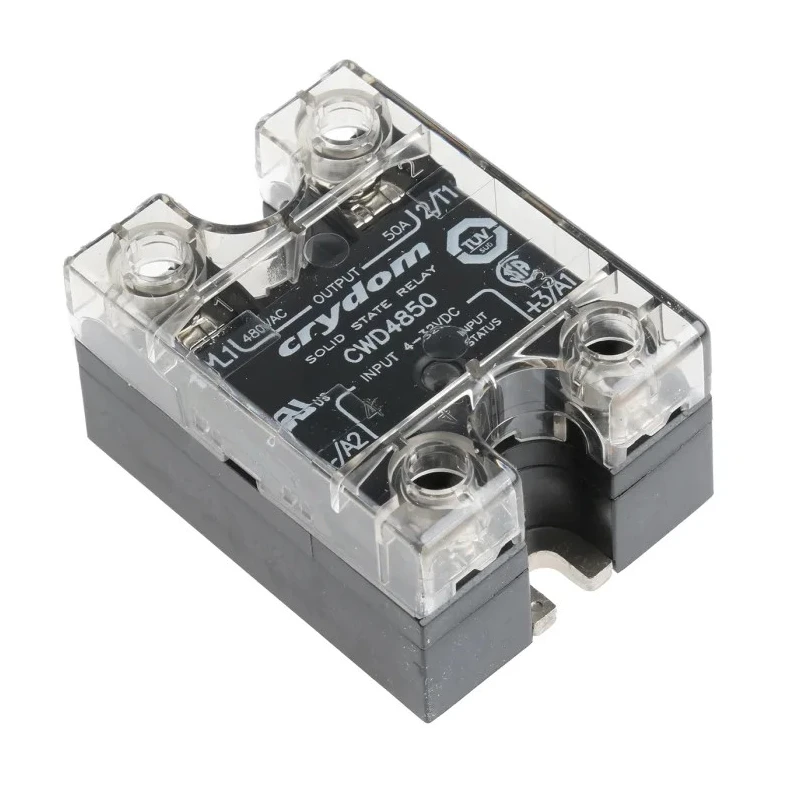

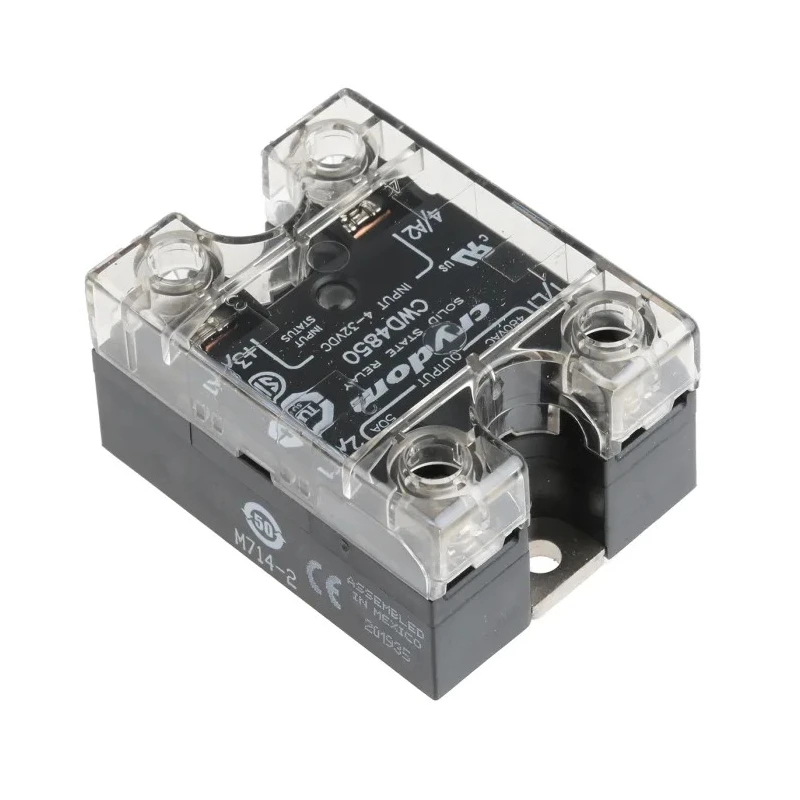

Crydom CW Series Solid State Relay Panel Mount 50 A Load Current 660 V AC Load 32V Control CWD4850
Specifications
| Country of Origin | China |
|---|---|
| Brand | Crydom |
| Height | 33mm |
| Length | 45.7mm |
| Model | CWD4850 |
| IP Rating | IP20 |
| Width | 22mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | CW |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Switching |
| Maximum Load Current | 50A |
| Standards/Approvals | CE, RoHS |
| Maximum Load Voltage | 660V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V ac/dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mArms |
Key Features
- Rated for a maximum load current of 50 amps, suitable for demanding electrical load control.
- Operates with a load voltage range up to 660 volts AC for versatile industrial use.
- Zero voltage switching for efficient and noise-minimized power handling.
- Wide operating temperature range from -40°C to +80°C allowing use in harsh environments.
- Features a flame-retardant housing ensuring enhanced fire safety during operation.
- Equipped with a green LED indicator to monitor operational status at a glance.
- Panel mount with pre-drilled holes enables quick and secure installation.
- IP20 rated cover provides finger safety and protection against objects larger than 12 mm.
Product Description
Crydom CWD4850 Solid State Relay is engineered for precise and reliable switching control in industrial, commercial, and automation systems. This panel mount SSR is rated for a maximum load current of 50 amps and can handle voltages up to 660 volts AC, making it suitable for heavy electrical loading applications.
Its zero-cross switching functionality minimizes electrical noise and enhances efficiency by turning on near zero voltage points. The device has a robust flame-retardant housing and a direct-bond copper substrate for optimal heat dissipation, ensuring durability and safety in demanding environments. The wide operating temperature range from -40°C to 80°C allows use in a variety of harsh conditions, including HVAC systems, material handling, and power control scenarios.
The relay comes with screw-type terminals and a SPST contact configuration facilitating secure and straightforward wiring. The integrated green LED provides a clear visual indicator of the relay's operating status, improving on-site diagnostics. Protected by an IP20 rated cover, this SSR offers finger-safe operation and protection against penetration of objects larger than 12 mm. It is CE and RoHS compliant, aligning with international standards for quality and environmental safety.
Whether used in industrial automation, electrical panels, or power management systems, the Crydom CWD4850 offers long life operation with an MTBF exceeding 11 million hours at 40°C, providing dependable performance for critical applications.
Rated 50 A maximum load current for heavy-duty switching. 660 V AC maximum load voltage for versatile applications. Zero voltage switching to reduce electrical noise. Wide temperature range from -40°C to 80°C for harsh environments.
Flame-retardant and heat-dissipating housing for safe operation. Panel mount with pre-drilled holes for easy installation. Green LED operation indicator for real-time status. IP20 rated cover ensures finger safety. Screw terminal and SPST contact arrangement for reliable connections.
Complies with CE and RoHS standards for quality and safety. Explore more quality Solid State Relays and control solutions on EnvMart for your industrial and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom CWD4850 is rated for a maximum load current of 50 amps, making it suitable for demanding electrical load control applications.
This model can handle a maximum load voltage of 660 volts AC, allowing for versatile industrial use.
It features zero voltage switching, which minimizes electrical noise and enhances efficiency by turning on at near zero voltage points.
The operating temperature range for this relay is from -40°C to +80°C, enabling its use in harsh environments.
It is designed for panel mounting and comes with pre-drilled holes for quick and secure installation.
The Crydom CWD4850 has an IP20 rating, providing finger safety and protection against objects larger than 12 mm.
It is equipped with screw-type terminals, facilitating secure and straightforward wiring connections.
The contact configuration of this relay is SPST (Single Pole Single Throw).
It includes a green LED indicator that provides a clear visual indication of the relay's operating status.
The Crydom CWD4850 complies with CE and RoHS standards, ensuring quality and environmental safety.
The minimum control voltage required for this relay is 4V AC/DC, while the maximum control voltage is 32V.
The dimensions of the Crydom CWD4850 are 33 mm in height and 22 mm in width.
