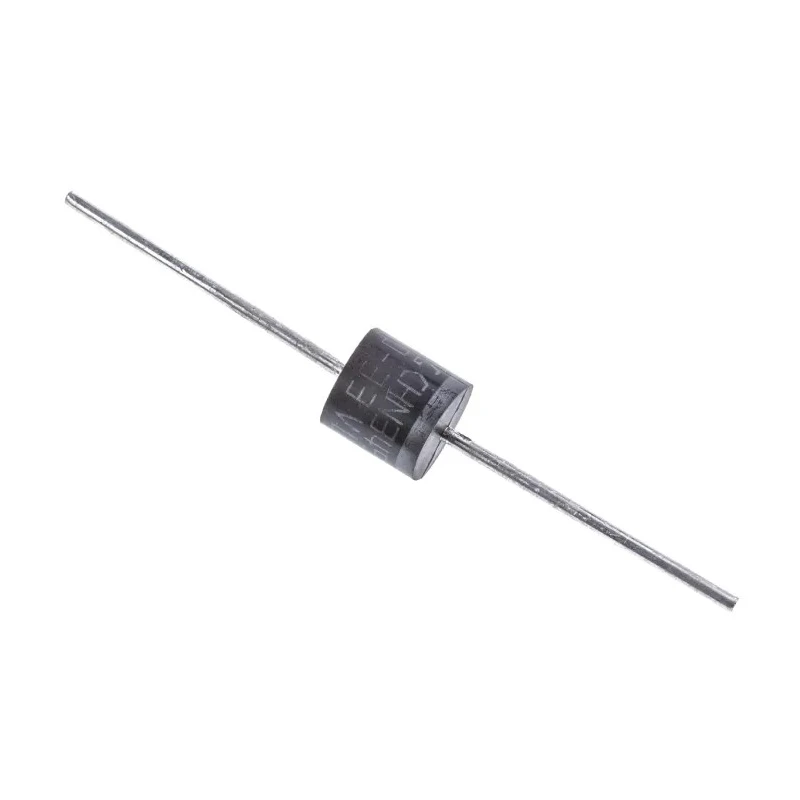

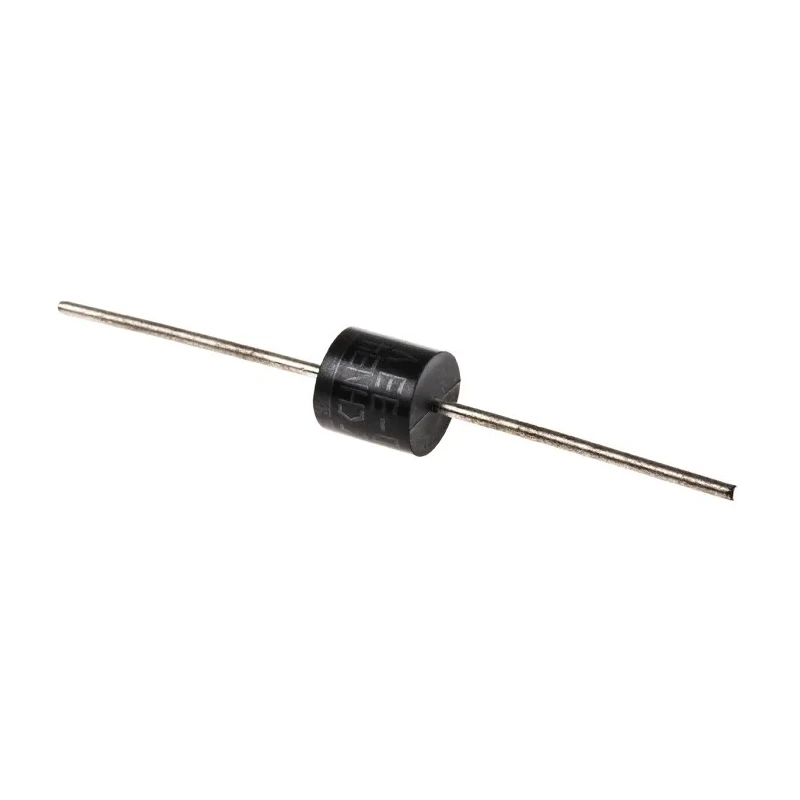

STMicroelectronics 1-Element Uni-Directional TVS Diode, 5 kW, 2-Pin, Through Hole, R-6 Package BZW50-33

STMicroelectronics BZW50-33 is a high-performance 1-element uni-directional transient voltage suppressor (TVS) diode with a peak pulse power dissipation rating of 5 kW. Featuring a 2-pin configuration housed in a durable R-6 package, this diode is designed to provide reliable surge protection for electronic circuits against voltage transients and spikes.

The diode offers a minimum breakdown voltage of 36.6 V and a maximum reverse stand-off voltage of 33 V, making it suitable for protecting sensitive components in low-voltage applications. The clamping voltage of 76 V ensures effective suppression of transient voltages by limiting voltage spikes to safe levels.

With a high maximum peak pulse current of 789 A and a low maximum reverse leakage current of 5 µA, the BZW50-33 provides robust protection while maintaining energy-efficient operation during normal conditions. Its operating temperature range from -65°C to 175°C supports performance stability in demanding industrial and commercial environments.

The axial through-hole mount and compact R-6 package, with precise dimensions of 9.1 mm in length, width, height, and diameter, provide ease of use and reliable mechanical stability on printed circuit boards. This product is ideal for applications in industrial electronics, power supply protection, telecommunications, and automotive electronics that require efficient transient voltage suppression.

Single-element diode designed for high surge protection applications. Uni-directional configuration ensures directional transient voltage suppression. Peak pulse power dissipation rating of 5 kW suitable for high energy transient events.

Compact R-6 package with 9.1 mm diameter for efficient PCB mounting. Operates reliably between -65°C and 175°C for extended temperature performance. Minimum breakdown voltage of 36.6 V and maximum stand-off voltage of 33 V.

Clamping voltage of 76 V protects sensitive electronics during voltage spikes. Maximum peak pulse current of 789 A provides robust transient handling capability. Low reverse leakage current of 5 µA minimizes power loss in normal operation.

Through-hole mount type enables secure and stable installation on PCB.

This STMicroelectronics BZW50-33 TVS Diode suits a wide range of industrial, telecommunications, automotive, and power supply applications requiring reliable transient voltage suppression. Explore more high-quality semiconductor components on EnvMart for effective electronic circuit protection solutions.
