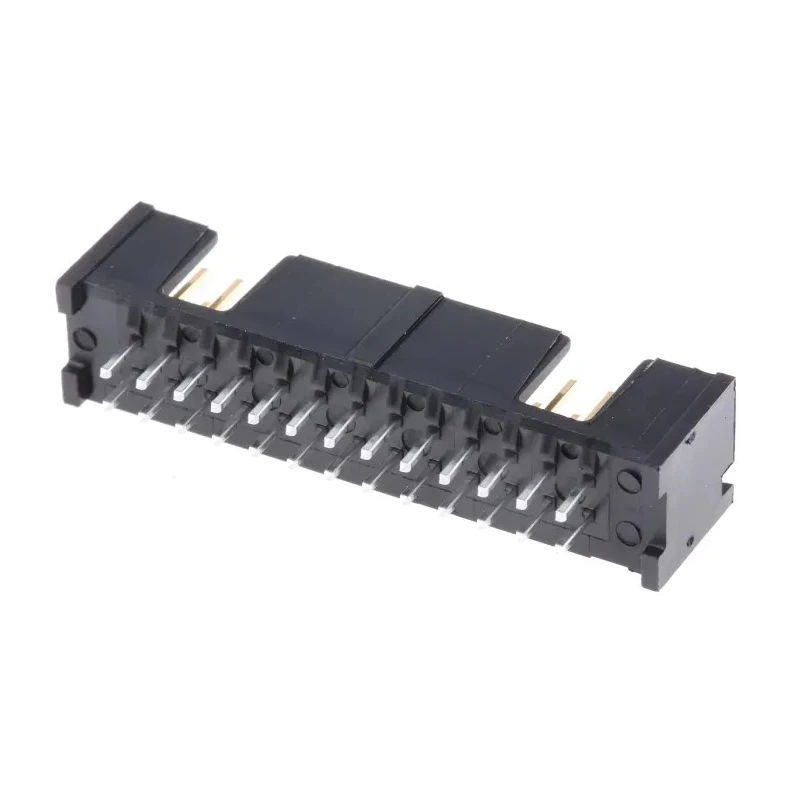

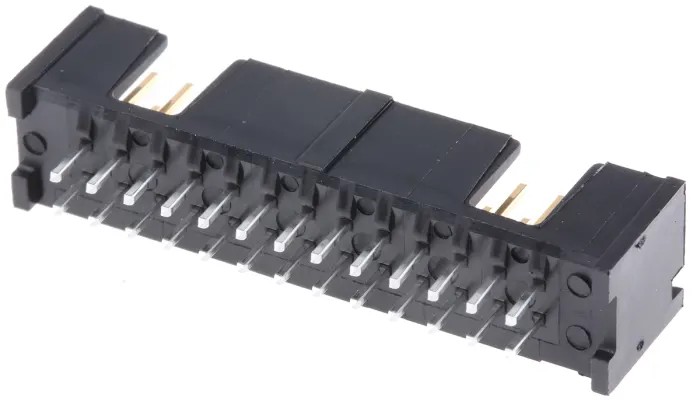

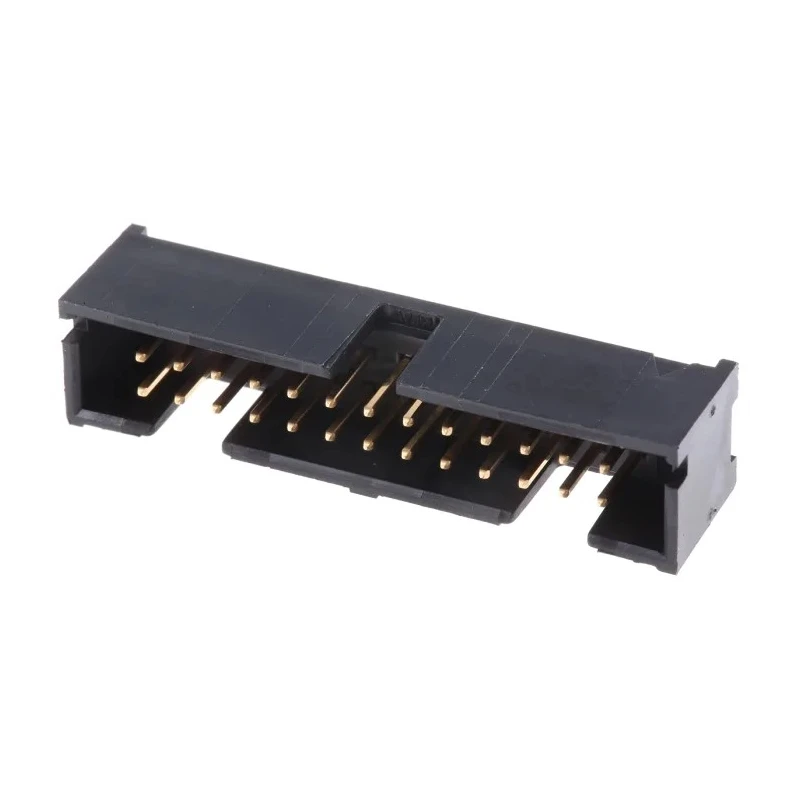

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 26 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 5103308-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.05mm |
Key Features
- Supports up to 1 ampere current capacity.
- Housing is made from flame retardant 94V-0 thermoplastic material.
- Gold-plated copper alloy contacts ensure reliable electrical connections.
- Designed with center and dual polarization slots for accurate mating with IDC ribbon cables.
- Suitable for through-hole PCB mounting with solder termination.
- Operates reliably between -55°C and 105°C.
- Features 3.05 mm tail pin length for secure attachment.
- Provides board standoffs allowing excess flux removal from PCBs.
Product Description
TE Connectivity 5103308-6 AMP-LATCH Series Straight Through Hole PCB Header is a high-quality connector designed with 26 male contacts in a 2-row configuration, and a standard 2.54 mm pitch.
The connector uses flame retardant 94V-0 thermoplastic for its housing, providing enhanced safety and durability in demanding industrial and commercial electronic applications.
Its gold-plated copper alloy contacts offer excellent conductivity and resistance to corrosion. The shrouded design, coupled with center and dual polarization slots, ensures precise mating with IDC ribbon cable connectors, preventing misalignment or damage.
The 3.05 mm tail pin length allows for secure solder-based through-hole mounting on printed circuit boards, with board standoffs facilitating flux removal during manufacturing. This PCB header supports currents up to 1 amp and a voltage rating of 250 volts, ensuring reliable performance across a wide temperature range of -55°C to 105°C.
It is suitable for a broad range of industrial, commercial, and medical applications including computers, business equipment, medical instruments, storage devices, networking hardware, industrial control systems, household appliances, and electrical testing equipment.
Supports up to 1 ampere current capacity. Housing material is flame retardant 94V-0 thermoplastic. Gold-plated copper alloy contacts ensure reliable connection. Center and dual polarization slots prevent mis-mating. Board standoffs enable excess flux removal.
3.05 mm tail pin length for secure solder connection. Operates within -55°C to 105°C temperature range. Rated voltage of 250 V for versatile electrical compatibility. Shrouded, straight through hole mount type for stability.
Ideal for industrial, medical, computing, and testing applications. Explore more PCB Connectors and related electronic components at EnvMart for your project and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current capacity of up to 1 ampere.
The voltage rating of this header is 250 volts, ensuring compatibility with various electrical applications.
The contacts in this model are configured with a pitch size of 2.54 mm.
The housing is made from flame retardant 94V-0 thermoplastic, while the contacts are composed of gold-plated copper alloy.
It operates reliably within a temperature range of -55°C to 105°C.
This model features 26 male contacts arranged in a 2-row configuration.
The header utilizes a solder termination type for secure mounting on PCBs.
The tail pin length for this connector is 3.05 mm, allowing for secure attachment during installation.
This connector is shrouded, which helps prevent misalignment during mating with IDC ribbon cables.
It is suitable for a broad range of applications including industrial control systems, medical instruments, and networking hardware.
The orientation of this PCB header is straight, designed for through-hole mounting.
The country of origin for this PCB header is India.
