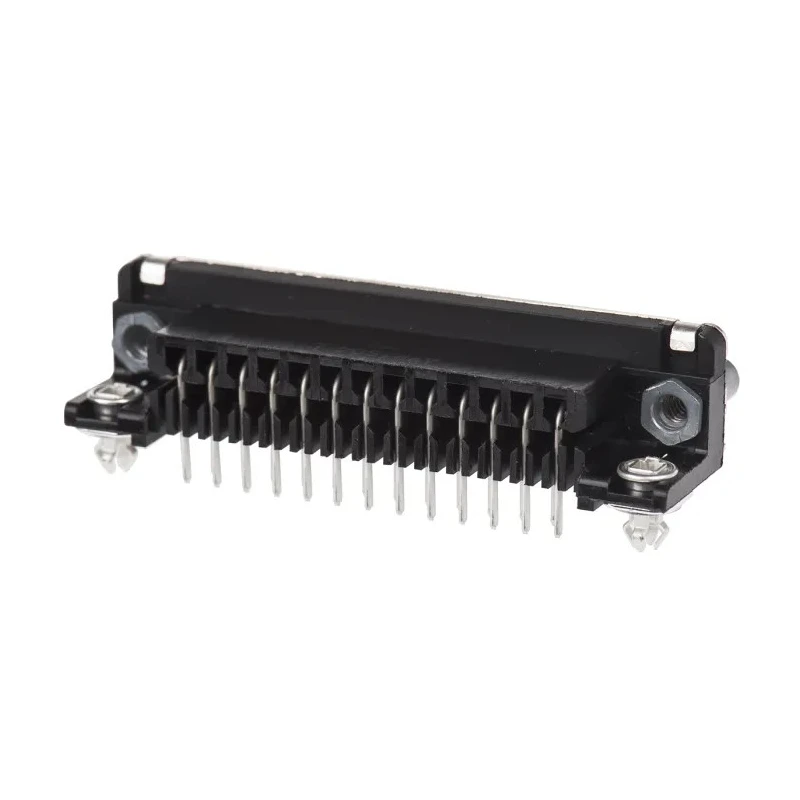

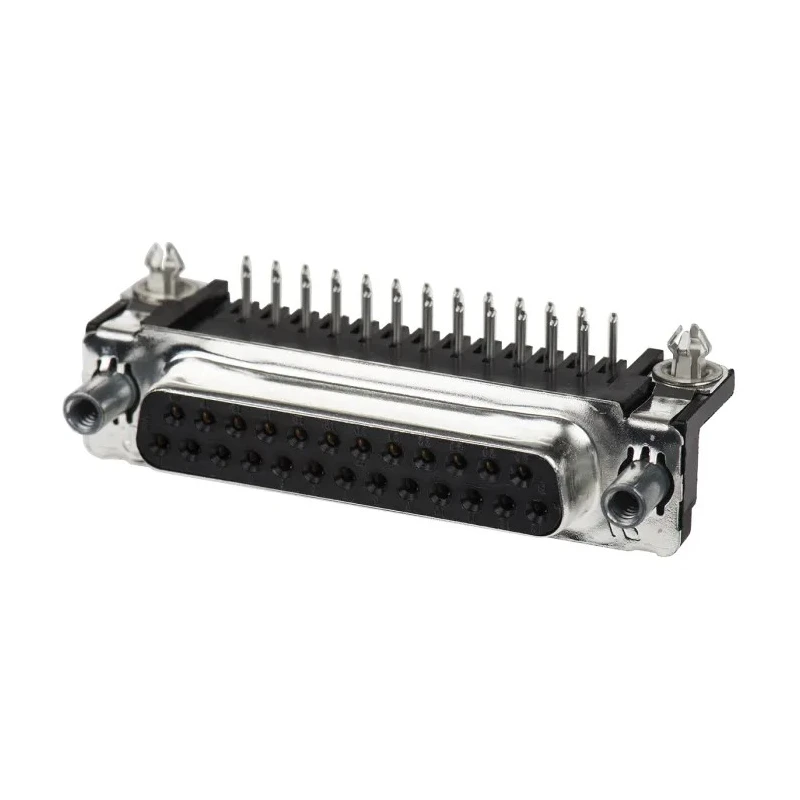

TE Connectivity AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector 5747846-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.75mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | D |
Key Features
- This D-Sub connector features a right angle orientation suitable for PCB mounting.
- It has 25 female contacts made of phosphor bronze with gold over nickel plating for durability.
- The connector’s housing is made of thermoplastic rated 94V-0 for flame retardance.
- Operating temperature ranges from -55°C to 105°C ensuring robust environmental tolerance.
- Termination type is solder for secure electrical connection.
- The connector shell size is D and mounting hardware includes zinc-plated female screw locks.
- Designed as part of the AMPLIMITE HD-20 series with a footprint of 8.08 mm.
- Ideal for use in electronic, industrial, and manufacturing applications requiring secure PCB connections.
Product Description
TE Connectivity 5747846-6 AMPLIMITE HD-20 25 Way Right Angle 2.75 mm Pitch Through Hole D-Sub Connector provides a high-quality female connector solution for printed circuit board (PCB) applications.
This connector features a right angle orientation with through hole mount type and 25 female contacts, allowing for space-efficient PCB layout and reliable electrical connections. The contacts are made from phosphor bronze with gold over nickel plating, ensuring excellent conductivity and corrosion resistance.
The housing is constructed from flame-retardant thermoplastic material rated 94V-0, offering safety and durability under various operating environments. It supports a minimum operating temperature of -55°C and a maximum of 105°C, making it suitable for harsh or variable thermal conditions.
Mounting hardware consists of zinc-plated female screw locks with 4 to 40 UNC threading, providing secure mechanical fastening. The connector shell size is D with an 8.08mm footprint, making it compatible with various AMPLIMITE HD-20 series connectors.
This product is ideal for use in various industrial fields including electronic manufacturing, industrial automation, and communications, where robust and precise PCB connections are critical.
This D-Sub Connector features a right angle orientation suitable for PCB mounting. It has 25 female contacts made of phosphor bronze with gold over nickel plating for durability. The connector’s housing is made of thermoplastic rated 94V-0 for flame retardance.
Operating temperature ranges from -55°C to 105°C ensuring robust environmental tolerance. Termination type is solder for secure electrical connection. The connector shell size is D and mounting hardware includes zinc-plated female screw locks.
Designed as part of the AMPLIMITE HD-20 series with a footprint of 8.08 mm. Ideal for use in electronic, industrial, and manufacturing applications requiring secure PCB connections. Explore more TE Connectivity electronic components and connectors on EnvMart for reliable industrial and manufacturing solutions.
