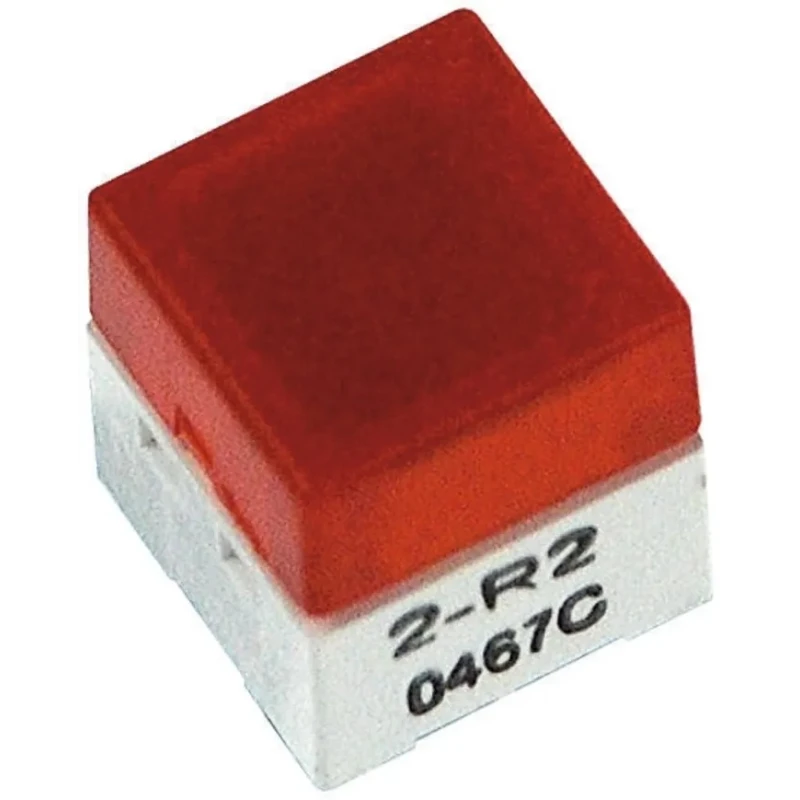

Omron Illuminated Red Tactile Switch Cap SPST-NO Momentary 50mA 24V DC PCB Mount IP00

Free Delivery in India | Lowest Global Shipping Charges

Omron Illuminated Red Tactile Switch Cap SPST-NO Momentary 50mA 24V DC PCB Mount IP00

Name: Omron Illuminated Red Tactile Switch Cap SPST-NO Momentary 50mA 24V DC PCB Mount IP00
Brand: Omron
SKU: 163324



Category Tactile Switch Caps Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	10.2mm
Length	10mm
Model	IP00
IP Rating	IP00
Width	10mm
Mount Type	PCB
Series	B3W
Maximum Operating Temperature	70°C
Contact Configuration	SPST-NO
Switch Configuration	Off-On
Minimum Operating Temperature	-25°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Red
Contact DC Voltage	24V dc
Actuator Style	Cap
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	1.57N
Mechanical Life	1000000Operations
Aratas IP00 White Tactile Switch Cap, SPST-NO 50mA 24 V dc, PCBBrand	Omron

Key Features

The switch features a compact 10x10x10.2mm body suitable for PCB mounting.
It provides bright, uniform red illumination through a specially designed diffusion panel.
Operating force is 1.57 Newtons, optimizing tactile feedback and user ergonomics.
Meets IP00 ingress protection rating and complies with RoHS for environmental standards.
Durability is ensured with a mechanical life of 1,000,000 operations.
Operating temperature range spans from -25°C to 70°C for diverse application environments.
The switch utilizes a solder terminal type with a straight actuator orientation and cap-style actuator.
It is suitable for applications requiring reliable tactile feedback in electronic and automation devices.

Product Description

Omron B3W9000R1RBYOMZ is an illuminated red tactile switch cap designed for momentary switching with single-pole single-throw normally open (SPST-NO) contact configuration. This PCB mount tactile switch is compact with dimensions of 10 mm length, 10 mm width, and 10.2 mm height, offering efficient fitment in densely packed electronic assemblies.

The switch features a uniquely constructed diffusion panel providing bright and uniform red illumination, enhancing user interface clarity and aesthetics.

With a contact current rating of 50mA at 24V DC and an operating force of 1.57 Newtons, it delivers precise tactile response suitable for keyboards, control panels, and automation equipment.

Compliance with RoHS ensures the device meets environmental safety directives, and the IP00 rating indicates no ingress protection - ideal for indoor electronic applications without exposure to dust or liquids.

The mechanical life expectancy of one million operations signifies high durability for long-term use in industrial, electronic, and automation applications.

Operating temperature ranges from -25°C to 70°C, accommodating diverse environments including industrial controls and instrumentation where reliable switching under varying conditions is critical.

The switch offers compact size and easy PCB mounting for space-efficient designs. Illuminated actuator enhances visibility and user experience in interfaces. Reliable contact configuration ensures consistent ON/OFF switching capability.

Suitable for use in electronic devices, control systems, and automation projects. High mechanical endurance supports prolonged operational cycles. This Omron tactile switch is an ideal choice for engineers and manufacturers needing quality, precision, and performance in PCB mounted tactile switches.
