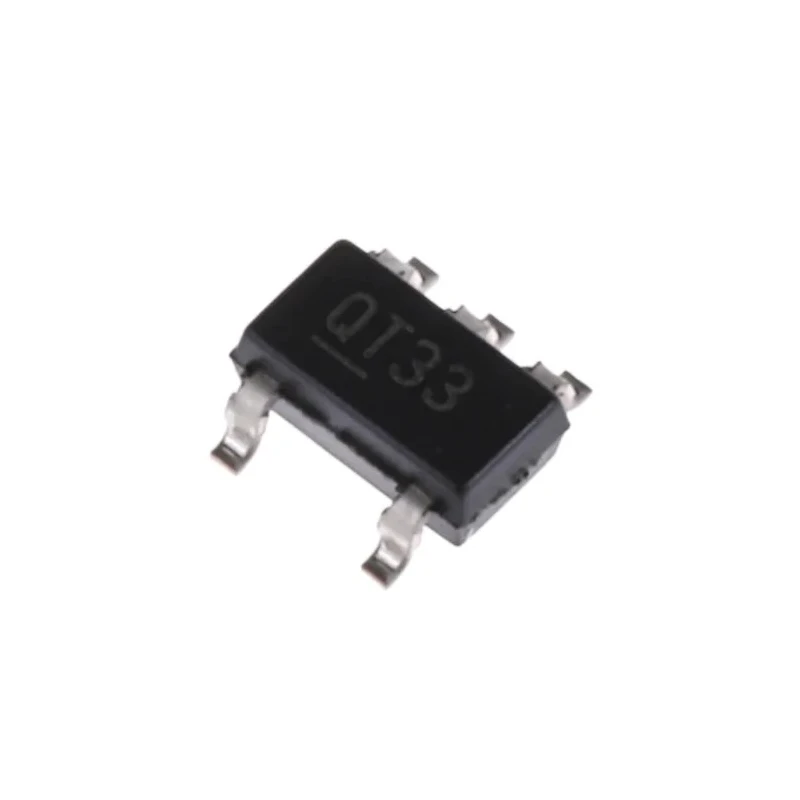

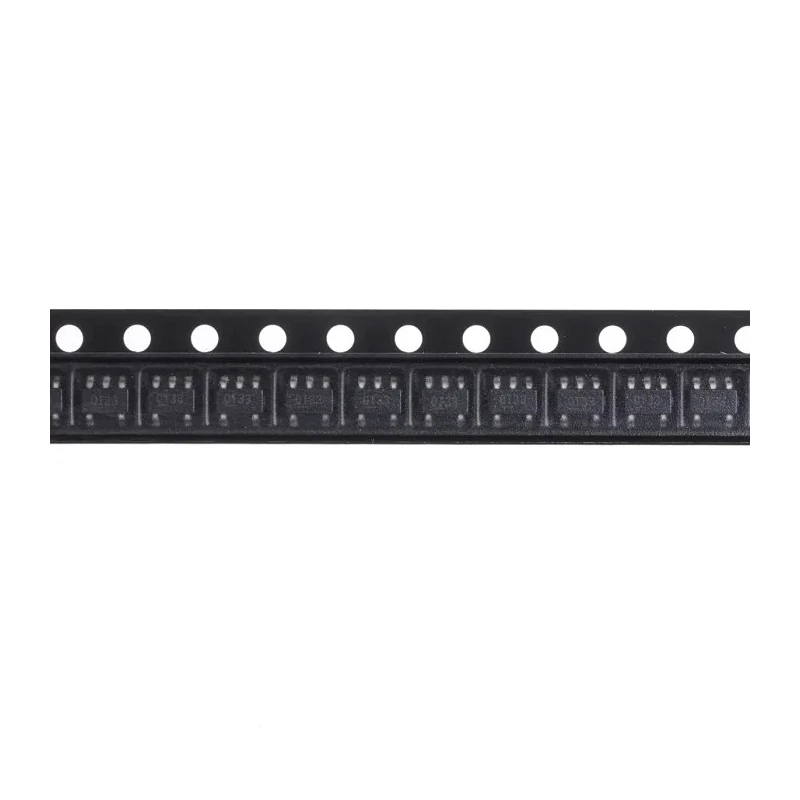

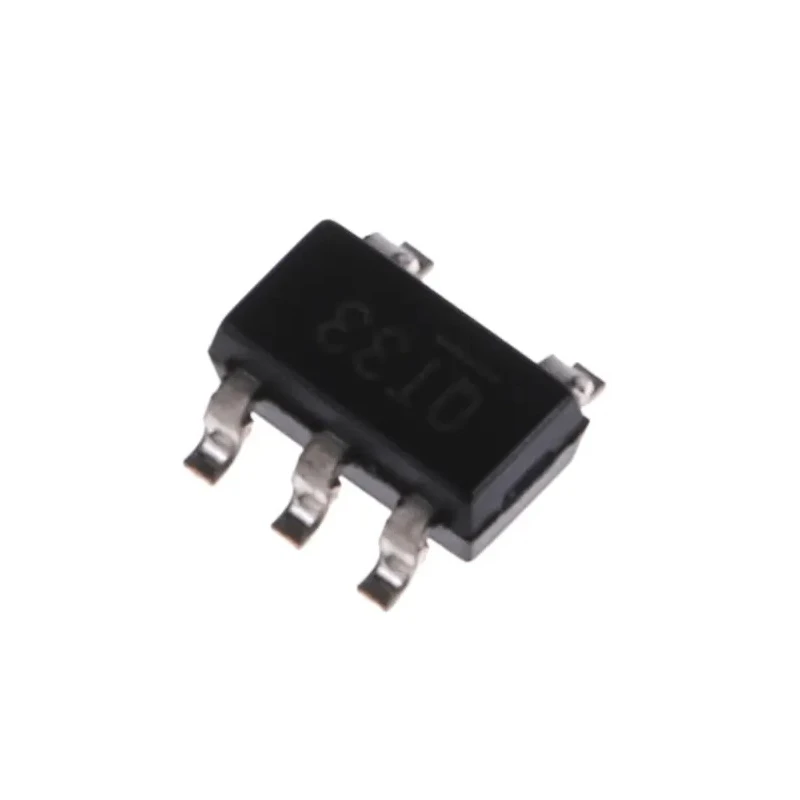

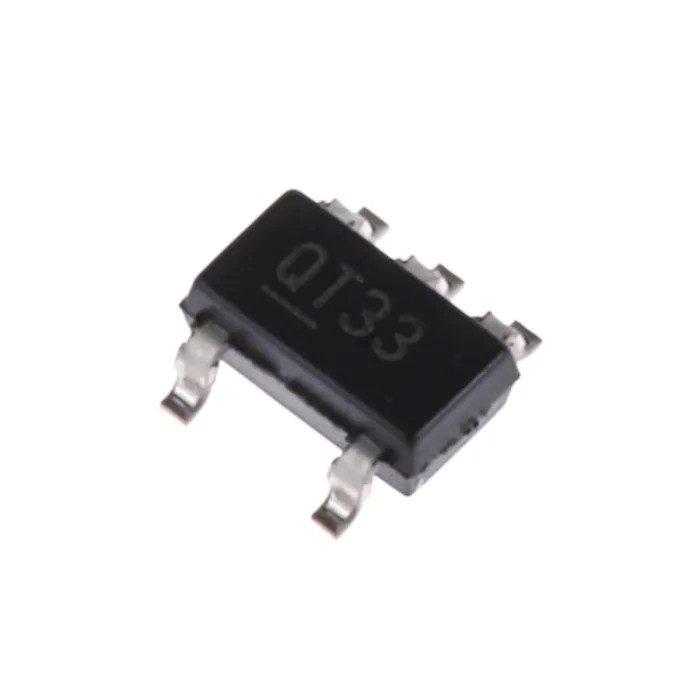

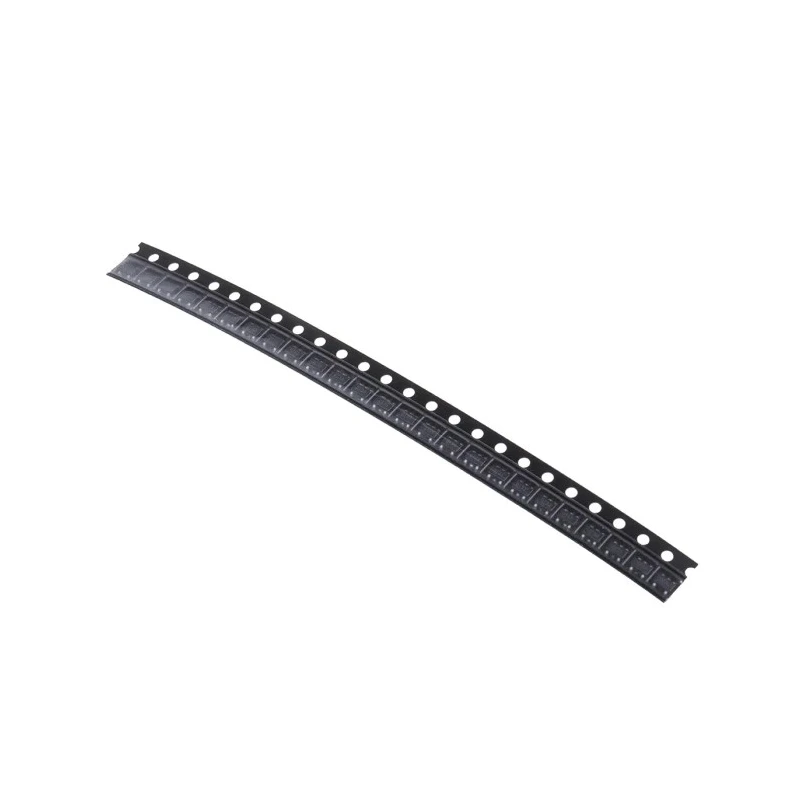

Microchip Voltage Regulator 16V SOT-23 5-Pin MIC5225-3.3YM5-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Microchip, Voltage Regulator 16V SOT-23 5-Pin RS Stock No |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | MIC5225-3.3YM5-TR |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | MIC5225 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Polarity | Positive |
| Maximum Input Voltage | 16V |
| Quiescent Current | 29μA |
| Minimum Input Voltage | 2.3V |
| Pin Count | 5 |
Key Features
- Highly accurate low dropout (LDO) regulator supporting up to 150mA output current.
- Wide input voltage range from 2.3V to 16V suitable for various battery and power supply sources.
- Extremely low quiescent current of 29μA for efficient battery-powered applications.
- Thermal shutdown and current limit protection ensure device reliability and safety.
- Stable with ceramic or tantalum capacitors for flexible circuit design.
- Reverse battery and leakage protection enhances device robustness in automotive and portable electronics.
- Operating temperature from -40°C to 125°C for automotive and industrial environments.
Product Description
Microchip MIC5225-3.3YM5-TR is a high precision low dropout (LDO) voltage regulator designed for stable power delivery in electronic circuits. It supports a maximum input voltage of 16V and delivers up to 150mA current with an output accuracy of ±2.0% over temperature. This voltage regulator is housed in a compact surface-mount SOT-23 5-pin package, measuring just 2.9mm by 1.6mm by 1.1mm, suitable for space-sensitive applications.
Featuring ultra-low quiescent current of 29μA, it is optimized for battery-powered portable electronics, including USB devices, cellular phones, and consumer electronics that operate on 1 to 3-cell Li-Ion batteries. The device design includes essential protections such as thermal shutdown, current limit, reverse battery protection, and reverse leakage protection ensuring reliability under harsh conditions.
The MIC5225 series is stable with either ceramic or tantalum capacitors, providing flexibility in circuit design. Its operating temperature range from -40°C to 125°C makes it ideal for automotive electronics and industrial systems requiring durable voltage regulation under extended temperature extremes.
Typical applications of the MIC5225-3.3YM5-TR include automotive electronics, battery-powered equipment, and various consumer and personal electronics requiring high efficiency linear power supplies.
Highly accurate low dropout voltage regulation for stable power output. Wide input voltage range supports diverse power sources. Compact SOT-23 5-pin package for space-constrained designs. Enhanced protection features increase device longevity and reliability.
Low quiescent current suitable for battery-powered applications. Thermal shutdown and current limit protect against faults. Reverse battery and leakage protection improve robustness. Automotive and industrial operational temperature range.
Choose Microchip voltage regulators for superior performance in power management IC applications. Explore more in our Semiconductor Voltage Regulator IC category at EnvMart for industrial and commercial electronics design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 16V.
It delivers up to 150mA output current.
The quiescent current is 29μA, making it suitable for battery-powered applications.
The dimensions of the SOT-23 package are 2.9mm in length, 1.6mm in width, and 1.1mm in height.
It operates within a temperature range of -40°C to 125°C.
Yes, it is stable with both ceramic and tantalum capacitors, allowing for flexible circuit design.
It includes thermal shutdown, current limit, reverse battery protection, and reverse leakage protection.
The minimum input voltage is 2.3V.
It uses a surface mount type.
It is suitable for automotive electronics, battery-powered equipment, and various consumer electronics requiring efficient linear power supplies.
This model belongs to the MIC5225 series.
The polarity of the MIC5225-3.3YM5-TR is positive.
