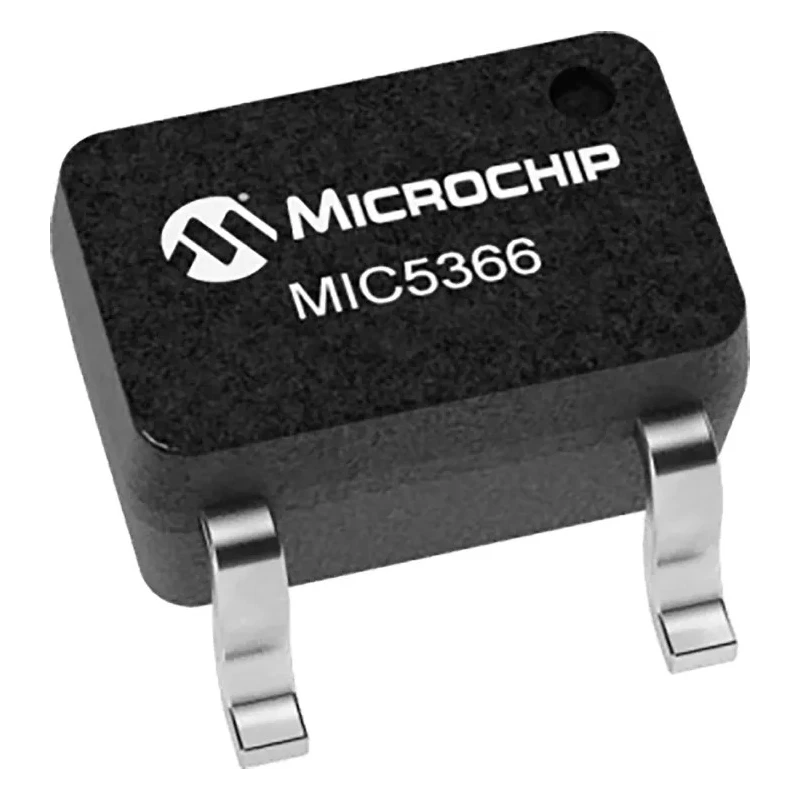

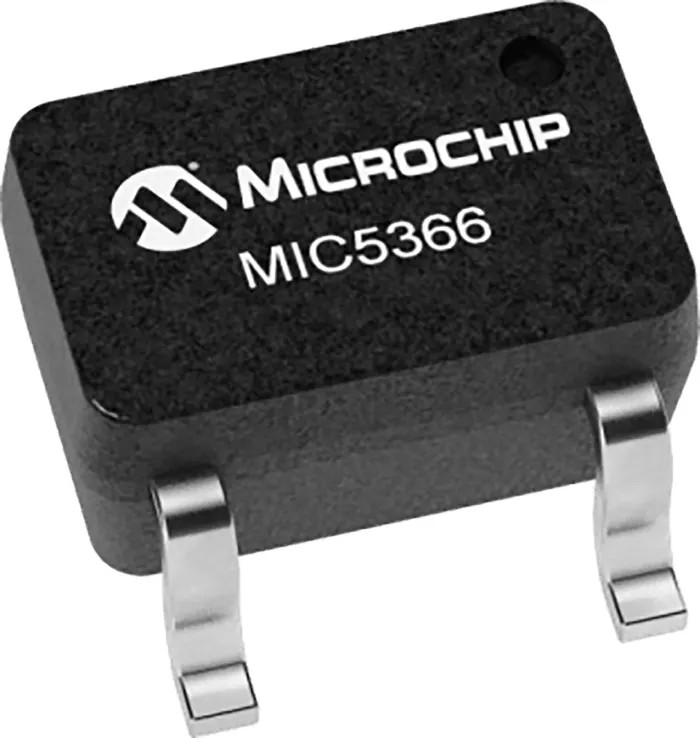

Microchip Voltage Regulator 5.5V SC-75 Surface Mount 5-Pin MIC5366-1.8YC5-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 2.25mm |
| Model | MIC5366-1.8YC5-TR |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | MIC5366 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-75 |
| Input Voltage Range | 2.5V to 5.5V |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 32μA |
| Minimum Input Voltage | 2.5V |
| Pin Count | 5 |
| Low Dropout Voltage | 180mV at 150mA |
| High PSRR | 70dB |
Key Features
- Provides regulated output voltage with high accuracy of ±2% initial tolerance.
- Operates over input voltage range of 2.5V to 5.5V for versatile applications.
- Low quiescent current of 32μA reduces power consumption in battery-powered devices.
- High power supply rejection ratio (PSRR) of 70dB ensures stable output under noisy conditions.
- Compact dimensions of 2.25mm length, 1.35mm width, and 1mm height enable space-saving PCB designs.
- Built-in protection features include thermal shutdown and current limit to prevent damage.
- Output discharge circuit supports MIC5366 variants for improved startup behavior.
- Ideal for portable electronics and power management in embedded industrial systems.
Product Description
Microchip MIC5366-1.8YC5-TR Voltage Regulator is an advanced general purpose linear regulator designed to provide stable 5.5V maximum input voltage operation in an ultra-compact SC-75 (SOT-5) package with surface mount technology. It supports a pin count of 5 and features positive polarity for regulated voltage output applications.
This device delivers a guaranteed 150mA output current with a low dropout voltage of 180mV at full load. It achieves excellent load and line transient response alongside high power supply rejection ratio (PSRR) of 70dB, making it suitable for sensitive electronic circuits exposed to interference.
With a low quiescent current of 32μA, MIC5366 conserves energy in portable or low power devices, while thermal shutdown and current limit protect the device and system from fault conditions. Its small size (2.25mm x 1.35mm x 1mm) enables integration into tight PCB layouts for modern electronic components.
This regulator is compatible with ceramic capacitors on the output and provides output discharge functionality, enhancing startup and shutdown procedures. It is recommended for a wide range of industrial, consumer electronics, telecommunications, and embedded systems where precision voltage regulation is critical.
Operating over an input voltage range from 2.5V to 5.5V, the MIC5366 meets the demands of low voltage battery-powered equipment and general power management IC applications. ±2% initial output voltage accuracy ensures precise regulation across temperature ranges.
Thermal shutdown and current limitation for safe operation under stress. Compact SC-75 5-pin surface mount package for space-constrained applications. High PSRR supports noisy industrial and communication environments. Low dropout voltage improves efficiency and battery life.
Suitable for use in industrial, laboratory, construction and embedded electronics applications. Explore more Microchip power management ICs and voltage regulators on EnvMart for reliable electronic component sourcing and engineering design support.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This voltage regulator operates over an input voltage range of 2.5V to 5.5V.
It delivers a guaranteed output current of 150mA.
The quiescent current is 32μA, which helps reduce power consumption in battery-powered devices.
The dimensions of the MIC5366-1.8YC5-TR are 2.25mm in length, 1.35mm in width, and 1mm in height.
It has a low dropout voltage of 180mV at full load (150mA).
This model comes in an SC-75 (SOT-5) surface mount package.
The MIC5366-1.8YC5-TR features a high power supply rejection ratio (PSRR) of 70dB.
Yes, it includes thermal shutdown and current limit protection features to prevent damage.
The maximum operating temperature is 125°C.
Yes, it is compatible with ceramic capacitors on the output.
It is recommended for use in industrial, consumer electronics, telecommunications, and embedded systems where precision voltage regulation is critical.
The initial output voltage accuracy is ±2%, ensuring precise regulation across temperature ranges.
