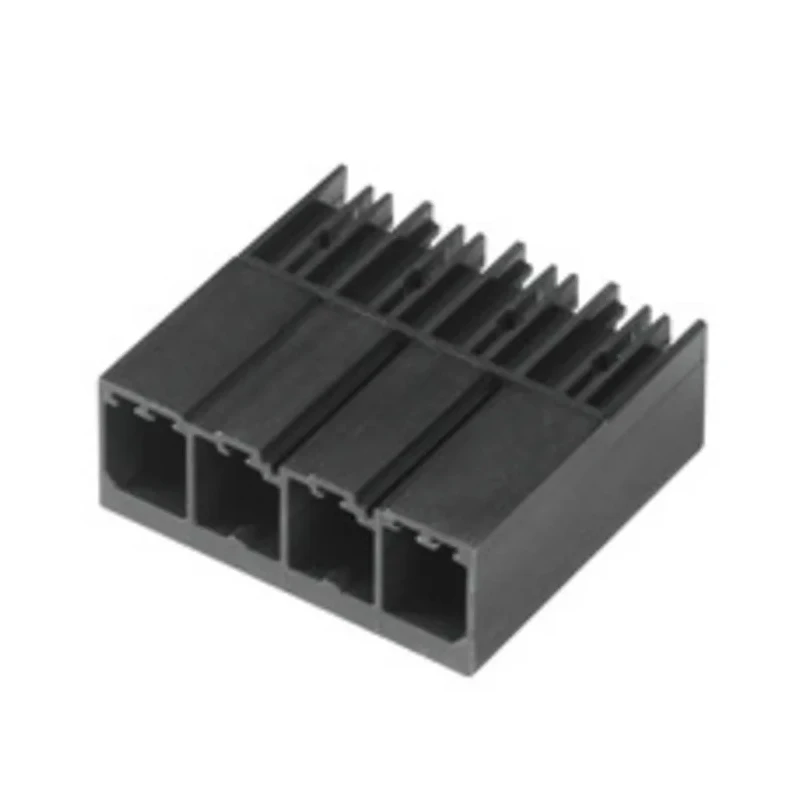

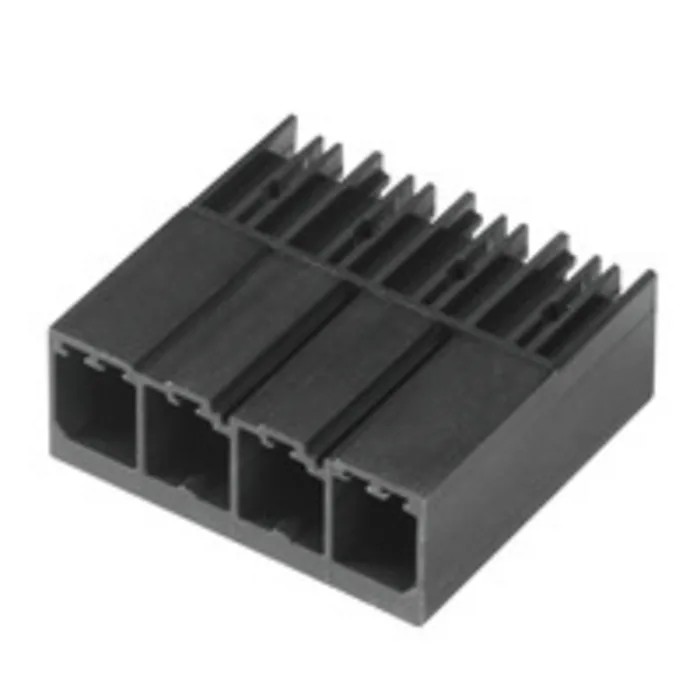

Weidmüller SV Series PCB Connector 5-Contact 7.62 mm Pitch 1 Row Male Straight Orientation Solder Connection Black 1930300000

Weidmüller 1930300000 SV Series PCB Connector is a high-quality male header connector designed with a 7.62 mm pitch and single row contact layout, suitable for electronic component integration and power connector applications. It features a robust copper alloy and polyamide fibreglass housing that ensures mechanical durability and electrical isolation.

With 5 contacts rated for 35A current and 1kV voltage, this connector supports reliable electrical performance in demanding industrial environments. The straight orientation and solder wire connection method facilitate solid and stable PCB assembly. Compact size dimensions - length 35.48 mm, width 28.3 mm, and depth 11.4 mm - allow for efficient use in confined spaces.

The connector's unique mating profile ensures touch safety exceeding 3 mm clearance, minimizing electrical hazards, and the design incorporates a coding mechanism that prevents incorrect connections, enhancing operational reliability. It can operate under derating conditions up to 125 °C, allowing use in moderately high-temperature settings.

This product is made in Romania and belongs to the well-regarded SV series, offering consistent quality and performance suited to electronics manufacturing, industrial power systems, and PCB interconnection tasks.

Housing constructed from copper alloy and polyamide fibreglass. Male connector with straight orientation and solder connection method. Rated for 35A current and 1kV voltage load. Dimensions: 35.48 mm length, 28.3 mm width, 11.4 mm depth.

Single row with 5 contacts spaced at 7.62 mm pitch. Unique coding and mating profile for touch safety and correct connectivity. Operates reliably up to 125 °C with derating.

This Weidmüller SV Series PCB Connector is ideal for use in electronic component manufacturing, power and industrial electronics, and other applications requiring reliable PCB connectivity. For more precision connectivity solutions, explore the complete range of Weidmüller pluggable terminal blocks and PCB Connectors available on EnvMart.
