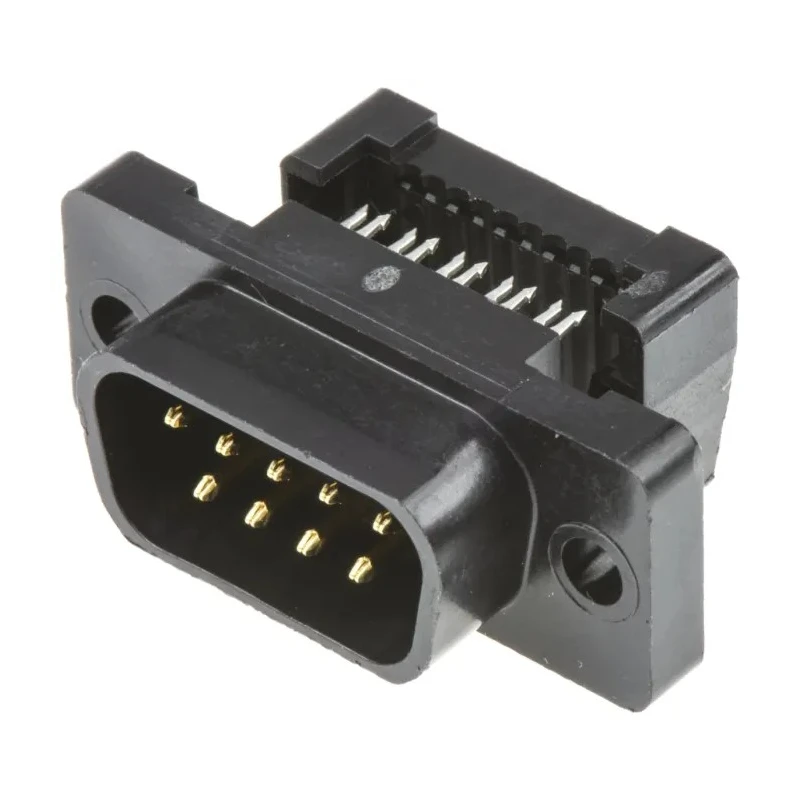

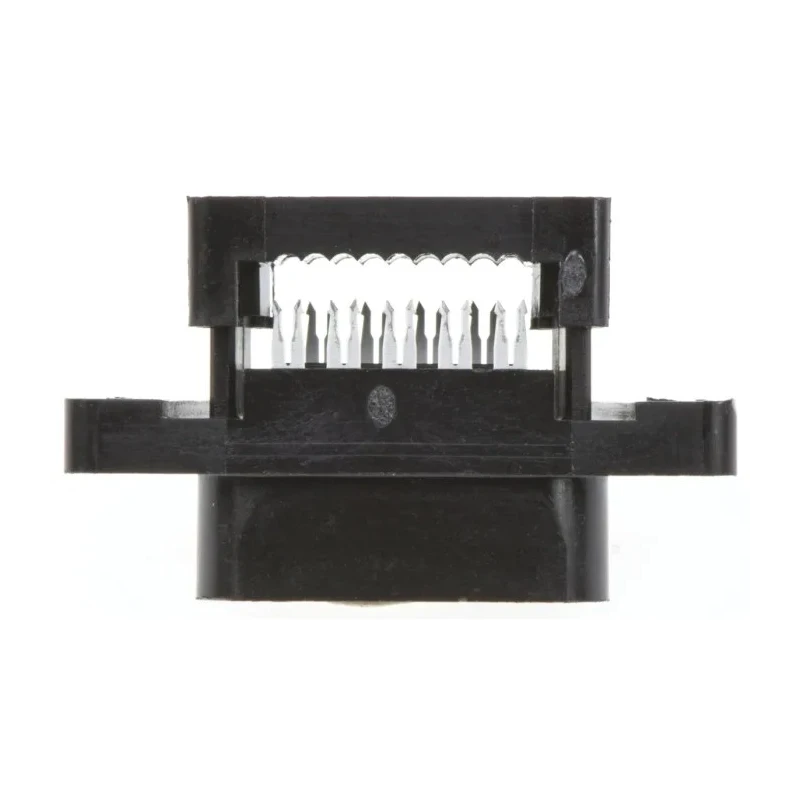

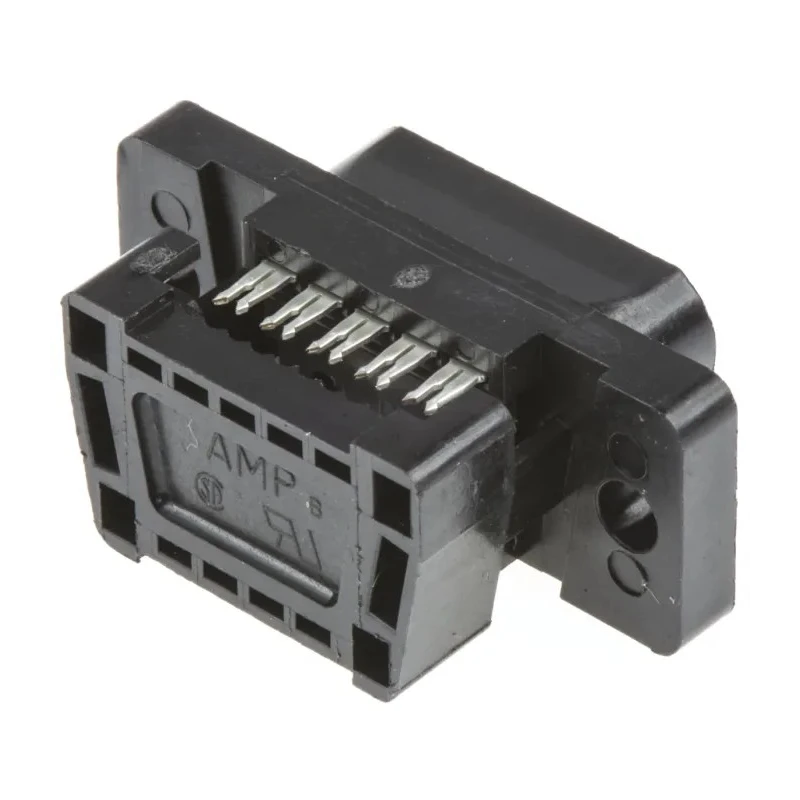

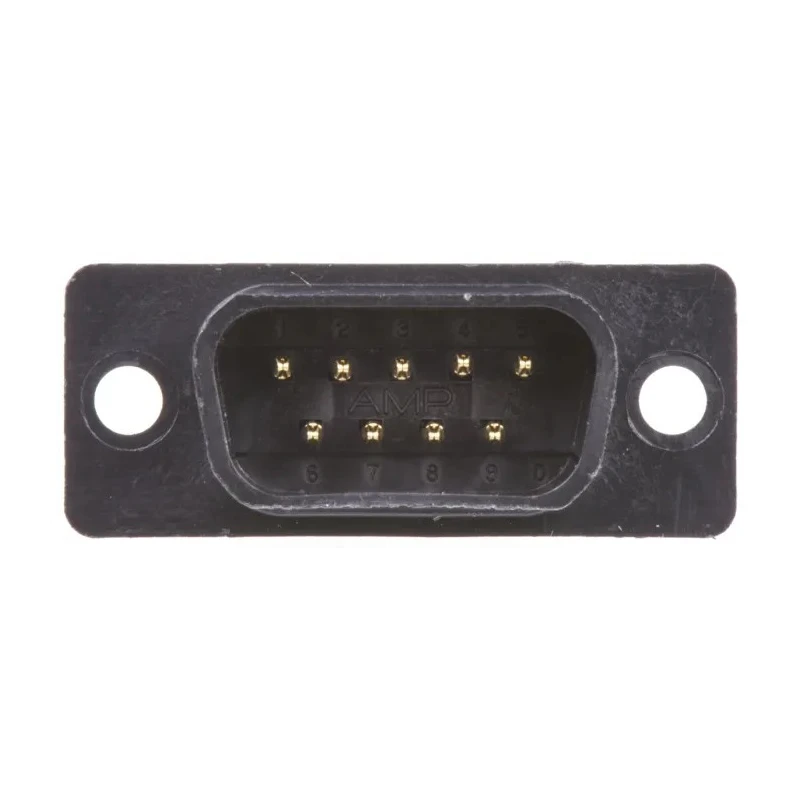

TE Connectivity Amplimite HDF-20 9 Way Right Angle 2.77 mm Pitch Cable D-Sub Connector with 4-40 Screw Male 1658615-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250.0V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Mounting Hardware | 4-40 Screw |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.77mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| RS PRO 9 Way Straight 1.27 mm Pitch Cable D-Sub Connector MaleBrand | RS PRO |
Key Features
- The connector features a durable thermoplastic housing rated 94V-0 for safety.
- It includes 9 gold over nickel plated phosphor bronze contacts ensuring reliable conduction.
- The contact pitch is 2.77 mm suitable for precision cable connections.
- Operating temperature ranges from -55°C to 105°C for harsh environment use.
- The connector uses IDC termination type for flat ribbon cables on 1.27 mm centres.
- It complies with RoHS standards for environmental safety.
- The right angle orientation enables compact cable routing in assemblies.
- Mounting hardware includes 4-40 screws for secure fixture.
Product Description
TE Connectivity 1658615-4 Amplimite HDF-20 9 Way Right Angle Cable D-Sub Connector offers a low profile, all-plastic design with a pre-assembled black thermoplastic housing rated at 94V-0. This IDC cable connector is engineered to interface with round conductor flat ribbon cables on 1.27 mm centres, providing secure and reliable connections for electronic hardware.
The connector assembly comprises of 9 male contacts manufactured from phosphor bronze with gold-over-nickel plating, ensuring excellent conductivity and corrosion resistance. It supports cable mounting with 4-40 screw hardware and features a right angle orientation, making it suitable for space-constrained installations.
Operating in a wide temperature range from -55°C to 105°C, this connector is well-suited for various industrial, electronic, and communication applications. It complies with RoHS standards, ensuring environmental and user safety.
The Amplimite HDF-20 series is compatible for mating with HD-20 Board Mount and HDE all-plastic D-sub cable connectors to provide flexible system integration. Optional strain relief and screwlocks are available separately to enhance mechanical robustness.
The connector housing is made from durable thermoplastic rated at 94V-0. Contacts are phosphor bronze with gold over nickel plating for longevity and conductivity. 9 male contacts with 2.77 mm pitch offer precise connection.
Right angle configuration supports efficient cable management. Mounting hardware includes 4-40 screws for secure retention. Termination type is IDC for flat ribbon cables. Operating temperature range -55°C to 105°C suits harsh environments.
RoHS compliant for environmental and user safety. Compatible with HD-20 Board Mount and HDE D-Sub Connectors.
This connector is ideally used in electronics assemblies for computing, industrial, and communications equipment where reliable, compact, and environmentally compliant cable interfacing is required. Discover a variety of related connectors and accessories in this category when browsing EnvMart for your component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact pitch of this connector is 2.77 mm, suitable for precision cable connections.
It operates within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
The contacts are made from phosphor bronze and are plated with gold over nickel to ensure reliable conductivity and corrosion resistance.
This model features 9 male contacts for effective connectivity.
It uses IDC (Insulation Displacement Connector) termination type for flat ribbon cables on 1.27 mm centres.
The connector includes 4-40 screws for secure mounting.
Yes, it complies with RoHS standards for environmental safety.
The housing is made from durable thermoplastic rated at 94V-0 for safety.
The connector has a voltage rating of 250.0V.
This connector features a right angle orientation, which aids in compact cable routing.
It is compatible for mating with HD-20 Board Mount and HDE all-plastic D-sub cable connectors.
The country of origin for this connector is India.
