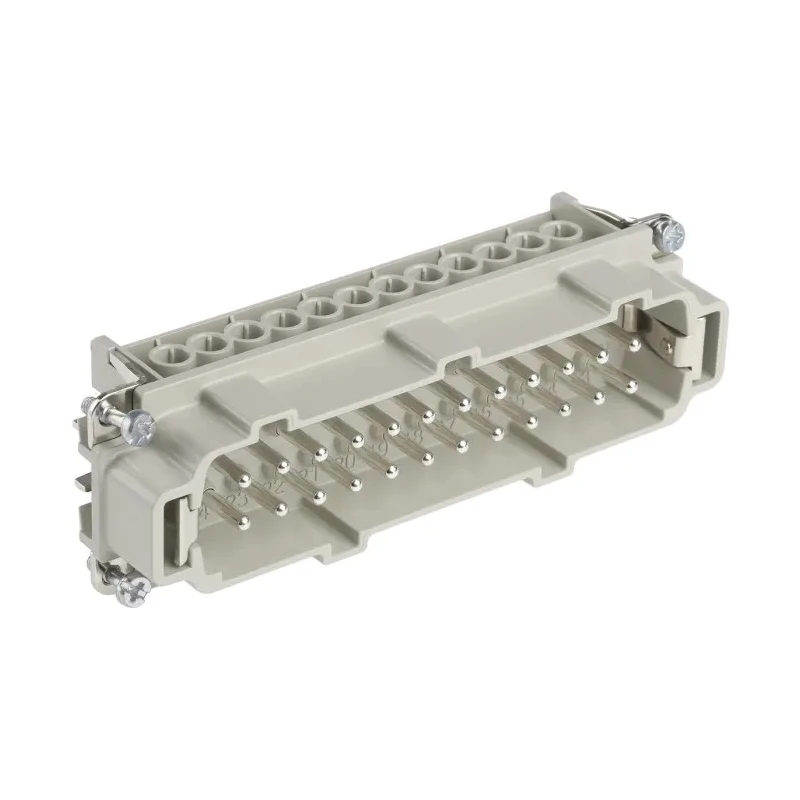

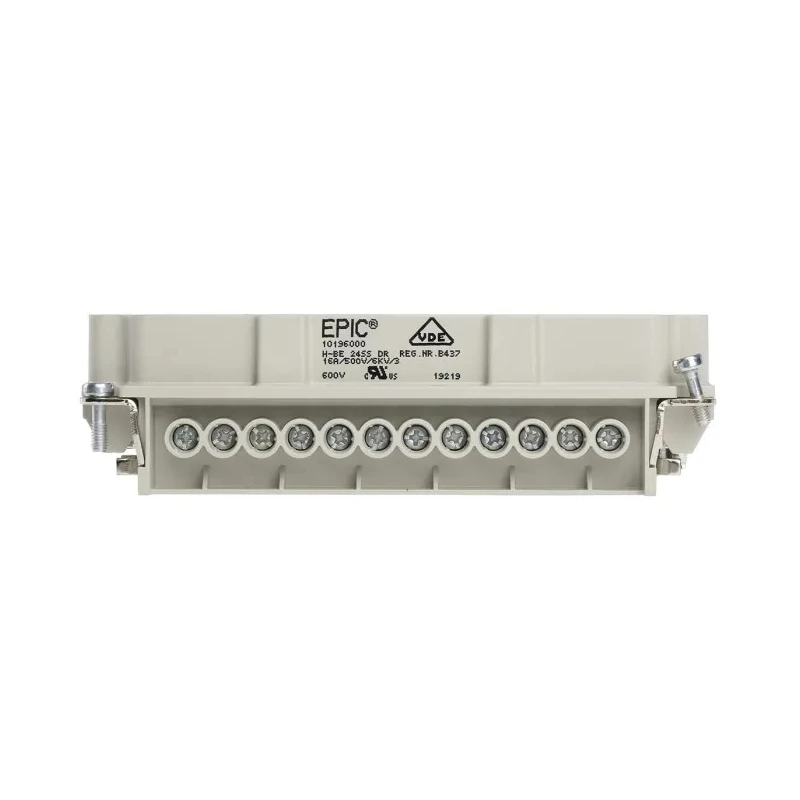

EPIC Heavy Duty Power Connector Insert 16A, 24 Contacts, H-BE Series Male, 600V, IP65 10196000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 600V |
| Brand | EPIC |
| Orientation | Straight |
| Model | 10196000 |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | H-BE |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 24+PE |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- This connector insert supports a current rating of 16A suitable for power applications.
- Equipped with 24 silver-plated copper alloy contacts for reliable electrical conductivity.
- Features a polycarbonate housing that ensures impact resistance and long service life.
- Designed with screw terminals to allow easy installation without special tools.
- Offers a broad operating temperature range from -40°C to +100°C for demanding environments.
- Has an IP65 rating providing dust-tight and water-resistant protection.
- Intended for industrial uses such as machine assembly, mining, and construction sites.

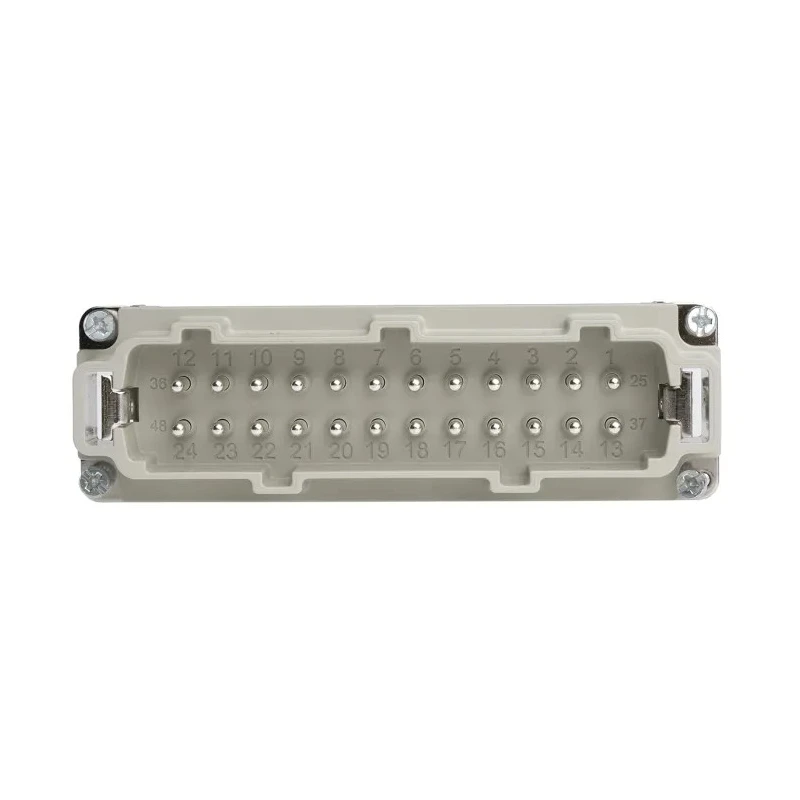

- Includes 2 rows with a pole format of 24+PE for secure wire connections.
Product Description
EPIC 10196000 Heavy Duty Power Connector Insert Male from the H-BE Series offers robust electrical connection capabilities with a current rating of 16A and voltage rating of 600V. Its polycarbonate housing ensures durability and resistance to mechanical impact, suited for demanding industrial environments. The insert features 24 high-conductivity copper alloy contacts with silver plating, providing low electrical resistance (2mΩ) and reliable performance over its service life with up to 500 mating cycles.
The connector is designed for cable mount installation with screw terminals that simplify wiring without requiring specialist tools. It supports a wide operating temperature range of -40°C to +100°C and has an IP65 protection rating to resist dust and water ingress, making it ideal for tough conditions.
Common applications include use in machine assembly, mining, construction, and other industrial settings where secure and durable power connections are critical. The 24 contacts plus protective earth (PE) wiring enable multiple wire connections in a compact footprint.
Current rating of 16A for high-power use cases. Polycarbonate housing for improved durability and impact resistance. Silver-plated copper alloy contacts for excellent conductivity and corrosion resistance. Screw terminal connection for ease of installation.
IP65 rated for dust-tight and water resistance protection. Operating temperature range from -40°C to +100°C. Designed for industrial applications including machine assembly and mining. Two-row configuration with 24 contacts plus PE for comprehensive wiring.
Set contains 1 Male Heavy Duty Power Connector Insert, H-BE Series with 24 contacts and rated for 16 amps at 600 volts. Explore the complete range of EPIC connectors and power solutions at EnvMart to meet your industrial power connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a current rating of 16A, making it suitable for high-power applications.
The voltage rating for this model is 600V, which allows it to handle substantial electrical loads.
It features 24 contacts plus a protective earth (PE) connection, allowing for multiple wire connections in a compact design.
The connector has an IP65 rating, providing protection against dust and water ingress, suitable for harsh environments.
The contacts are made of silver-plated copper alloy, which ensures excellent conductivity and corrosion resistance.
It operates effectively within a temperature range of -40°C to +100°C, suitable for demanding industrial conditions.
This model supports cable mount installation with screw terminals, allowing for easy wiring without the need for special tools.
The housing is made of polycarbonate, which provides durability and impact resistance for industrial applications.
It has a two-row configuration, which helps in organizing the connections efficiently.
It accommodates wire sizes ranging from 0.5mm² to 2.5mm², allowing flexibility in wiring options.
This connector is designed for industrial applications such as machine assembly, mining, and construction sites, where secure power connections are essential.
The EPIC Heavy Duty Power Connector Insert is manufactured in Germany, ensuring adherence to high manufacturing standards.
