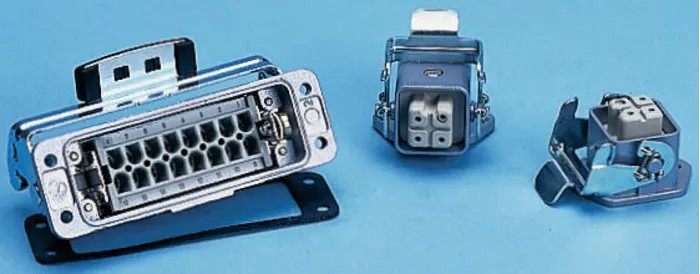

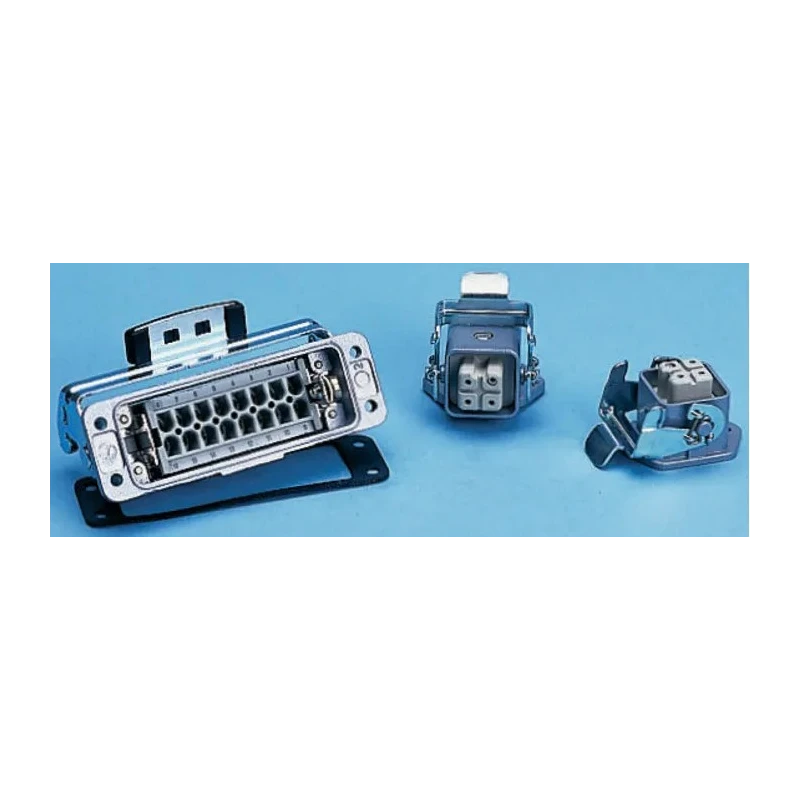

EPIC Heavy Duty Power Connector 4 Way 10A 250V H-A Series 10423500+10432000

EPIC 10423500+10432000 Heavy Duty Power Connector 4 Way 10A 250V H-A Series is engineered for demanding industrial, manufacturing, and heavy-duty electrical applications requiring reliable power connection solutions.

The connector features a robust metal body construction providing mechanical strength and environmental protection. It supports 4 contacts plus an earth pin to ensure safety and grounding during use. Terminals are screw-based with wire protection leaves allowing for cable acceptance up to 2.5 mm² cross-section.

Contacts are made from hard silver plated copper alloy delivering outstanding electrical conductivity and resistance to corrosion, enhancing longevity. The plug and socket inserts are interchangeable, enabling appliance inlet fixed plug and free cable mounting socket configurations for versatile installations.

The cable mounting options include compression glands which seal circular cables, achieving IP54 and IP65 ingress protection standards, thus suitable for industrial environments exposed to dust and moisture.

Despite the compact physical size, the H-A series connectors are rated to operate safely at 250 Vac for industrial group C applications. This product accommodates the typical power requirements of small to medium industrial equipment.

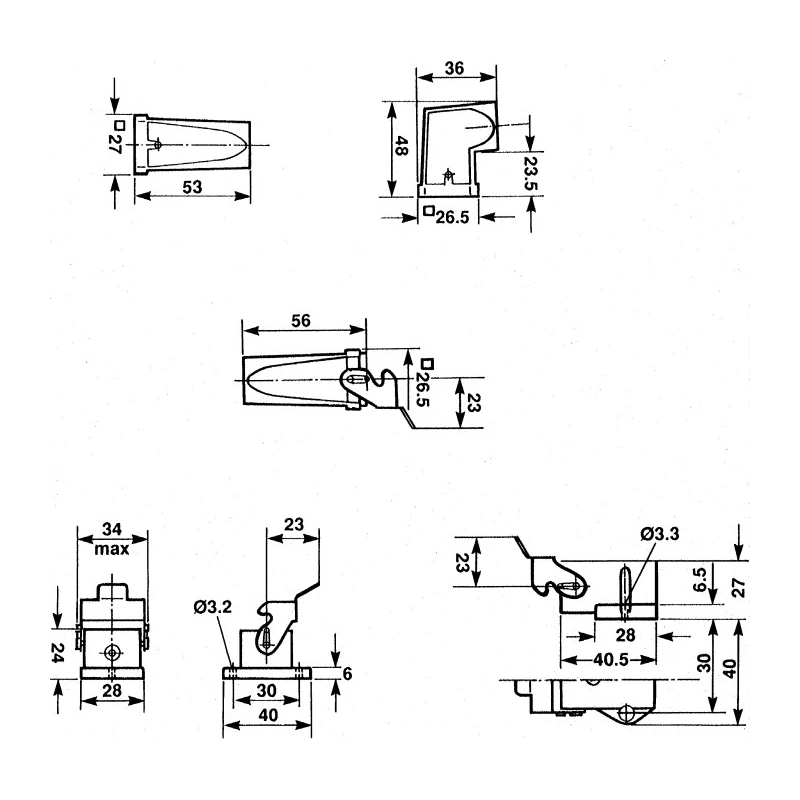

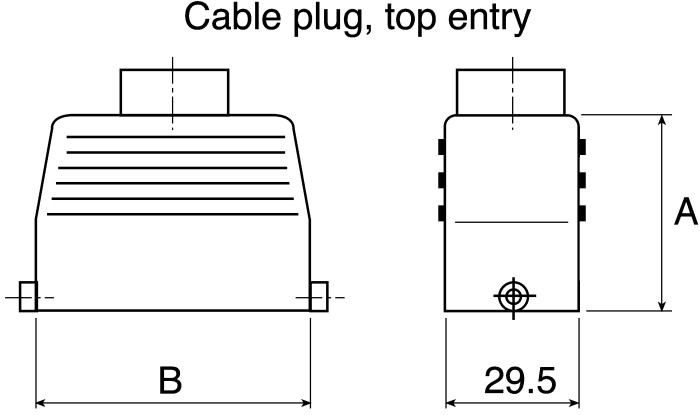

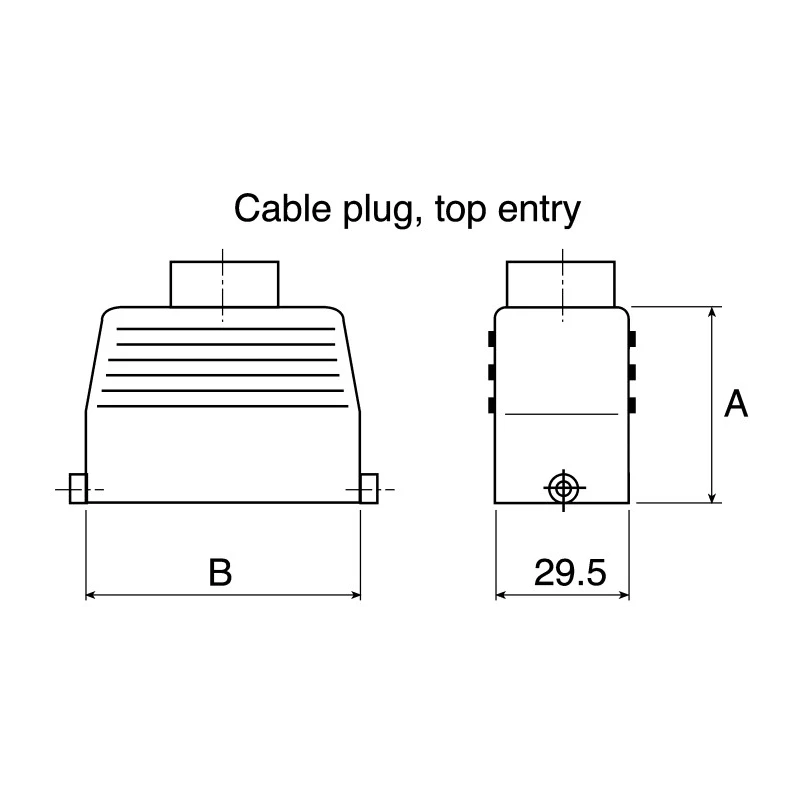

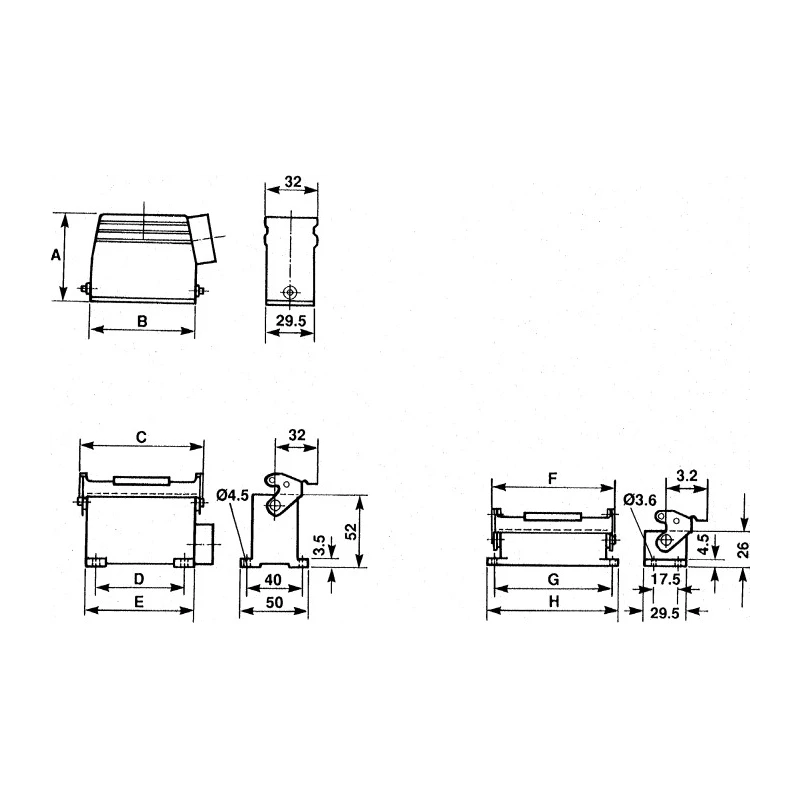

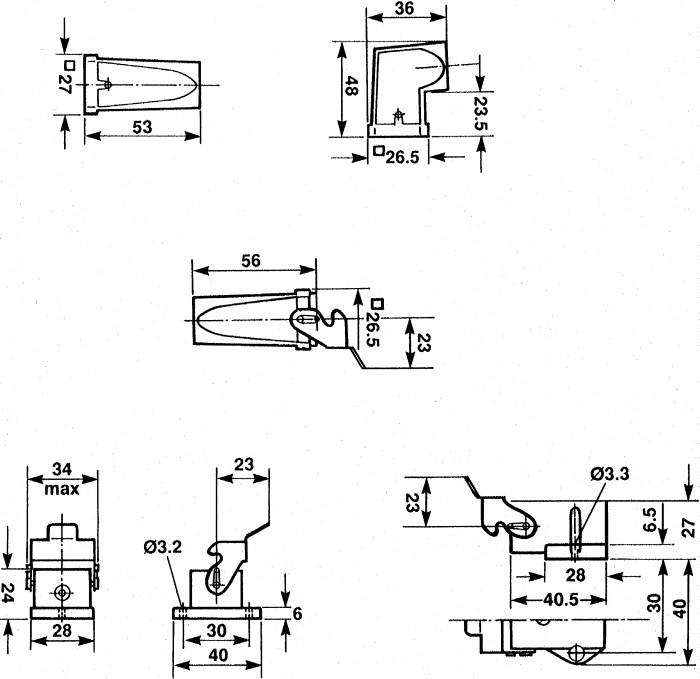

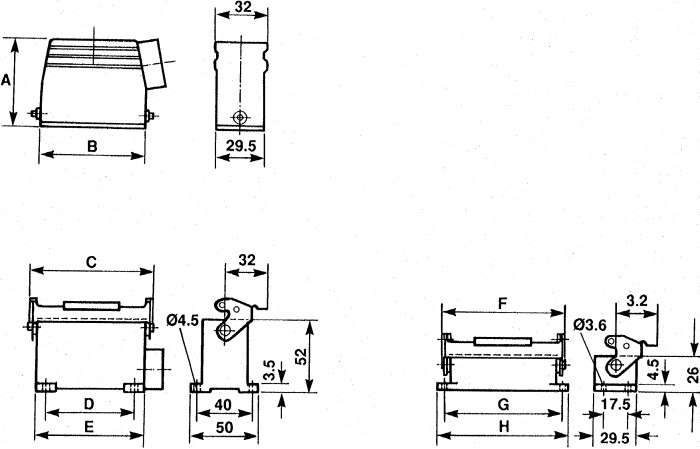

The 3 and 4-way versions are available in both plastic and metal-bodied variants, with larger versions (10 to 48 ways) offered exclusively in metal bodies. The detailed design supports panel mount sockets, cable plugs with side and top entry, providing multiple mechanical options to suit various installation needs.

The metal housing ensures protection against mechanical and environmental impacts. Wire protection leaves prevent conductor damage upon terminal tightening. Additional earth pin in every connector enhances safety grounding.

Interchangeable inserts widen compatibility across devices and installations. Compression glands provide robust sealing for cable ingress protection. Compact design suits industrial applications with limited installation space.

Rated for 10A current and 250V AC voltage ensuring reliable power delivery. This product is manufactured in Germany to high-quality standards, ensuring consistent performance and reliability in industrial settings.
