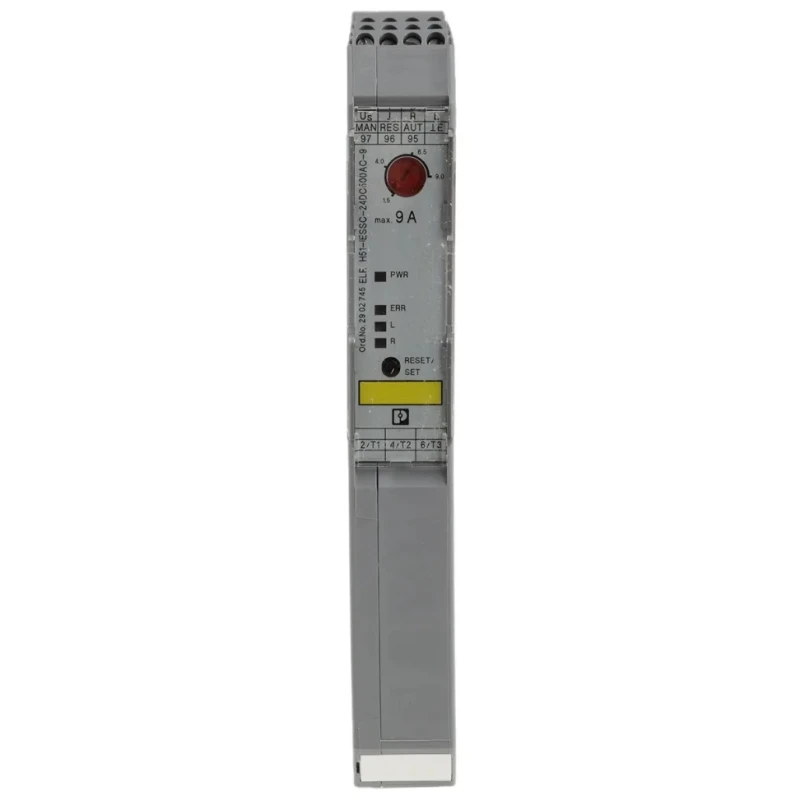

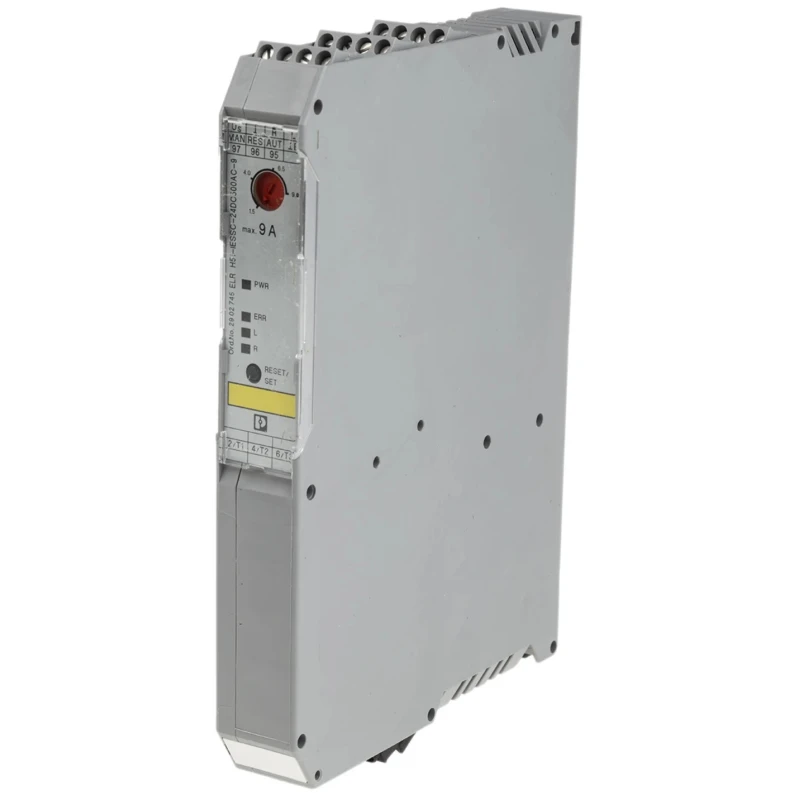

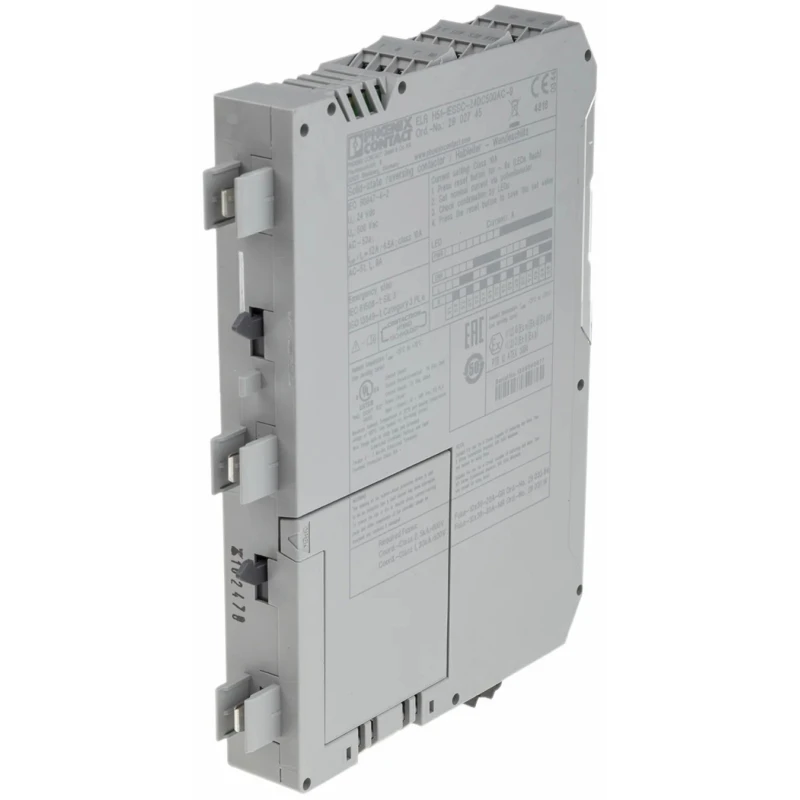

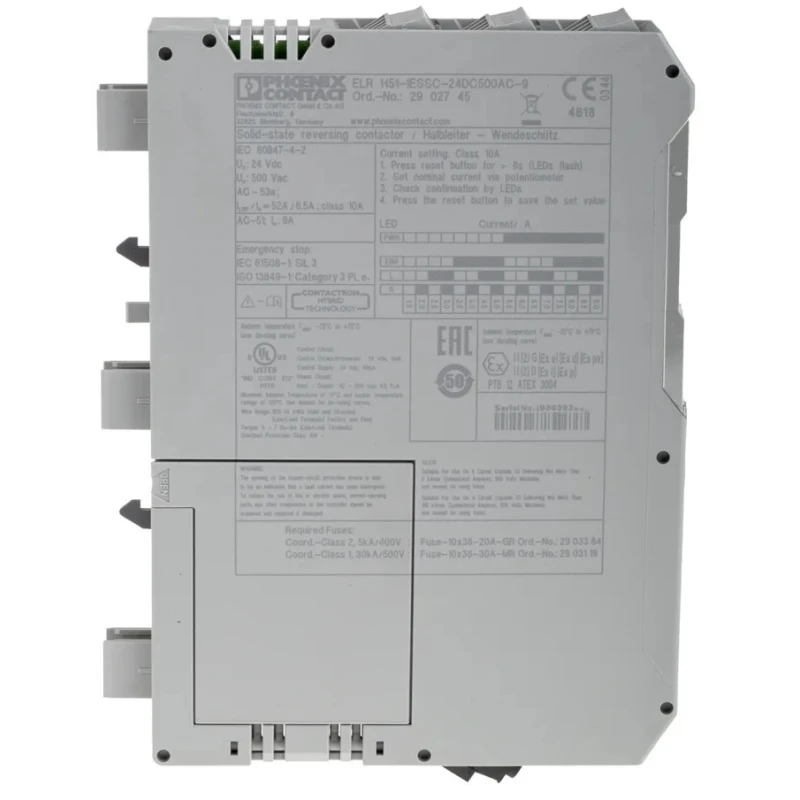

Phoenix Contact Motor Starter Reversible 3 Phase 9A 10W 550V AC DIN Rail Mount ELR H51-IESSC-24DC500AC-9
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Model | H51-IESSC-24DC500AC-9 |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Overall Length | 160mm |
| Current Rating | 9A |
| Series | ELR H51-IESSC-24DC500AC-9 |
| Overall Width | 22.5mm |
| Power Rating | 10W |
| Sub Type | Reversible |
| Number of Phases | 3 |
| Maximum Voltage | 550V ac |
| Hazardous Area Certification | ATEX |
| Overall Depth | 114.5mm |
Key Features
- Short-circuit proof hybrid motor starter suitable for industrial automation.
- Adjustable overload shutdown enhances motor protection.
- Emergency stop function for improved safety in motor control.
- Compact DIN rail mounting saves installation space.
- Low-wear switching reduces maintenance requirements.
- Screw connections enable secure and reliable wiring.
- Rated actuating current of 5mA and voltage of 24V DC for control signals.
- Complies with multiple international standards including UL and IEC certifications.
Product Description
Phoenix Contact ELR H51-IESSC-24DC500AC-9 motor starter is a reversible 3-phase hybrid motor starter designed for industrial use with motors up to 9A current, 10W power, and 550V AC voltage. This device offers an innovative alternative to conventional mechanical contactor circuits, providing short-circuit proof operation with enhanced reliability.
The motor starter mounts easily on DIN rails and features a compact form factor with overall dimensions of 160mm length, 22.5mm width, and 114.5mm depth. It includes low-wear switching technology for long service life and screw connections that facilitate efficient wiring and installation. The rated actuating current is 5mA with a control voltage of 24V DC.
Safety and operational flexibility are improved by the adjustable overload shutdown and emergency stop functions, making it especially suitable for critical industrial applications. The product meets various certification standards such as UL, ISO 13849, IEC 61508, EN 60947-4-2, and cUL, ensuring compliance with industry regulations. Its IP20 rating provides protection against solid foreign objects, suitable for indoor electrical cabinet installations.
This motor starter is certified for hazardous area use according to ATEX II (2) GIEC and is ideal for applications in motor controlling, power distribution boards, and automation systems requiring reliable and compact motor starting solutions. It offers up to 75% less wiring time compared to traditional contactors.
Short-circuit proof hybrid motor starter alternative to mechanical contactors. Adjustable overload shutdown protects motors from damage. Emergency stop function enhances overall system safety. Compact DIN rail mount saves valuable installation space.
Low-wear switching extends operational life and reduces maintenance. Screw connections provide fast and reliable wiring. Rated actuating current of 5mA and control voltage of 24V DC. Certified with UL, IEC, ISO standards and ATEX for hazardous environments.
IP20 protection suitable for indoor applications within control cabinets. Application areas include motor control, power distribution, and automation. Explore the full range of Motor Starters and automation components on EnvMart for your industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this motor starter is 550V AC.
This model has a current rating of 9A.
It uses DIN rail mounting, which allows for compact installation.
The overall dimensions are 160mm in length, 22.5mm in width, and 114.5mm in depth.
It includes an adjustable overload shutdown and an emergency stop function to enhance safety in motor control.
The power rating is 10W.
The IP rating is IP20, providing protection against solid foreign objects.
Yes, it is certified for hazardous area use according to ATEX II (2) GIEC.
The rated actuating current is 5mA with a control voltage of 24V DC.
It is designed for reversible 3-phase motors up to 9A current.
It complies with UL, ISO 13849, IEC 61508, EN 60947-4-2, and cUL standards.
Low-wear switching technology extends the operational life and reduces maintenance requirements.
