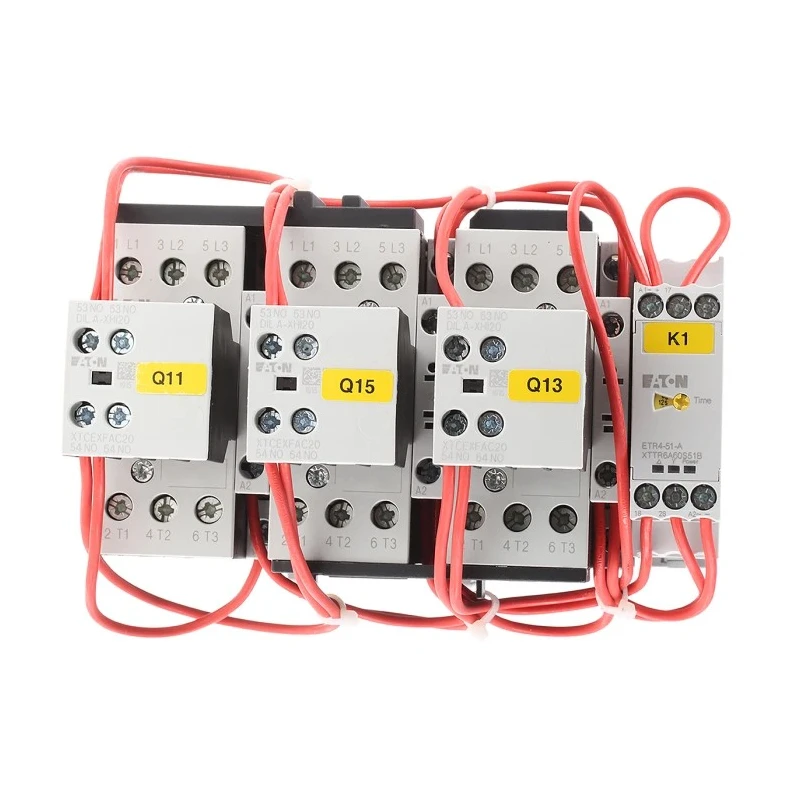

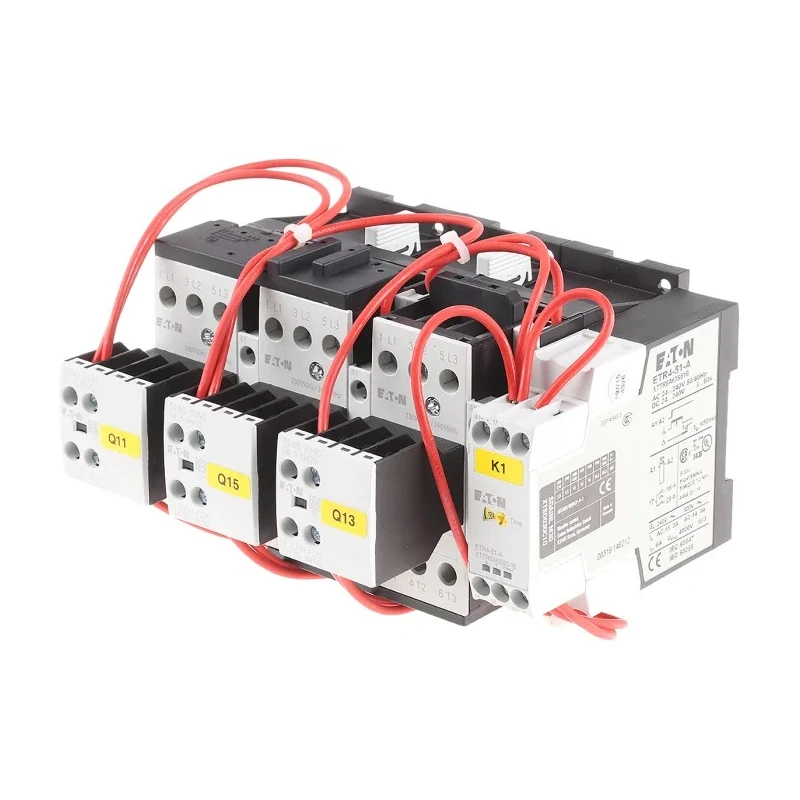

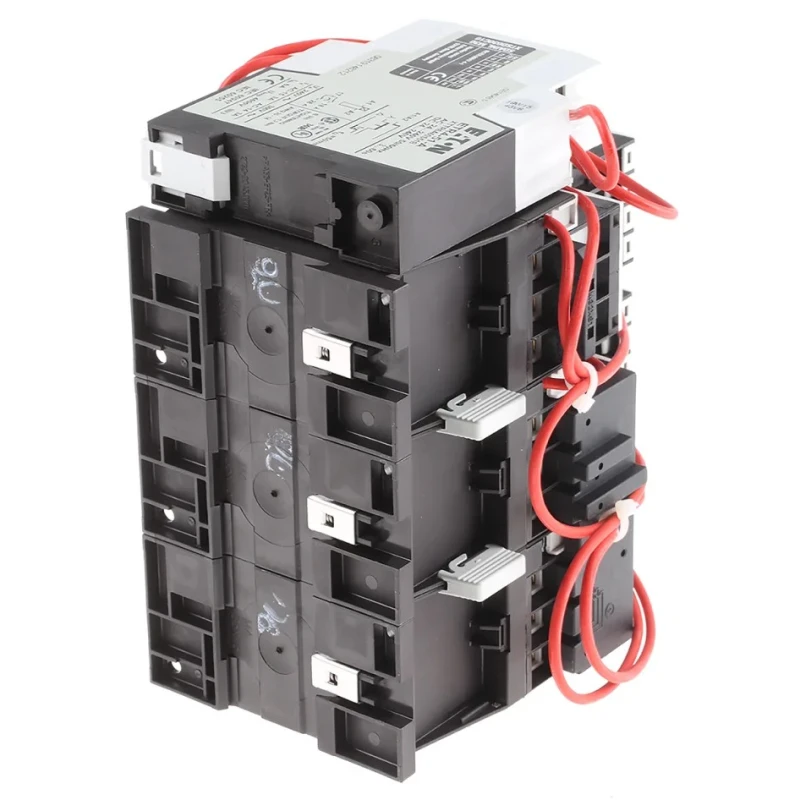

Eaton Star Delta Starter 230V AC 15 kW 3 Phase Industrial Motor Control 278361 SDAINLM30(230V50HZ,240V60HZ)

Eaton 278361 SDAINLM30(230V50HZ,240V60HZ) Star Delta Starter is a robust three-phase motor starter designed for 230V AC systems with a power rating of 15 kW. This starter supports industrial motor control by reducing the starting current, thereby enhancing longevity and reliability of induction motors.

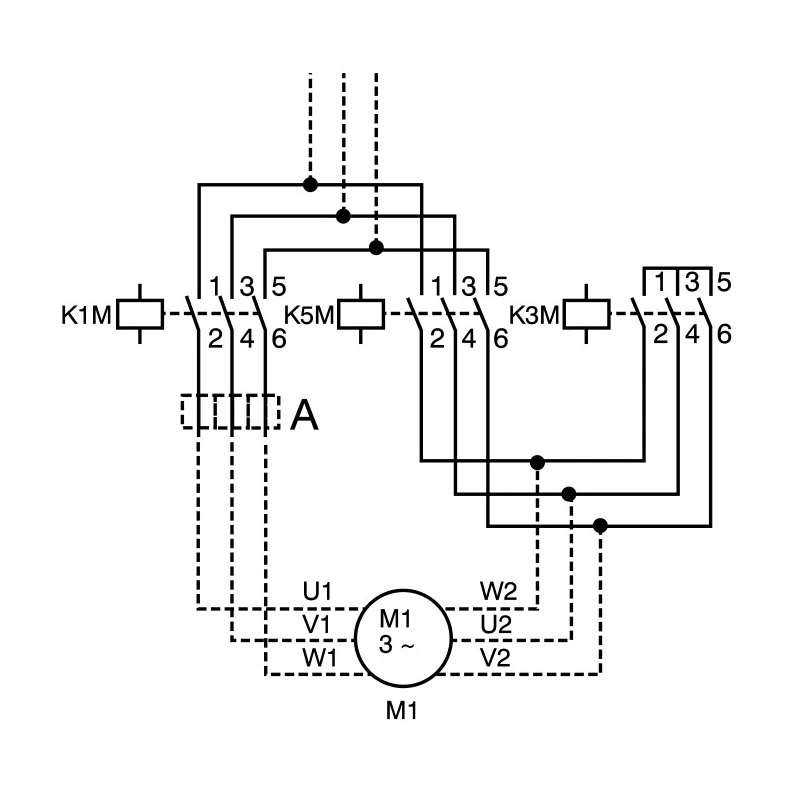

It features a star-delta configuration with a timer adjustable from 0 to 30 seconds, facilitating smooth transitions between star and delta connections during the motor start-up process. Compatible with Eaton's ZB32 overload relays, this device offers essential protection against motor overload conditions, although the relays are sold separately.

The starter has a compact open chassis design measuring 85 mm in length, 158 mm in width, and 138 mm in depth, ideal for direct mounting on 35 mm DIN rails within custom enclosures. It is constructed from Eaton components that conform with IEC 947 standards, assuring compliance with international safety and performance norms.

With an IP00 rating, the starter is intended for installation in controlled environments where dust and moisture ingress are minimal. It operates reliably in ambient temperatures ranging from -25°C to +40°C, making it suitable for various industrial settings including manufacturing, water treatment, and HVAC industries.

The product is manufactured in Germany, reflecting high-quality engineering and durability standards. This starter is compatible with motors of efficiency class IE3, supporting energy-efficient industrial operations.

Designed for use with three-phase induction motors rated up to 15 kW at 230V AC. Features a 30A current rating suitable for heavy industrial applications. Includes a star delta timer adjustable between 0 and 30 seconds for precise control.

Compact dimensions of 85 mm length, 158 mm width, and 138 mm depth for easy DIN rail mounting. Constructed with high-quality Eaton components compliant with IEC 947 standards. IP00 ingress protection, suitable for mounting inside custom electrical enclosures.

Compatible with Eaton ZB32 thermal overload relays for motor protection, sold separately. Operating temperature range from -25 to +40°C for reliable performance in varied environments. Manufactured in Germany ensuring premium quality and performance consistency.

Suitable for motors with efficiency class IE3 to optimize energy use and reduce losses.

This Eaton Star Delta Starter provides an effective solution for starting large industrial motors by limiting inrush current and mechanical stress, thereby enhancing system reliability and lifespan. It is widely applicable in industrial automation, manufacturing plants, HVAC, water treatment facilities, and other heavy-duty motor control environments.
