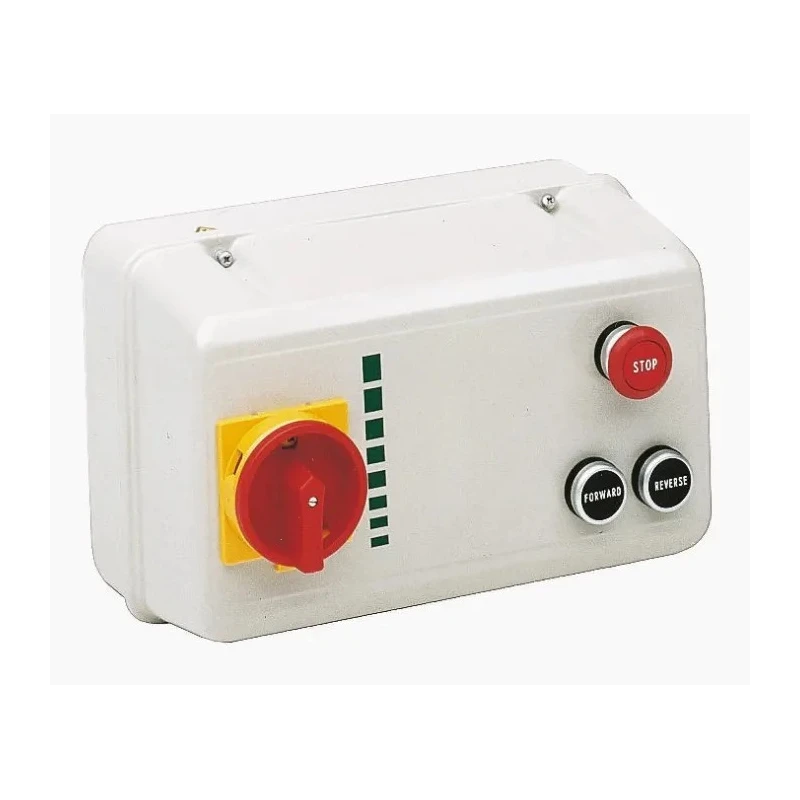

Eaton DOL Starter 3 Phase 400V AC 5.5 kW IP55 Enclosure XDRP 118543 XDRP5,5/ST(400V50HZ,440V60HZ)

Eaton 118543 XDRP5,5/ST(400V50HZ,440V60HZ) DOL Starter provides reliable motor control for 3 phase electric motors with a power rating of 5.5 kW operating at 400V AC. This reversing DOL starter is enclosed in a robust IP55 rated steel enclosure coated with epoxy paint RAL 7032, suitable for industrial electrical, automation, and control applications requiring compliance with IEE regulations.

The starter features AC-3 rated triple pole contactors and a switch disconnector fitted with IP20 terminals to ensure safe and effective switching operations. The control station includes an IP65 rated mushroom headed stop pushbutton and IP65 flush operator pushbuttons for forward and reverse commands, all with IP20 terminals for secure connections.

The enclosure is surface-mountable and includes 4x25mm and 2x32mm knockouts for versatile cable entry options, enabling straightforward wiring installations. The device is designed primarily for reversing Motor Starters, comprising two contactors coupled with a mechanical interlock for safe forward and reverse motor direction change.

This model uses Moeller components compliant with IEC standards IEC 943-3 for isolators, IEC 947-5-1 for pushbuttons, and IEC 947-4-1 for contactors, guaranteed to offer high safety and reliability in industrial environments. The starter is pre-wired to accept Moeller Z00 or ZB thermal overload relays which provide single phasing protection and comply with IEC 947-4.

Please note that the overload relay is not included and must be ordered separately to match the full operational requirements. The starter is ideally suited to industrial, manufacturing, commercial, and HVAC applications where robust motor control is necessary.

The physical size of the enclosure is 184 mm in height, 284 mm in width, and 184 mm in depth. Explore further automation and motor control solutions on EnvMart to find complementary products and accessories. The starter includes a reversing DOL configuration suitable for forward and reverse motor control.

Equipped with IP65 rated mushroom head stop and flush operator pushbuttons with IP20 terminals. Comes with triple pole AC-3 rated contactors and switch disconnectors for optimal motor protection and control. The enclosure has 4x25mm and 2x32mm knockouts for easy wiring.

Designed for surface mounting with dimensions 184mm (H) x 284mm (W) x 184mm (D). Complies with IEC specifications for isolator, pushbuttons, and contactors with high safety standards. The device isolates and switches compliant with IEE 16th Edition for electrical isolation and safety.

Manufactured using Moeller components ensuring availability and reliability.
