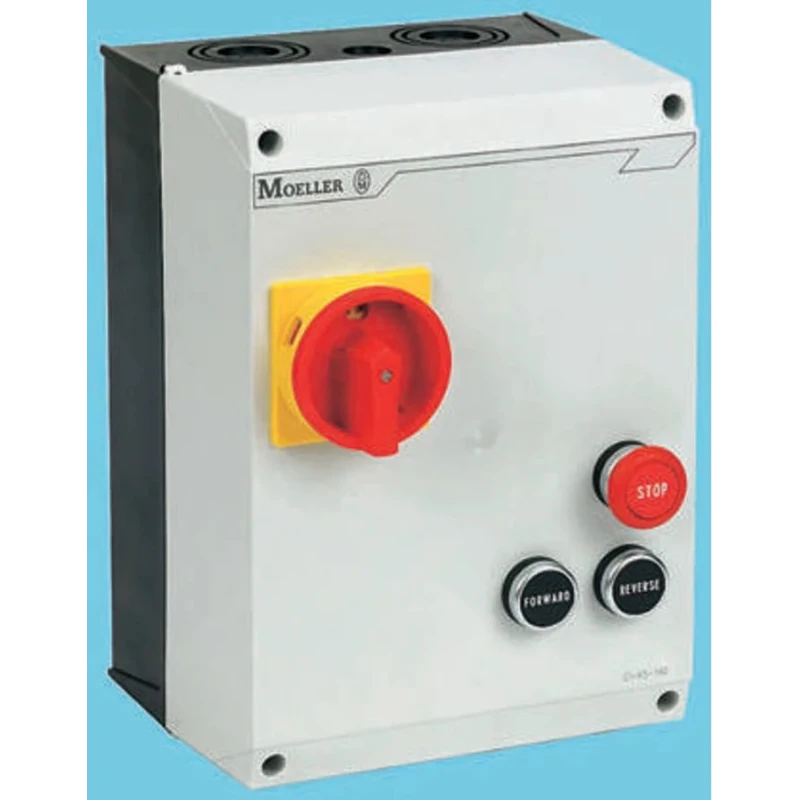

Eaton DOL Starter 230V AC 4 kW 3 Phase IP65 Surface Mount XDRP 118536 XDRP4/I(230V50HZ,240V60HZ)
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Model | 118536 XDRP4/I(230V50HZ,240V60HZ) |
| IP Rating | IP65 |
| Mount Type | Surface |
| Overall Length | 280mm |
| Series | XDRP |
| Overall Width | 200mm |
| Power Rating | 4kW |
| Sub Type | DOL |
| Number of Phases | 3 |
| Maximum Voltage | 230V ac |
| Number of Poles | 3 |
| Overall Depth | 160mm |
Key Features
- The starter is totally insulated and enclosed with a polycarbonate IP65 enclosure suitable for industrial environments.
- It includes AC-3 rated triple pole contactors and switch disconnectors with padlock provisions.
- The enclosure has a light grey lid and black base built to comply with IEE Regulations, 16th Edition.
- Pre-wired to accept ZB thermal overload relays which provide single phasing sensitivity per IEC 947-4.
- Overload relay is not included and must be ordered separately to match full load current requirements.
- Fitted with metric knockouts for easy cable entry.
- Designed for surface mounting in industrial control applications.
Product Description
Eaton 118536 XDRP4/I(230V50HZ,240V60HZ) DOL Starter is a surface mount reversing direct-on-line motor starter designed for three-phase electric motors with a power rating of 4 kW and an operating voltage of 230V AC. Housed in a fully insulated and IP65 rated polycarbonate enclosure, this starter series complies with the IEE Regulations, 16th Edition, ensuring safe isolation and switching.
The robust enclosure features a grey (RAL 7035) lid and black (RAL 9005) base, equipped with AC-3 rated triple pole contactors and triple pole AC-3 rated switch disconnector. The disconnector supports up to three padlocks, allowing secure isolation procedures for maintenance safety. The unit is pre-wired to accept ZB series thermal overload relays known for single phasing sensitivity according to IEC 947-4 standards. Note that the overload relay must be ordered separately to match the motor's full load current.
Design highlights include metric knockouts aiding simple and flexible cable entry, compact overall dimensions of 280mm length, 200mm width, and 160mm depth, and a mounting type that is surface based for easy installation in industrial automation setups.
This DOL starter is ideal for applications in industrial, manufacturing, automation, and electrical control environments where reliable motor starting and protection are necessary. It enables effective switching and isolation of three-phase motors through a reversing functionality.
The starter enclosure is totally insulated and rated IP65 for dust and water protection. Includes AC-3 rated triple pole contactors and switch disconnectors with padlock provisions enhancing operational safety. Pre-wired for compatibility with ZB thermal overloads providing motor protection.
Compact and durable polycarbonate enclosure designed for surface mounting. Complies with IEE Regulations ensuring electrical safety standards. Overload relays must be purchased separately to match motor specifications. Suitable for industrial automation, manufacturing, and electrical motor control applications.
Set contains: Eaton DOL Starter unit with pre-wired enclosure ready for overload relay attachment. Explore more high-quality Motor Starters and automation control gear in EnvMart's comprehensive Electrical & Automation category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DOL Starter has a power rating of 4 kW.
This model operates at a maximum voltage of 230V AC.
The enclosure of this starter is rated IP65, providing protection against dust and water.
It is designed for surface mounting, making installation straightforward in industrial applications.
The overall dimensions are 280mm in length, 200mm in width, and 160mm in depth.
This starter is suitable for three-phase electric motors.
It includes AC-3 rated triple pole contactors which are essential for motor starting applications.
No, the overload relay is not included and must be ordered separately to match the motor's full load current requirements.
It features a switch disconnector with padlock provisions for secure isolation during maintenance.
It complies with IEE Regulations, 16th Edition, ensuring safe electrical isolation and switching.
The Eaton DOL Starter is manufactured in the United Kingdom.
It is designed for use in industrial automation, manufacturing, and electrical control environments.
