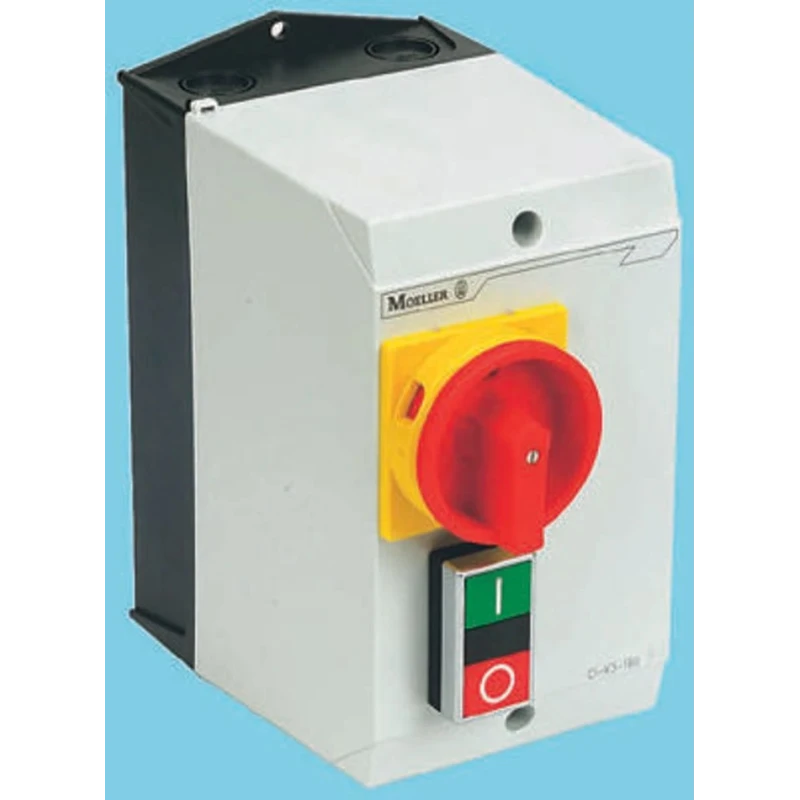

Eaton XDP Direct-On-Line Starter 7.5 kW 3 Phase 400V AC IP65 118531 XDP7,5/I(400V50HZ,440V60HZ)

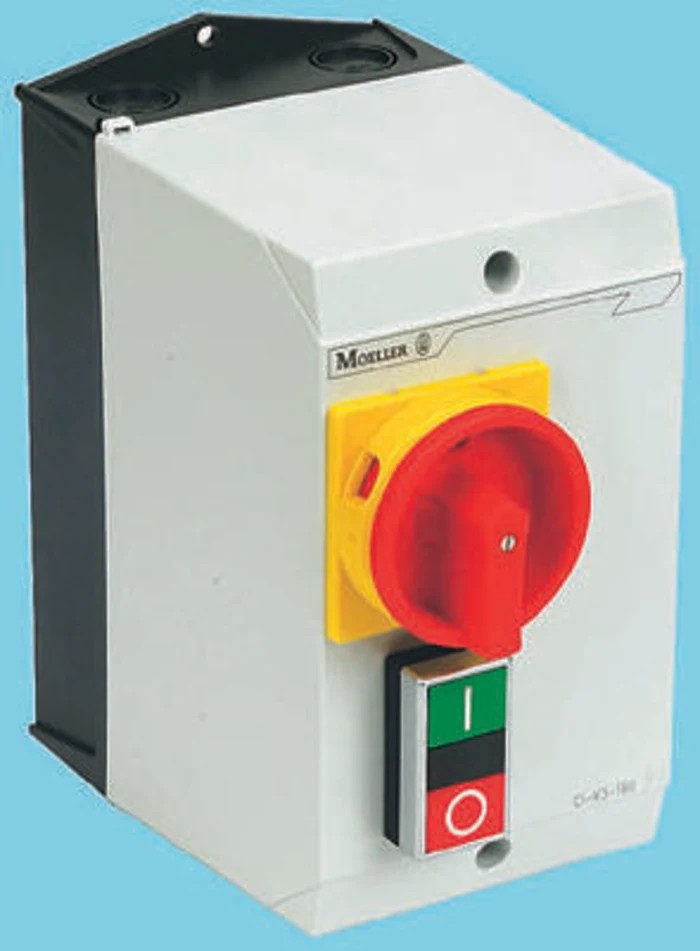

Eaton 118531 XDP7,5/I(400V50HZ,440V60HZ) Direct-On-Line Starter is designed to provide robust and reliable starting for three-phase induction motors rated at 7.5 kW under 400V AC supply with enhanced IP65 protection against dust and water ingress.

Constructed with a durable glass fibre reinforced polycarbonate case, this starter integrates an AC-3 rated triple pole contactor and a triple pole switch disconnector that ensures safe motor operation with on and off pushbuttons. The design also includes the capability of fitting three padlocks, offering additional safety during maintenance or shutdowns.

The starter is surface mountable, with compact overall dimensions of 240 mm length, 160 mm width, and 160 mm depth. It complies with IEC/EN 60529, DIN 43660, and EN 50262 standards, ensuring electrical safety and operational reliability.

This Eaton XDP series starter is constructed from standard components, facilitating easy maintenance and long operating life. It is equipped with metric knockouts for neat wiring and complies with IEE regulations 16th edition on isolation and switching.

Direct-On-Line starters are commonly used for starting 3-phase induction motors in industrial environments, frequently employed for conveyor belts, compressors, and small water pumps due to their simple operation and low temperature rise during motor start-up.

All starters in this series are wired to accept Eaton overload relays (available separately), providing critical overload protection for motors during operation. Constructed from glass fibre reinforced polycarbonate casing for durability and insulation.

Includes AC-3 rated triple pole contactor and triple pole switch disconnector. On/off pushbuttons and isolator with safety padlock provisions. Surface mount type with compact dimensions 240 mm x 160 mm x 160 mm. Complies with IEC/EN 60529, DIN 43660 standards.

Suitable for conveyors, compressors, and water pumps industrial applications. Supports Eaton overload relays for motor protection.
