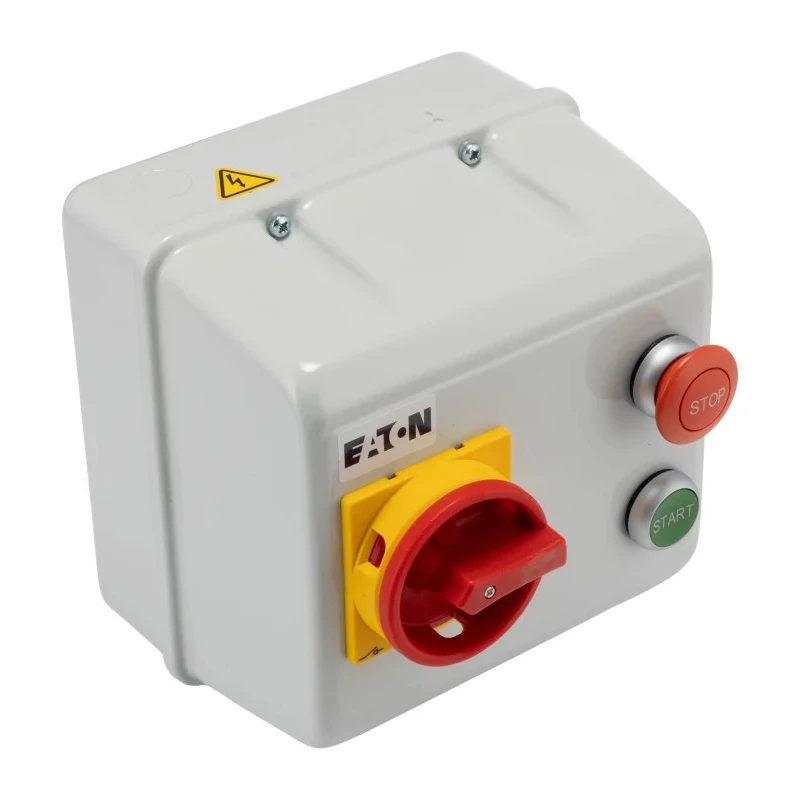

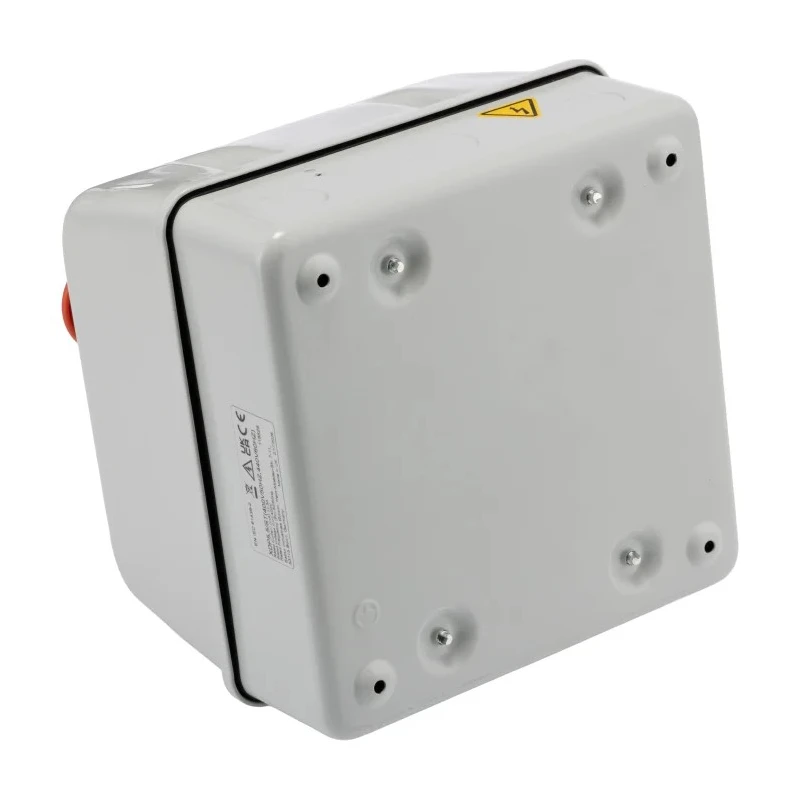

Eaton DOL Starter 5.5 kW 3 Phase Surface Mount IP55 Enclosure Model 118529 XDP5,5/ST(400V50HZ,440V60HZ)

The Eaton 118529 XDP5,5/ST(400V50HZ,440V60HZ) model is a high-quality DOL (Direct-On-Line) Starter designed for driving three-phase motors with a power rating of 5.5 kW at 400 V AC. This starter features a robust IP55 rated sheet steel enclosure providing superior protection against dust and water ingress, making it suitable for demanding industrial environments including manufacturing plants, HVAC systems, and electrical automation setups.

This starter assembly comprises a triple pole contactor and a switch disconnector both AC-3 rated with IP20 terminal protection, ensuring reliable switching performance and safety. The switch disconnector can be secured with up to three padlocks for enhanced operator safety. The control interface includes a mushroom-head 'Stop' pushbutton and a flush 'Start' pushbutton, both rated IP65 for protection against dust and water ingress, ensuring durability in harsh conditions.

Built to comply with international standards IEC 943-3 for isolators, IEC 947-5-1 for control circuit components, and IEC 947-4-1 for contactors, this Eaton starter is engineered for dependable operation and compliance with electrical regulations. The enclosure is pre-wired to accept Eaton Z00 or ZB thermal overload relays (sold separately), which feature single phasing sensitivity for motor protection. The product is surface mount type, allowing for straightforward installation on panels or walls.

The compact dimensions of 184 mm (length) x 184 mm (width) x 184 mm (depth) optimize space use in control panels. It is rated for use at a maximum voltage of 400 V AC and designed for operation in three-phase electrical systems. The modular design enables customized configurations suitable for various industrial automation and electrical control applications.

IP55 rated steel enclosure for robust protection. Triple pole AC-3 rated components ensure safe motor starting and stopping. Isolator switch with provisions for three padlocks enhances safety compliance. IP65 rated start and stop pushbuttons provide durable control interface.

Compliant with IEC 943-3, IEC 947-5-1, IEC 947-4-1 standards. Supports Eaton thermal overload relays (Z00 or ZB models) for motor protection. Compact dimensions (184 x 184 x 184 mm) ideal for panel mounting. Designed for 5.5 kW motor power at 400 V AC, 3-phase supply.

Surface mount installation type for convenience.

This Eaton DOL Starter is suitable for use in industrial motor control systems, electrical automation installations, HVAC units, and manufacturing equipment requiring reliable and compliant direct-on-line starting solutions. The robust build and international standards compliance ensure long-term dependable operation and ease of maintenance.
