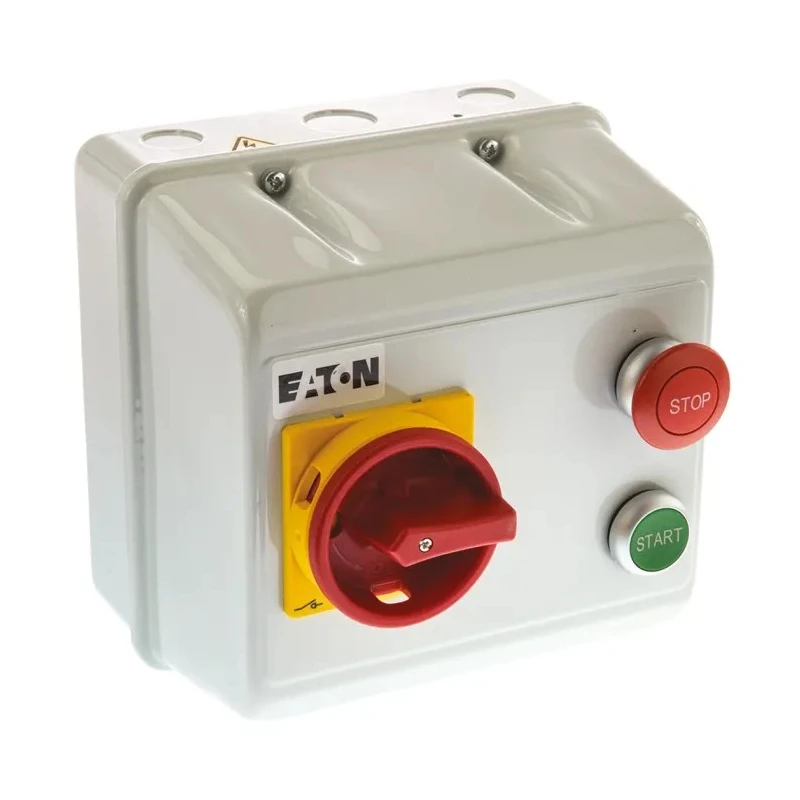

Eaton XDP DOL Starter, Surface Mount, IP55, 7.5 kW, 3 Phase, 400V AC, 3 Pole, Steel 118533 XDP7,5/ST(400V50HZ,440V60HZ)

Eaton 118533 XDP7,5/ST(400V50HZ,440V60HZ) DOL Starter is a rugged, industrial-level direct-on-line starter designed for 3 phase electric motors with a power rating of 7.5 kW operating at 400V AC. This product features a surface mount IP55 rated sheet steel enclosure that offers excellent protection against dust, water, and mechanical damage, suitable for demanding industrial environments.

The starter assembly comprises an AC-3 rated triple pole contactor along with a triple pole AC-3 rated switch disconnector, both equipped with IP20 terminals to ensure safe and reliable electrical connections. The switch disconnector is fitted with an isolator compliant with IEC 943-3 standards and has provisions for up to three padlocks enabling secure isolation during maintenance and enhancing user safety.

For operational control, it includes IP65 rated mushroom head 'Stop' pushbutton and a flush 'Start' pushbutton, providing ease of use and emergency shutdown capabilities. The device is pre-wired to accept Eaton Z00 or ZB thermal overload relays, which provide single phasing sensitivity in compliance with IEC 947-4 standards; however, these overload relays are not supplied with the unit and should be sourced separately as per application requirements.

The compact dimensions of 184mm in length, width, and depth make it suitable for panel mounting with minimal space usage. This DOL starter complies with IEE 16th Edition regulations related to isolation and switching, assuring adherence to recognized safety norms. Its robust construction and international standards certifications make it ideal for industrial, manufacturing, automation, HVAC, and electrical control applications that demand reliable motor starting solutions.

FLC ratings are quoted as maximum; appropriate overload ratings can be selected depending on motor full load current and system design. The enclosure features multiple knockouts (4x20mm and 2x25mm) allowing flexible wiring options. Manufactured in the United Kingdom, this Eaton XDP series starter combines proven reliability and high performance for demanding industrial motor control.

The starter is designed for 400V AC operation with 3 poles and 3 phases. Constructed with an IP55 sheet steel enclosure providing protection against dust and water ingress. Includes an AC-3 rated triple pole contactor and a triple pole AC-3 rated switch disconnector with IP20 terminals.

Enclosure features an isolator complying with IEC 943-3 standards, with provision for up to 3 padlocks for safety lockdown. Equipped with IP65 rated start and stop pushbuttons with mushroom head emergency stop. Prewired to accept Eaton Z00 or ZB thermal overload relays with single phasing sensitivity.

Overall dimensions are 184mm length, width, and depth for compact installation. Designed to meet IEE 16th Edition regulations on isolation and switching. Country of origin is United Kingdom supporting high manufacturing standards.

Overload relay is not included and must be ordered separately. Explore more Eaton Motor Starters and electrical automation components on EnvMart for comprehensive industrial control solutions.
