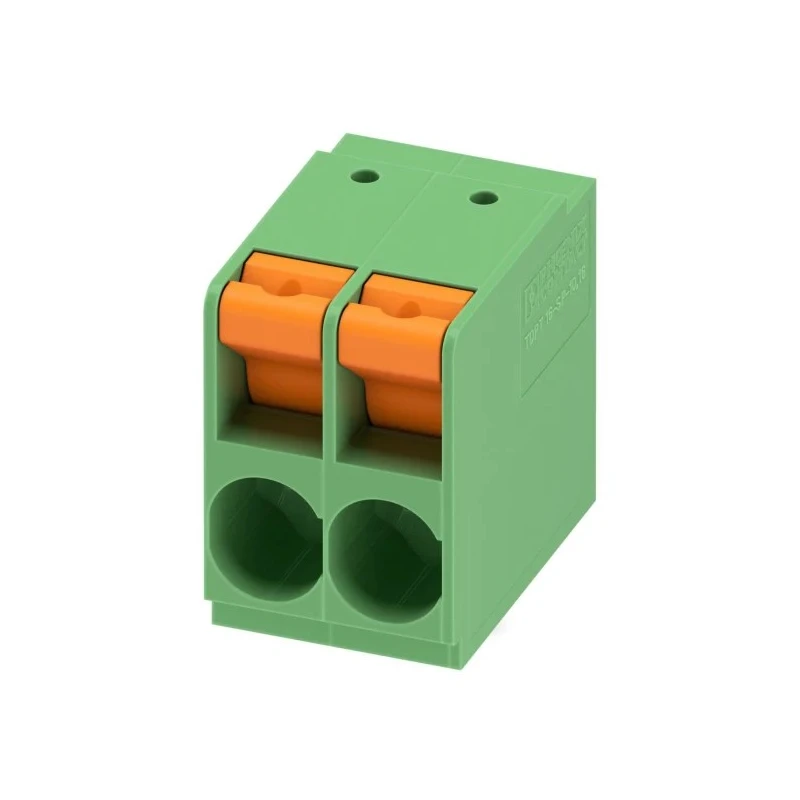

Phoenix Contact TDPT 16/ 2-SP-10.16-ZB Series PCB Terminal Block, 2-Contact, 10.16 mm Pitch, Wave Soldering Mount, 1 1017531
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 76A |
| Length | 31.9mm |
| Model | 1017531 |
| Depth | 31.2mm |
| Width | 17.74mm |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | TDPT 16/ 2-SP-10.16-ZB |
| Number of Rows | 1 |
| Pitch | 10.16mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 2 |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 16mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 6AWG |
| Wire Connection Method | Screw |
| PCB Terminal block, nominal current | 76 A, nom. voltage: 1000 V, pitch: 10.16 mm, number of positions: 2, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green |
Key Features
- Supports a nominal current of 76 A for high-power applications.
- Constructed with durable polyamide housing for reliable insulation.
- Screw connection method with tension sleeve ensures stable contact.
- Single row configuration with 1 row and straight orientation.
- Compatible with wire sizes ranging from 0.75 mm² to 16 mm².
- Rated for voltage up to 1 kV to meet industrial standards.
- Color coded in green for quick identification.
- Certified WEEE and RoHS compliant for environmental safety.
Product Description
Phoenix Contact 1017531 PCB Terminal Block is an advanced electronic component designed for secure and efficient circuit board connections in industrial and commercial electronics. This model features 2 contact positions with a 10.16 mm pitch, optimized for wave soldering mount technology ensuring strong mechanical and electrical bond to the PCB.
It supports a substantial nominal current rating of 76 A and can safely operate at voltages up to 1 kV, making it suitable for demanding applications such as industrial automation, manufacturing electronics interfaces, and power distribution systems. The terminal block uses a screw connection method with a tension sleeve, providing high contact reliability and easy installation without tools.
The housing is made from high-quality polyamide, delivering excellent insulation properties and mechanical robustness under various environmental conditions. The product's single-row design and straight orientation simplify PCB layout and wiring. Wire size compatibility ranges from 0.75 mm² to 16 mm², covering a broad spectrum of conductor options from 18 AWG to 6 AWG.
Its green color coding enhances visual identification during assembly and maintenance. This terminal block adheres to WEEE and RoHS directives, ensuring compliance with environmental standards and responsible manufacturing.
Supports a nominal current of 76 A for high-power applications. Durable polyamide housing ensures excellent insulation and longevity. Screw connection with tension sleeve guarantees long-term stable contact. Single-row, straight orientation design for streamlined PCB layout.
Compatible with wire sizes from 0.75 mm² (18 AWG) to 16 mm² (6 AWG). Voltage rating of 1 kV suitable for demanding electrical environments. Green color coding simplifies identification. WEEE and RoHS compliant to meet environmental regulations.
This Phoenix Contact PCB Terminal Block is ideal for various industrial, manufacturing, and electronic assembly applications where reliable, high-current connections are critical. Explore more Phoenix Contact components and industrial electrical connectors on EnvMart to enhance your project quality and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a nominal current rating of 76 A, making it suitable for high-power applications.
The terminal block is rated for a maximum voltage of 1 kV, suitable for demanding electrical environments.
It is compatible with wire sizes ranging from 0.75 mm² to 16 mm², equivalent to 18 AWG to 6 AWG.
This model features a wave soldering mount, ensuring a strong mechanical and electrical bond to the PCB.
The housing is constructed from polyamide, providing excellent insulation properties.
It has 2 contact positions, designed for efficient circuit board connections.
The pitch size is 10.16 mm, optimized for its design and installation.
It features a straight orientation, which simplifies PCB layout and wiring.
Yes, it is certified WEEE and RoHS compliant, ensuring adherence to environmental regulations.
It utilizes a screw connection method with a tension sleeve, ensuring stable contact.
The dimensions are 31.9 mm in length, 31.2 mm in depth, and 17.74 mm in width.
This model is part of the TDPT 16/ 2-SP-10.16-ZB series, designed for specific applications in electronics.
