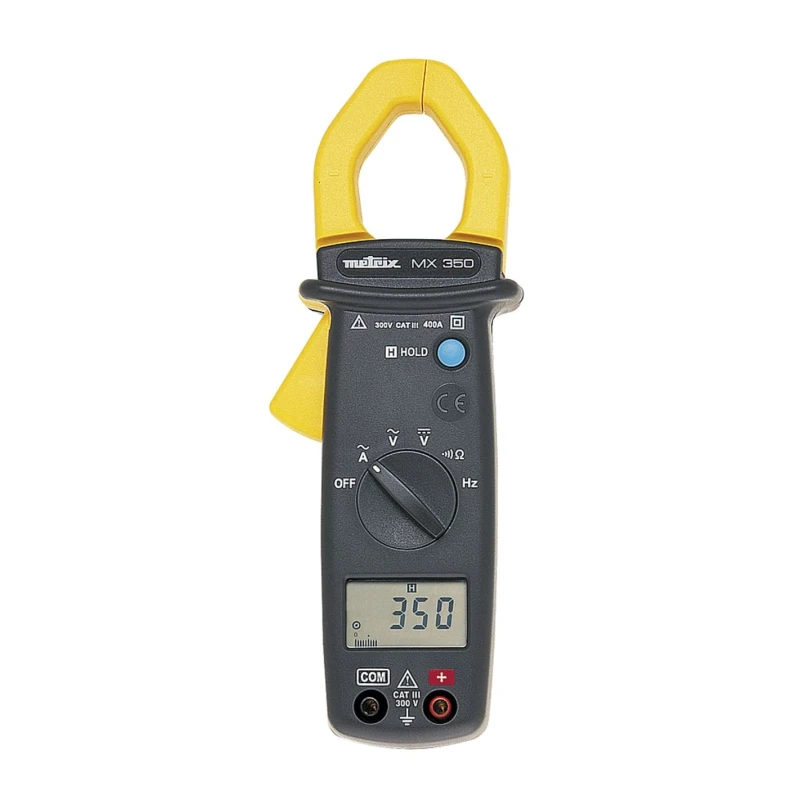

Metrix Clamp Meter with 400 A AC/DC Current, 600 V AC/DC Voltage, CAT III Safety Level MX0350-Z
Specifications
| Country of Origin | Japan |
|---|---|
| Display Type | LCD |
| Brand | Metrix |
| Battery Life | 200h |
| Battery type | AAA |
| Height | 28mm |
| Length | 193mm |
| Model | MX0350-Z |
| Gross Weight | 243g |
| Width | 50mm |
| Maximum Operating Temperature | 40°C |
| AC Voltage Resolution | 10mV ac |
| Minimum Operating Temperature | 0°C |
| DC Voltage Resolution | 10 mV dc |
| Resistance Measurement Accuracy | ±1 % rdg + 2 Digits |
| AC Current Accuracy | ±1.9 % rdg + 5 Digits |
| Resistance Resolution | 0.1Ω |
| AC Current Resolution | 10mA |
| Maximum Jaw Opening | 26mm |
| Standards/Approvals | RoHS |
| Functions Measured | AC Current, Resistance, DC Voltage, AC Voltage |
| Maximum DC Voltage Measurement | 600V dc |
| Maximum DC Current Measurement | 400A |
| Maximum AC Voltage Measurement | 600V ac |
| Safety Category Level | CAT III |
| Safety Category Voltage | 600V |
| Maximum Conductor Size | 26mm |
| Clamp Meter Type | AC Current Clamp Meter |
| Combines different functions | multimeter, voltage and AC current measurement, ohmmeter and continuity testing |
Key Features
- Measures AC current, DC voltage, AC voltage, and resistance with true RMS accuracy.
- Safety rated to CAT III 600 V for enhanced user protection.
- Features a non-contact voltage detector for added convenience and safety.
- Provides a 6000-count LCD display with a hold function for recorded readings.
- Operates within 0°C to 40°C ambient temperature range.
- Compact design with 26 mm maximum jaw opening for easy conductor access.
- Powered by AAA batteries delivering up to 200 hours of continuous use.
- Includes functions for continuity testing and ohmmeter measurements.
Product Description
Metrix MX0350-Z Clamp Meter is a high-precision electrical test instrument designed for professional use in industrial, laboratory, HVAC, and commercial environments. It measures AC current up to 400 amperes and both AC and DC voltage up to 600 volts, complying with IEC 61010-1 and IEC 61010-2-032 safety standards at CAT III 600 V rating. Its true RMS measurement capability ensures accurate results even with non-linear loads.
The device features a 26 mm jaw opening for clamping around conductors and supports resistance measurements with 0.1 ohm resolution. Its backlit 6000-count LCD display includes a hold function to retain difficult-to-read values, enabling easier data capture in low-light and hard-to-access locations.
This clamp meter operates within a temperature range of 0 to 40 degrees Celsius, suitable for typical industrial environments. It comes powered by AAA batteries that provide approximately 200 hours of runtime, and the device is RoHS compliant ensuring environmental safety.
Measures AC current, DC voltage, resistance, and AC voltage with high accuracy. Incorporates a non-contact voltage detector to safely detect live conductors without direct contact. Compact and ergonomic handheld design facilitates ease of use during electrical inspections.
Includes continuity testing and ohmmeter functionality for comprehensive diagnostics. Safety certified to CAT III 600 V rating for use on distribution-level circuits. RoHS compliant ensuring adherence to environmental hazardous substances regulations.
Lightweight at 243 grams and compact dimensions suitable for portable field testing.
Metrix MX0350-Z Clamp Meter is ideal for electricians, HVAC technicians, laboratory professionals, and maintenance engineers requiring reliable, versatile current and voltage measurement tools. Its robust design and extensive safety certifications make it suitable for various electrical testing and troubleshooting tasks in industrial, commercial, and laboratory settings.
Explore more advanced measuring and testing instruments in the EnvMart Clamp Meters category for quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Metrix MX0350-Z can measure AC current up to 400 amperes.
This clamp meter can measure DC voltage up to a maximum of 600 volts.
It is safety certified to CAT III 600 V, making it suitable for use on distribution-level circuits.
The resolution for AC current measurements is 10 mA.
It features a backlit 6000-count LCD display with a hold function for retaining difficult-to-read values.
The operating temperature range is from 0°C to 40°C.
It is powered by AAA batteries, which provide approximately 200 hours of continuous use.
The maximum jaw opening is 26 mm, allowing for easy access around conductors.
It can measure AC current, DC voltage, AC voltage, resistance, and includes continuity testing and ohmmeter functionality.
The clamp meter weighs 243 grams, making it lightweight and portable for field testing.
The resistance measurement accuracy is ±1 % reading plus 2 digits.
Yes, it is RoHS compliant, ensuring adherence to regulations regarding hazardous substances.
